15 Inch TFT LCD Display 1024×768 LVDS High Brightness 1000nits LCD Display For Automotive

15 Inch Automotive Display Overview

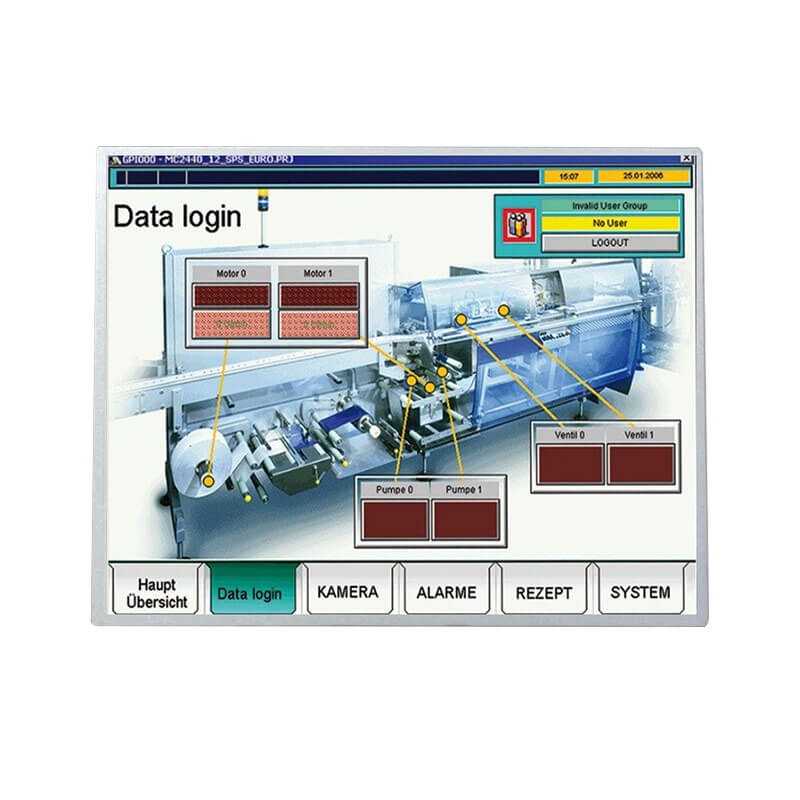

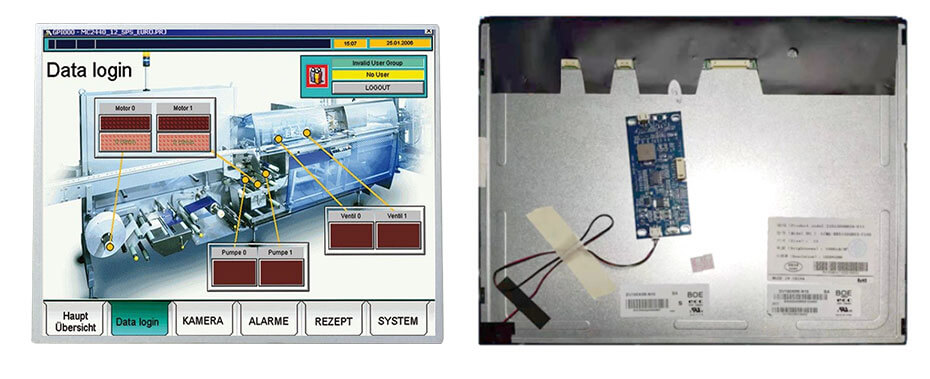

ET150WX01-RX is a 15-inch diagonal TFT-LCD display product with a transmissive display mode. ET150WX01-RX supports a resolution of 1024×768 with a standard aspect ratio, delivering clear and stable image performance, and utilizes an LVDS interface for signal transmission. It features an active area of 304.1(W)×228.1(H) mm and an outline size of 374(W)×231.3(H) mm. The display provides a high brightness of 1000 cd/m², suitable for automotive and high ambient light environments, and offers viewing angles of 80/80/70/70 (L/R/U/D). It operates within a temperature range of -20 to 70°C and can be stored at -30 to 80°C. This model does not include a touch function.

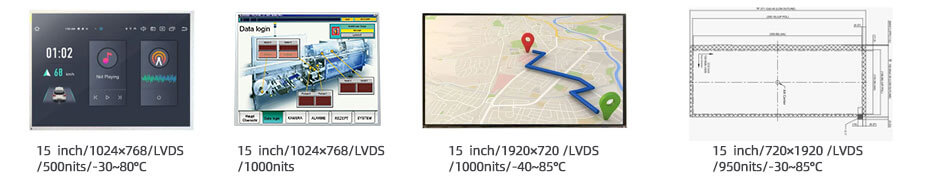

More 15 Inch Automotive Display For Reference
G150XNE-L01 (1024×768, LVDS, VA, 500nits, -30~80°C, 326.5×253.5mm)
ET150WX01-RX (1024×768, LVDS, TN, 1000nits, -20~70°C, 37.4×231.3mm)
TX38D203VM0BAA (1920×720, LVDS, IPS, 1000nits, -40~85°C, 374.5×154.5mm)
COG-VLSZT173-01 (720×1920, LVDS, IPS, 950nits, -30~85°C, 150.95×371.12mm)

Automotive Display Solution
