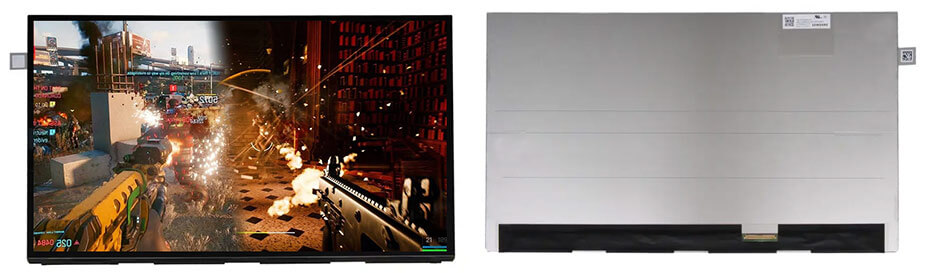

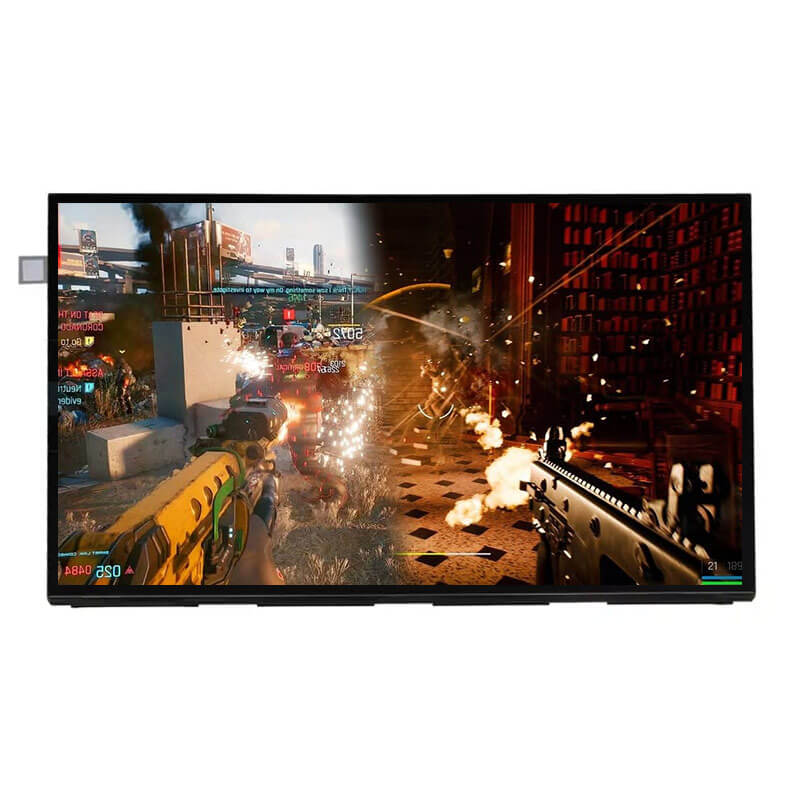

ATNA56AC02 is a 15.6 inch diagonal AM-OLED display screen product, it self emiting, without touch screen. ATNA56AC02 supports display 2880(RGB)×1620 with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.218(W)×193.622(H) mm, outline size of 347.42(W)×202.32(H)×1.44(D) mm, with surface treament of Glare (Haze 0%), net weight of 200g (Typ.), shape stype of Slim (PCBA Bent, T≤3.0mm). ATNA56AC02 can provides 400 cd/m² display brightness 100000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 1 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 10-bit gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (DCI-P3). This product emiting itself . ATNA56AC02 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3/10V (Typ.)(VDD/VBAT). It's typical vertical frame rate (Fv) is 120Hz.
More 15.6 Inch Game Console Display For Reference
G156HCE-E01 (1920×1080, eDP, 450nits, 0~60°C, 351.84×208.88mm)
NV156FHM-N4N (1920×1080, eDP, 300nits, 0~50°C, 350.66×216.25mm)
B156HAN12.1 (1920×1080, eDP, 300nits, 0~50°C, 350.66×216.25mm)
LQ156M1JW06 (1920×1080, eDP, 300nits, 0~50°C, 350.66×215.54mm)
G156HCE-LH1 (1920×1080, LVDS, 1200nits, -30~80°C, 363.8×215.9mm)
LQ156T3LW05 (1366×768, LVDS, 400nits, -20~70°C, 363.8×215.9mm)
N156KME-GNA (2560×1440, eDP, 300nits, 0~50°C, 350.66×216.14mm)
NE156QHM-NY4 (2560×1440, eDP, 300nits, 0~50°C, 350.66×214.72mm)
ATNA56AC02 (2880×1620, eDP, 400nits, -20~70°C, 347.42×202.32mm)
High Resolution
-Supports HD, FHD, QHD, or 4K visuals for sharp image quality.
Fast Refresh Rate
-60Hz, 120Hz, or higher for smoother gameplay and motion clarity.
Low Latency & Fast Response Time
-Reduces motion blur and input lag during fast-action gaming.
Wide Color Gamut
-Delivers vibrant and realistic colors.
High Brightness & Contrast Ratio
-Enhances visibility and image depth.
HDR Capability
-Improves highlights, shadows, and overall visual realism.
Wide Viewing Angle
-Maintains image quality from different viewing positions.
Touchscreen Support (Optional)
-Used in handheld or portable gaming consoles.
Power-Efficient Design
-Optimized for lower power consumption in portable devices.
Compact & Lightweight Structure
-Suitable for handheld gaming applications.
Durable Display Surface
-Scratch-resistant and reliable for long-term use.
Anti-Glare Technology
-Improves screen visibility under bright environments.
Multiple Interface Compatibility
-Supports HDMI, MIPI, LVDS, eDP, and RGB interfaces.
Customizable Sizes
-Available in different display sizes for various gaming devices.
Handheld Gaming Consoles
-Portable gaming devices with compact high-resolution displays.
Home Video Game Consoles
-Connected to TVs or integrated gaming systems for immersive gameplay.
Retro Gaming Devices
-Classic arcade-style and nostalgic gaming consoles.
Portable Emulator Consoles
-Multi-platform gaming systems for retro and modern games.
Arcade Gaming Machines
-Commercial gaming cabinets and entertainment systems.
Cloud Gaming Devices
-Streaming-based gaming terminals and smart gaming screens.
VR & AR Gaming Equipment
-High-refresh displays for virtual and augmented reality gaming.
Gaming Tablets
-Touch-enabled portable gaming and multimedia devices.
Educational Gaming Systems
-Interactive learning consoles for children and students.
E-sports & Competitive Gaming Devices
-High-performance displays designed for fast response and low latency.
Car Entertainment Gaming Systems
-Rear-seat gaming and infotainment displays in vehicles.
Smart TV Gaming Platforms
-Integrated gaming interfaces on smart televisions.
DIY Gaming Projects
-Custom-built gaming consoles and Raspberry Pi gaming systems.
