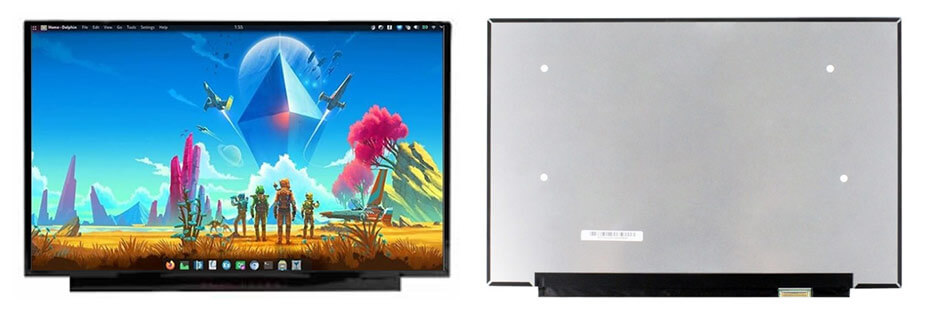

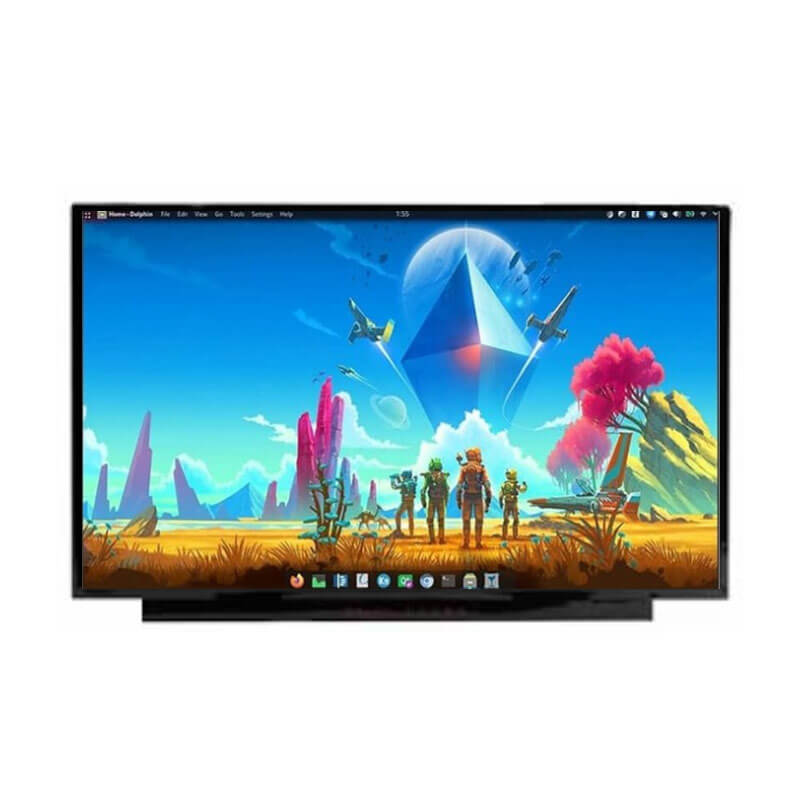

NE140QDM-NX2 is a 14.0 inch diagonal Oxide TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. NE140QDM-NX2 supports display 2560(RGB)×1600 (WQXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 301.824(W)×188.64(H) mm, outline size of 306.824(W)×205.84(H)×2.4(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 240g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a ADS, Normally Black, Transmissive LCM product, NE140QDM-NX2 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 23 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 10S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NE140QDM-NX2 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 120Hz.
More 14 Inch Game Console Display For Reference
LM140LF1F02 (1920×1080, eDP, 300nits, 0~50°C, 315.81×197.57mm)
NE140QDM-NX2 (2560×1600, eDP, 300nits, 0~50°C, 306.824×205.84mm)
B140QAN03.H (2560×1600, eDP, 500nits, 0~50°C, 307.294×199.246mm)
NE140WUM-NY1 (1920×1200, eDP, 400nits, 0~50°C, 306.59×198.5mm)
MNE007ZA1-5 (2880×1800, eDP, 400nits, 0~50°C, 306.54×204.46mm)
High Resolution
-Supports HD, FHD, QHD, or 4K visuals for sharp image quality.
Fast Refresh Rate
-60Hz, 120Hz, or higher for smoother gameplay and motion clarity.
Low Latency & Fast Response Time
-Reduces motion blur and input lag during fast-action gaming.
Wide Color Gamut
-Delivers vibrant and realistic colors.
High Brightness & Contrast Ratio
-Enhances visibility and image depth.
HDR Capability
-Improves highlights, shadows, and overall visual realism.
Wide Viewing Angle
-Maintains image quality from different viewing positions.
Touchscreen Support (Optional)
-Used in handheld or portable gaming consoles.
Power-Efficient Design
-Optimized for lower power consumption in portable devices.
Compact & Lightweight Structure
-Suitable for handheld gaming applications.
Durable Display Surface
-Scratch-resistant and reliable for long-term use.
Anti-Glare Technology
-Improves screen visibility under bright environments.
Multiple Interface Compatibility
-Supports HDMI, MIPI, LVDS, eDP, and RGB interfaces.
Customizable Sizes
-Available in different display sizes for various gaming devices.
Handheld Gaming Consoles
-Portable gaming devices with compact high-resolution displays.
Home Video Game Consoles
-Connected to TVs or integrated gaming systems for immersive gameplay.
Retro Gaming Devices
-Classic arcade-style and nostalgic gaming consoles.
Portable Emulator Consoles
-Multi-platform gaming systems for retro and modern games.
Arcade Gaming Machines
-Commercial gaming cabinets and entertainment systems.
Cloud Gaming Devices
-Streaming-based gaming terminals and smart gaming screens.
VR & AR Gaming Equipment
-High-refresh displays for virtual and augmented reality gaming.
Gaming Tablets
-Touch-enabled portable gaming and multimedia devices.
Educational Gaming Systems
-Interactive learning consoles for children and students.
E-sports & Competitive Gaming Devices
-High-performance displays designed for fast response and low latency.
Car Entertainment Gaming Systems
-Rear-seat gaming and infotainment displays in vehicles.
Smart TV Gaming Platforms
-Integrated gaming interfaces on smart televisions.
DIY Gaming Projects
-Custom-built gaming consoles and Raspberry Pi gaming systems.
