14 Inch TFT LCD Display 1920×1080 LVDS Wide Temperature LCD Display For Automotive

14 Inch Automotive Display Overview

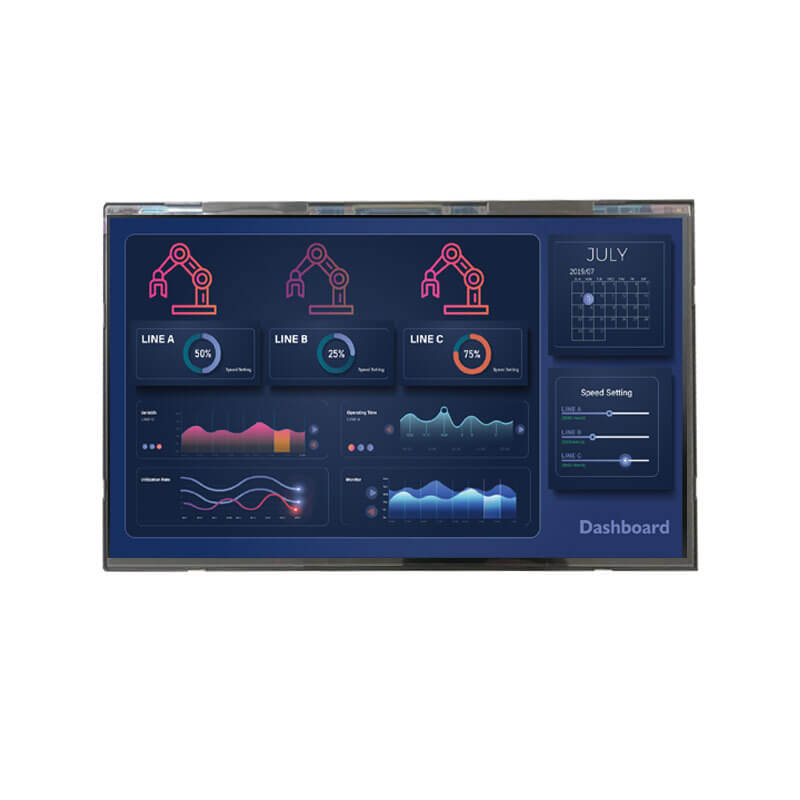

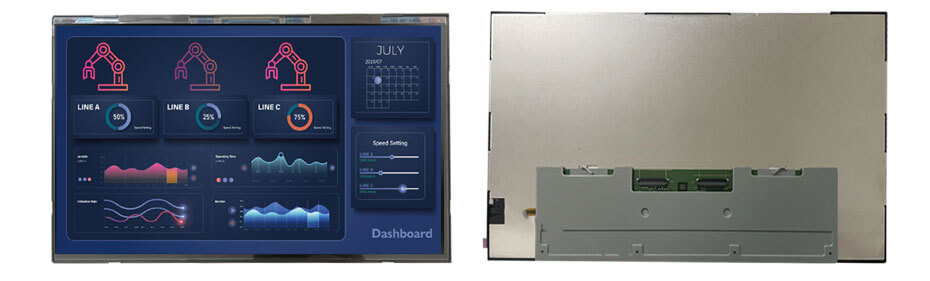

LS140M5LX01 is a 14.0 inch diagonal LTPS TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touchscreen In-Cell Touch. LS140M5LX01 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe.It features active area of 309.888(W)×174.312(H) mm, outline size of 321.9(W)×192.9(H)×11.9(D) mm, with surface treament of Hard coating, net weight of 695±70g. As a New Mode2, Normally Black, Transmissive LCM product, LS140M5LX01 can provides 440 cd/m² display brightness 1400:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥100) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 10S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. LS140M5LX01 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 80 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
