12.8 Inch TFT LCD Display 1920×1080 LVDS High Brightness 800nits Wide Temperature LCD Display For Automotive

12.8 Inch Automotive Display Overview

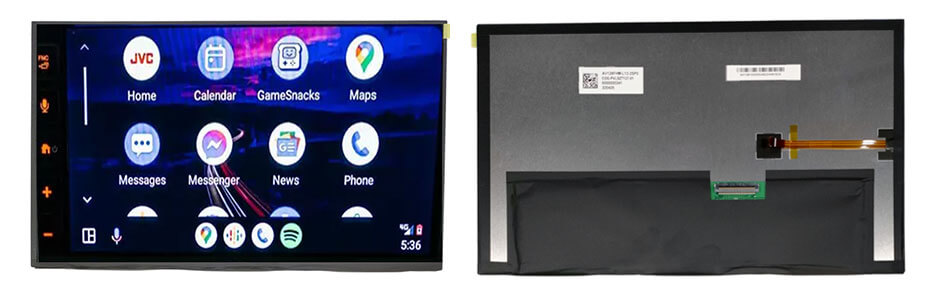

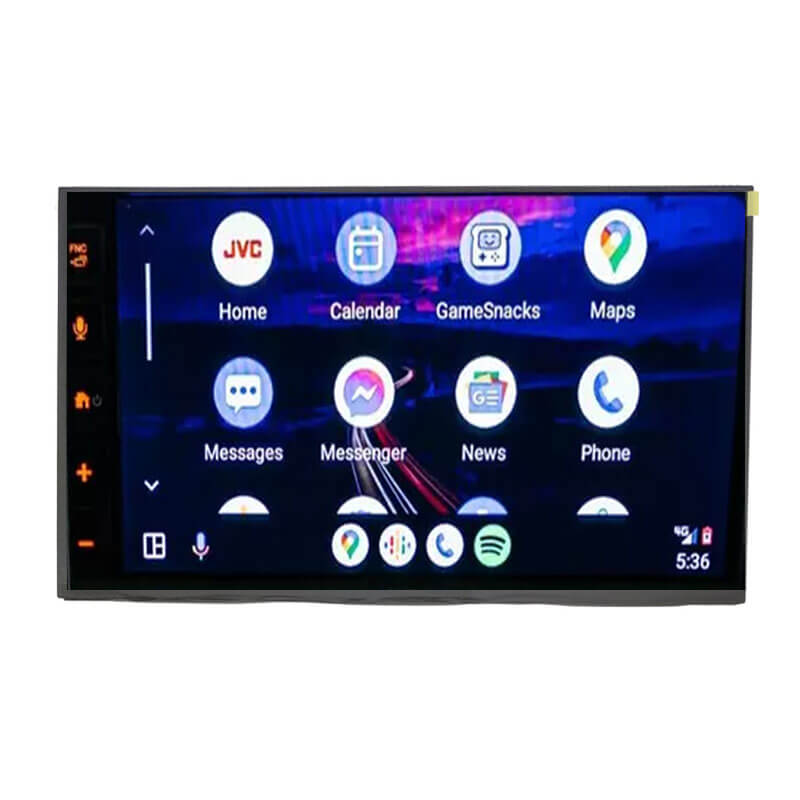

COG-PVLSZT137-01 (Alias: AV128Z7M-L13) is a 12.8 inch diagonal a-Si TFT-LCD display screen, with an incorporated WLED lighting system, without backlight driver, without touch screen.COG-PVLSZT137-01 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 283.392(W)×159.408(H) mm, outline size of 292.892(W)×173.358(H)×12.3(D) mm. As a ADS, Normally Black, Transmissive LCM product, COG-PVLSZT137-01 can provides 800 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 75% (NTSC). This product adopted 9S4P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. COG-PVLSZT137-01 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 50 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

More 12.8 Inch Automotive Display For Reference

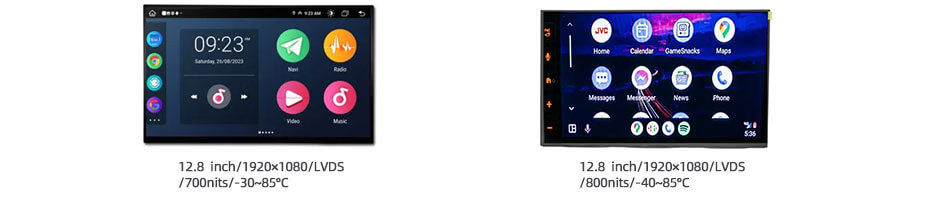

HSD128JUW1-A10 (1920×1080, LVDS, IPS, 700nits, -30~85°C, 294.4×175mm)
COG-PVLSZT137-01 (1920×1080, LVDS, IPS, 800nits, -40~85°C, 292.892×173.358mm)
