14.6 Inch TFT LCD Display 1920×1080 LVDS High Brightness 650nits Wide Temperature LCD Display For Automotive

14.6 Inch Automotive Display Overview

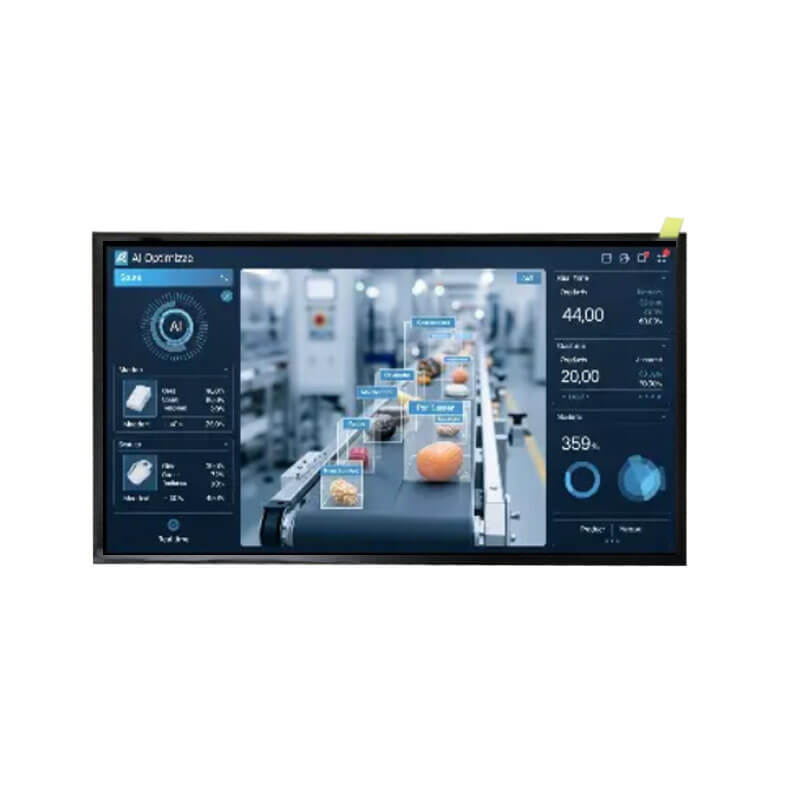

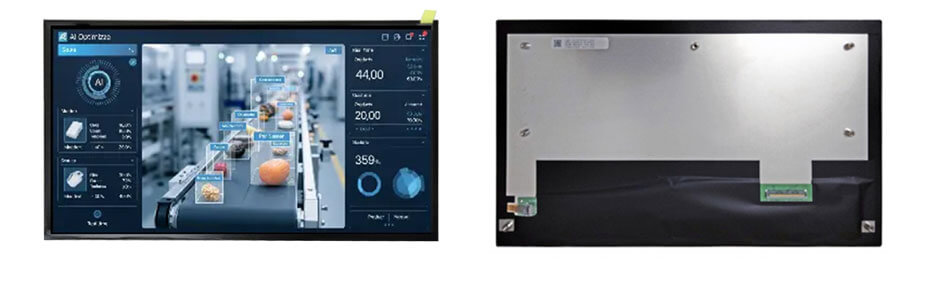

AV146FHM-N10 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 323.136(W)×181.764(H) mm, outline size of 336.249(W)×198.46(H)×12.92(D) mm, net weight of 703g (Max.). As a ADS, Normally Black, Transmissive LCM product, AV146FHM-N10 can provides 650 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 8S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. AV146FHM-N10 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 60 pins Connector with power supply voltage of 3.3/5.0V (Typ.)(VCC/AVDD). It's typical vertical frame rate (Fv) is 60Hz.

More 14.6 Inch Automotive Display For Reference

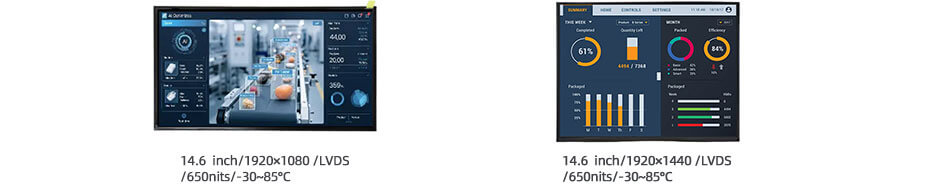

AV146FHM-N10 (1920×1080, LVDS, IPS, 650nits, -30~85°C, 336.249×198.46mm)
T146AW41 R0 (1920×1440, LVDS, IPS, 650nits, -30~85°C, 314.6×244.4mm)
