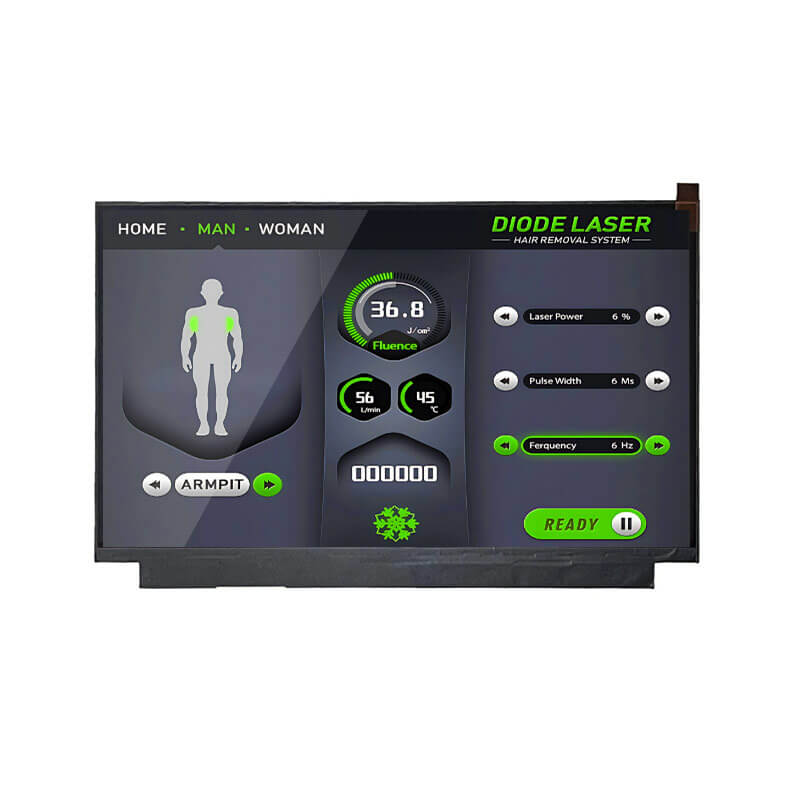

14 Inch 4K 3840x2160 LCD Display eDP IPS LCD Module For 3D Printer

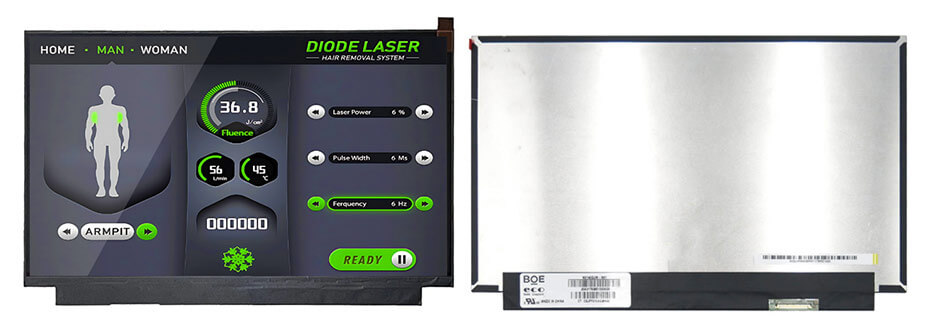

14 Inch 4k Display Overview
NV140QUM-N61 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe,it's pixel density is 315 PPI. As for mechanical detail, it features active area of 309.312(W)×173.988(H) mm, outline size of 315.01(W)×199.04(H)×2.4(D) mm, with surface treament of Antiglare (Haze 40%), net weight of 240g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a ADS, Normally Black, Transmissive LCM product, NV140QUM-N61 can provides 400 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 8S8P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NV140QUM-N61 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

14 Inch 4k Display Drawing

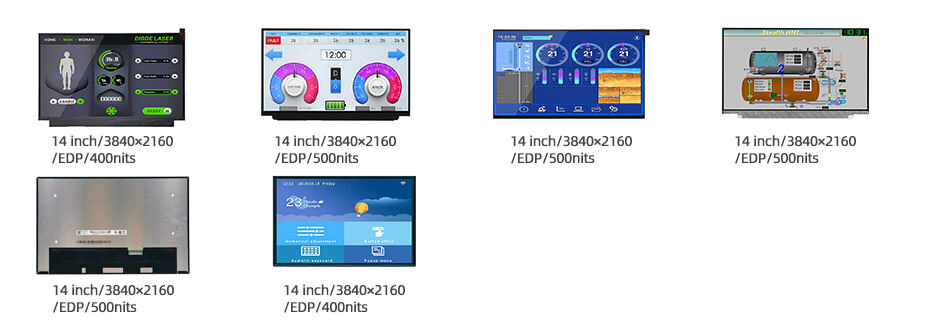

More 14 Inch 4k Display For Reference
NV140QUM-N61 (LCM, 3840x2160, eDP, 400nits, -20~60°C, 315.01x199.04mm)
NV140QUM-N53 (LCM, 3840x2160, eDP, 500nits, 0~50°C, 315.01x196.14mm)
NV140QUM-N54 (LCM, 3840x2160, eDP, 500nits, 0~50°C, 315.01x186.14mm)
NE140QUM-N61 (LCM, 3840x2160, eDP, 500nits, 0~50°C, 315.01x195.67mm)
B140ZAN02.1 (LCM, 3840x2160, eDP, 500nits, 0~50°C, 305.894x197.746mm)
ATNA40YN04-0 (OLED, 3840x2400, eDP, 400nits, -20~70°C, 305.02x196.24mm)
