14.6 Inch TFT LCD Display 1920×1440 LVDS High Brightness 650nits Wide Temperature LCD Display With In-Cell Touch For Automotive

14.6 Inch Automotive Display Overview

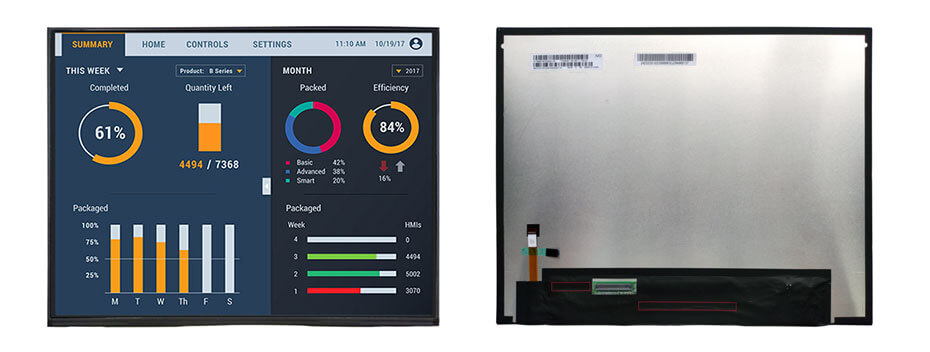

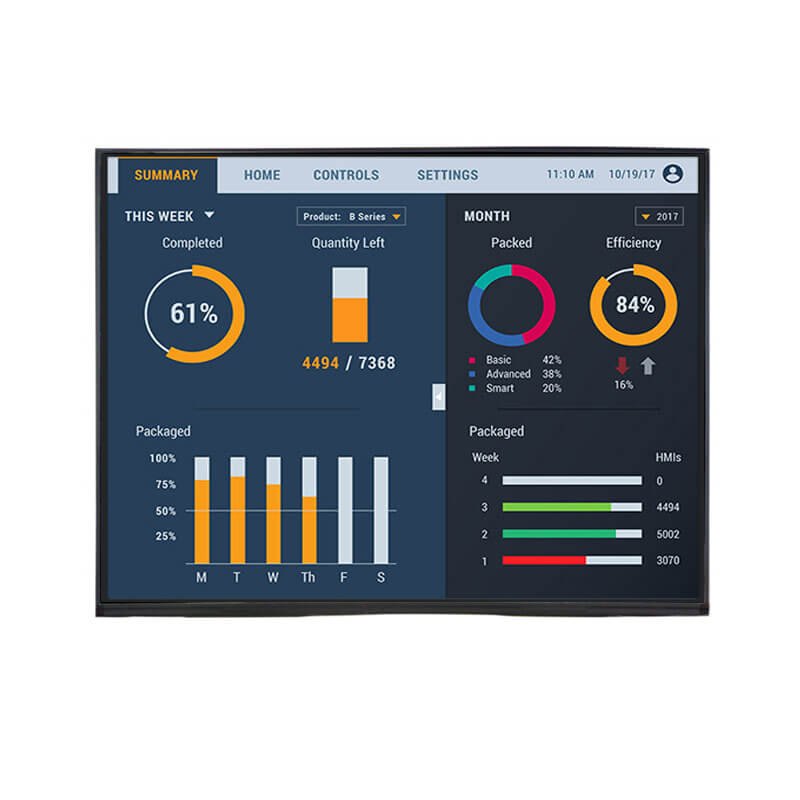

T146AW41 R0 is a 14.6 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touchscreen In-Cell Touch. T146AW41 R0 supports display 1920(RGB)×1440 with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 297.6(W)×223.2(H) mm, outline size of 314.6(W)×244.4(H)×10.14(D) mm, with surface treament of Anti Fingerprint + Antiglare, Hard coating (3H), Reflection 1.5% (Max.), net weight of 1.04 Kgs. As a IPS, Normally Black, Transmissive LCM product, T146AW41 R0 can provides 650 cd/m² display brightness 1500:1 transimissive contrast ratio, best view direction on Symmetry , and response time of 25 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 87% (DCI-P3). This product adopted 5 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. T146AW41 R0 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 50 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

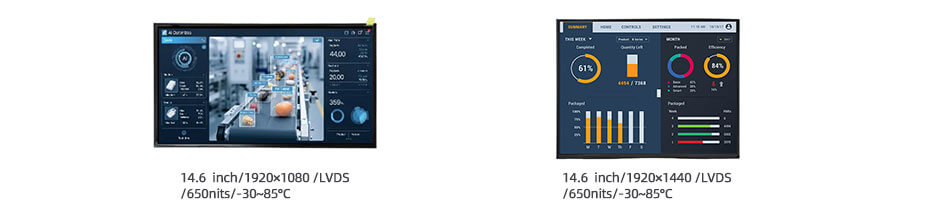

More 14.6 Inch Automotive Display For Reference
AV146FHM-N10 (1920×1080, LVDS, IPS, 650nits, -30~85°C, 336.249×198.46mm)
T146AW41 R0 (1920×1440, LVDS, IPS, 650nits, -30~85°C, 314.6×244.4mm)
