12.7 Inch TFT LCD Display 2240×182 LVDS High Brightness 800nits Wide Temperature LCD Display For Automotive

12.3 Inch Automotive Display Overview

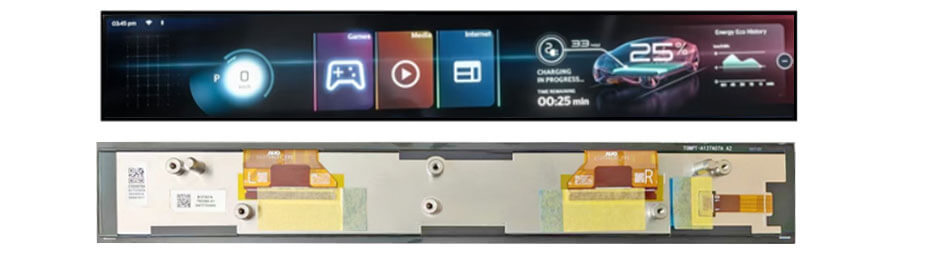

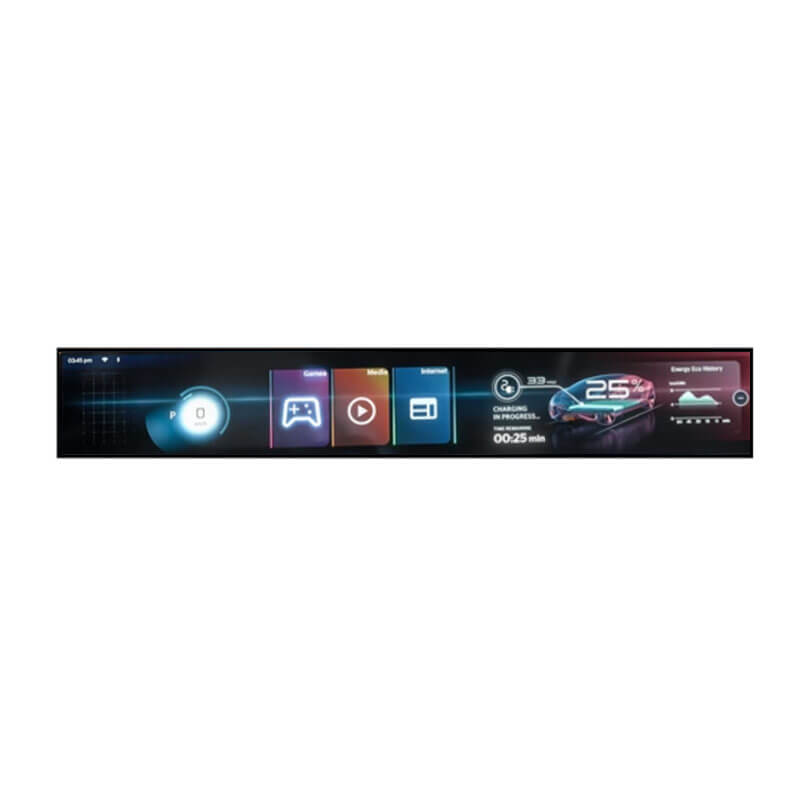

C127UAC01.0 is a 12.7 inch diagonal a-Si TFT-LCD display screen product from AUO, with a built-in WLED backlight, without backlight driver, without touch screen. C127UAC01.0 supports display 2240×182(RGB) with aspect ratio of >3:1 (W:H), whose pixels are arranged in RGB Horizontal Stripe. As for mechanical detail, it features active area of 320.544(W)×26.0442(H) mm, outline size of 339.54(W)×49.84(H) mm, net weight of 182g (Typ.). As a AHVA, Normally Black, Transmissive LCM product, C127UAC01.0 can provides 800 cd/m² display brightness 1100:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 20 (Max.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 10S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. C127UAC01.0 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 160 pins Connector with power supply voltage of 3.3/6.5/6.5V (Typ.)(VCC/VSP/VSN). It's typical vertical frame rate (Fv) is 60Hz.
