12.3 Inch TFT LCD Display 1920×686 LVDS High Brightness 1000nits Wide Temperature LCD Display For Automotive

12.3 Inch Automotive Display Overview

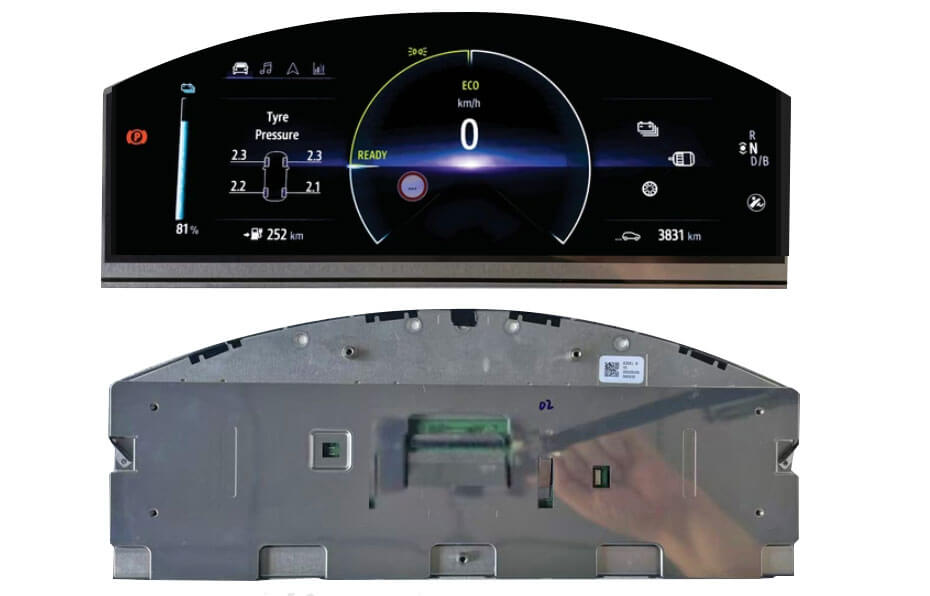

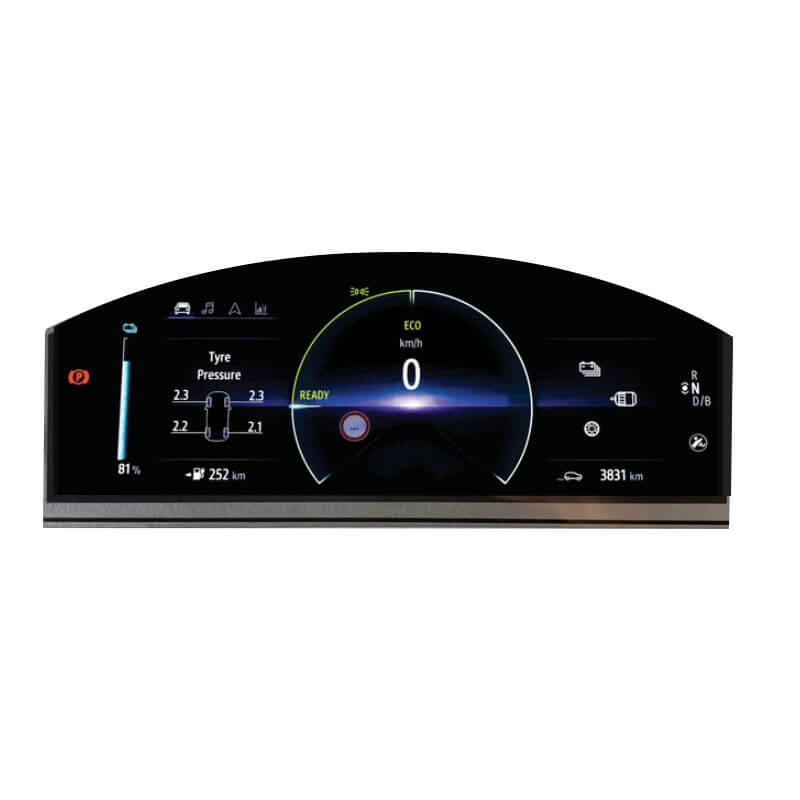

LS123M5LZ01 supports display 1920(RGB)×686, whose pixels are arranged in RGB Vertical Stripe. It features active area of 295.2(W)×105.47(H) mm, outline size of 301.3(W)×120.5(H)×15.15(D) mm, with surface treament of Antiglare, Reflection 3.5% (Typ.), net weight of 470g. As a New Mode2, Normally Black, Transmissive LCM product, LS123M5LZ01 can provides 1000 cd/m² display brightness 1500:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 77% (DCI-P3). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, With LED Driver. LS123M5LZ01 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 68 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

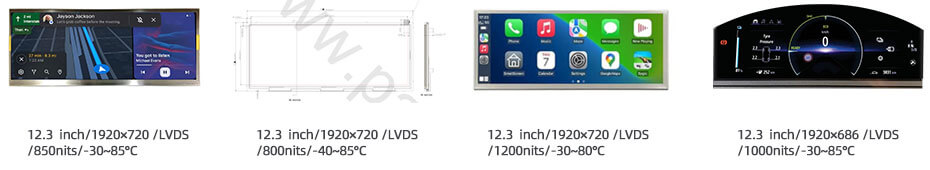

More 12.3 Inch Automotive Display For Reference
HSD123KPW1-A30 (1920×720, LVDS, IPS, 850nits, -30~85°C, 308.1×130mm)
TM123XDKP11 (1920×720, LVDS, IPS, 800nits, -40~85°C, 309.8×128.1mm)
ET123BA10-T (1920×720, LVDS, IPS, 1200nits, -30~80°C, 310×128mm)
LS123M5LZ01 (1920×686, LVDS, IPS, 1000nits, -30~85°C, 301.3×120.5mm)
