12.3 Inch TFT LCD Display 1920×720 LVDS High Brightness 850nits Wide Temperature LCD Display For Automotive

12.3 Inch Automotive Display Overview

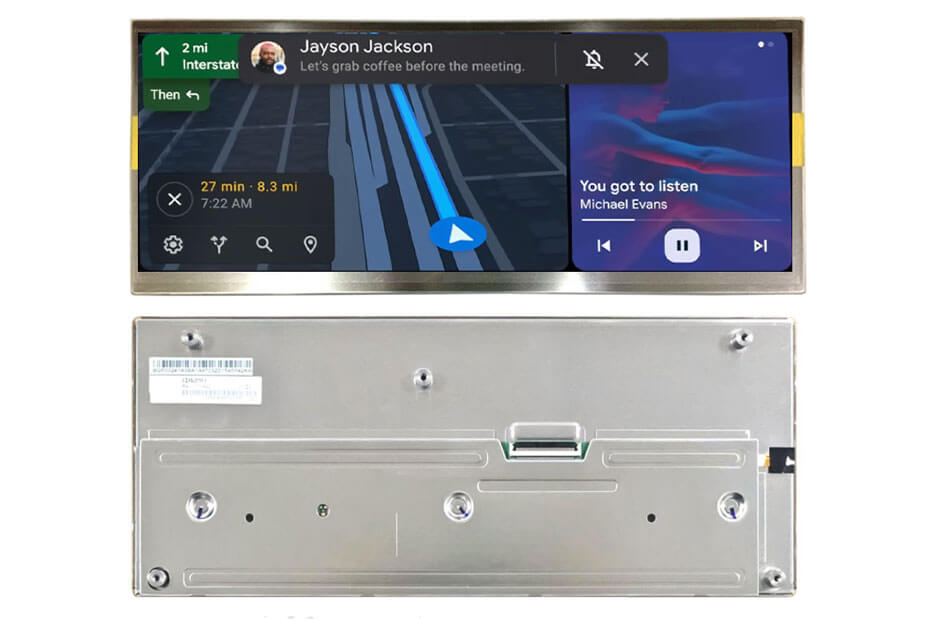

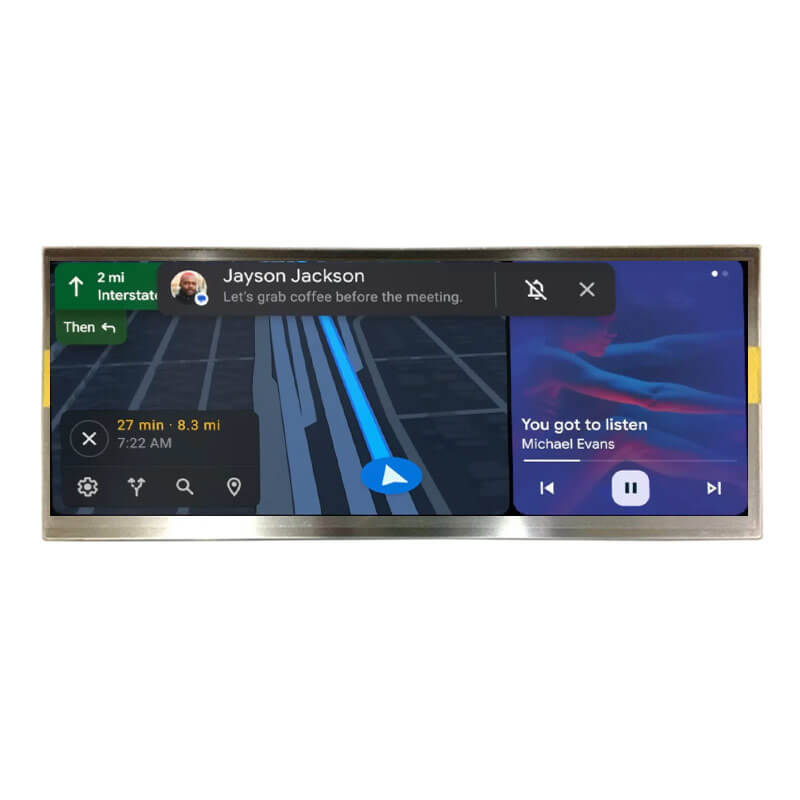

HSD123KPW1-A30 supports display 1920(RGB)×720 with aspect ratio of 8:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 292.032(W)×109.512(H) mm, outline size of 308.1(W)×130(H)×15.6(D) mm, viewing area size of 294.8(W)×112.1(H) mm, with surface treament of Antiglare, net weight of 520g (Typ.). As a IPS Pro, Normally Black, Transmissive LCM product, HSD123KPW1-A30 can provides 850 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 17/18 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 71% (NTSC). This product adopted 11S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. HSD123KPW1-A30 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 50 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

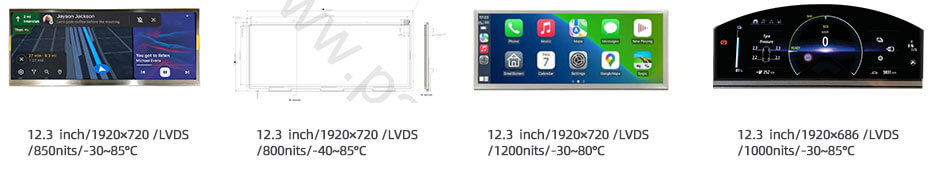

More 12.3 Inch Automotive Display For Reference
HSD123KPW1-A30 (1920×720, LVDS, IPS, 850nits, -30~85°C, 308.1×130mm)
TM123XDKP11 (1920×720, LVDS, IPS, 800nits, -40~85°C, 309.8×128.1mm)
ET123BA10-T (1920×720, LVDS, IPS, 1200nits, -30~80°C, 310×128mm)
LS123M5LZ01 (1920×686, LVDS, IPS, 1000nits, -30~85°C, 301.3×120.5mm)
