12.3 Inch TFT LCD Display 1920×720 LVDS High Brightness 800nits Wide Temperature LCD Display For Automotive

12.3 Inch Automotive Display Overview
TM123XDKP11 is a 12.3 inch diagonal a-Si TFT-LCD display screen product from TIANMA, with a built-in WLED backlight, without backlight driver, without touch screen.TM123XDKP11 supports display 1920(RGB)×720 with aspect ratio of 8:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 292.32(W)×109.62(H) mm, outline size of 309.8(W)×128.1(H)×16.8(D) mm, with surface treament of Antiglare, net weight of 440g (Typ.). As a SFT, Normally Black, Transmissive LCM product, TM123XDKP11 can provides 800 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 75% (NTSC). This product adopted 10S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. TM123XDKP11 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 50 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

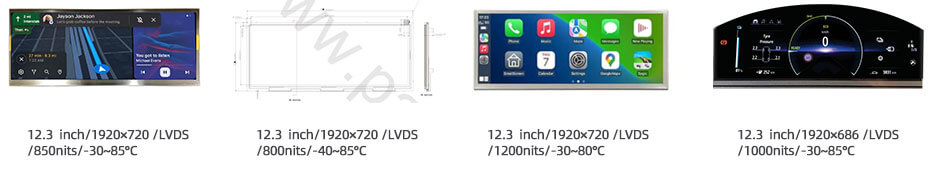

More 12.3 Inch Automotive Display For Reference
HSD123KPW1-A30 (1920×720, LVDS, IPS, 850nits, -30~85°C, 308.1×130mm)
TM123XDKP11 (1920×720, LVDS, IPS, 800nits, -40~85°C, 309.8×128.1mm)
ET123BA10-T (1920×720, LVDS, IPS, 1200nits, -30~80°C, 310×128mm)
LS123M5LZ01 (1920×686, LVDS, IPS, 1000nits, -30~85°C, 301.3×120.5mm)
