12.1 Inch TFT LCD Display 1024×768 LVDS High Brightness 1300nits Wide Temperature LCD Display For Automotive

12.1 Inch Automotive Display Overview

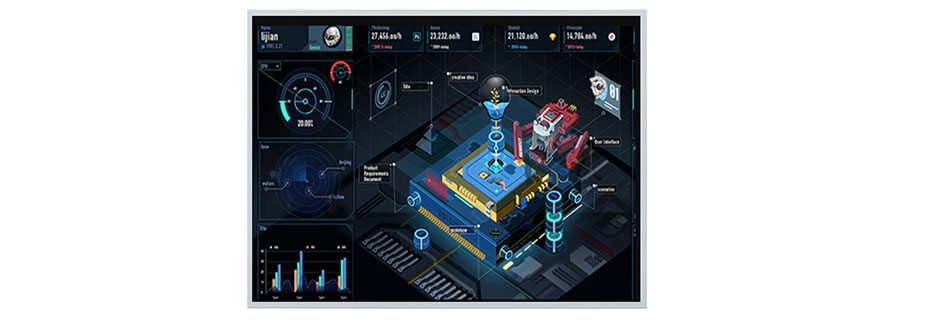

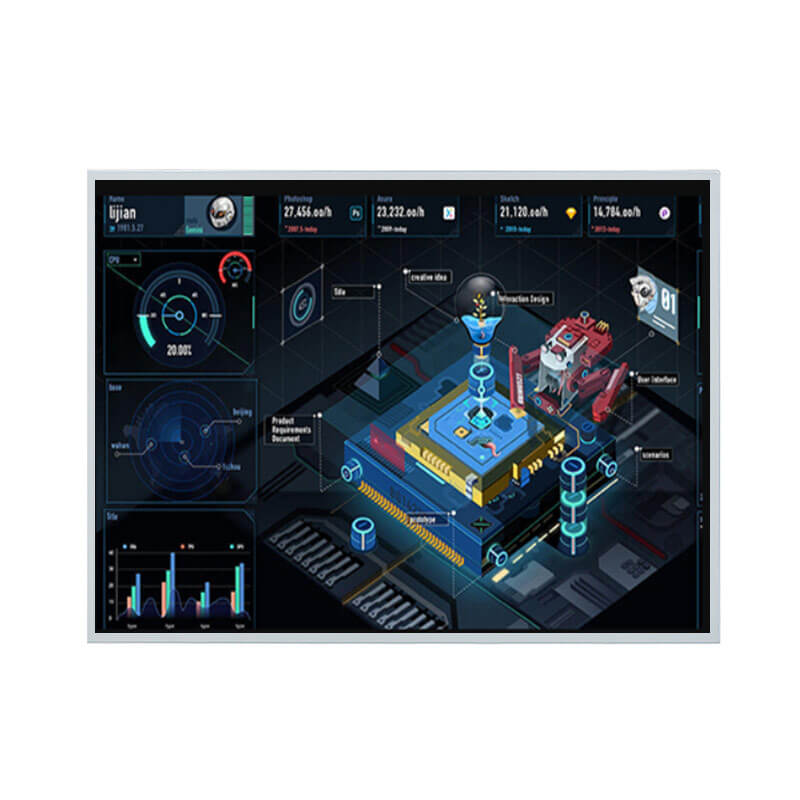

P1210XGF1MA00 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 245.76(W)×184.32(H) mm, outline size of 260.5(W)×203(H)×10(D) mm, viewing area size of 249(W)×187.5(H) mm, with surface treament of Antiglare, net weight of 550g (Typ.). As a SFT, Normally Black, Transmissive LCM product, P1210XGF1MA00 can provides 1300 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 7S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, external backlight driver is additionally needed. P1210XGF1MA00 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

More 12.1 Inch Automotive Display For Reference

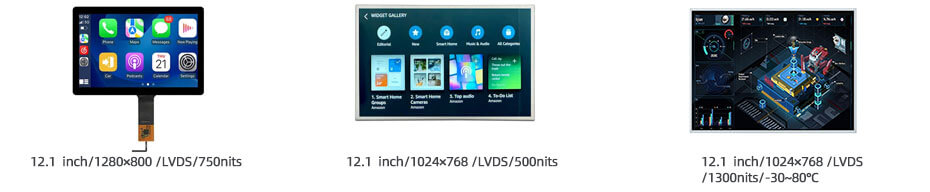

ET121WX02-TT (1280×800, LVDS, IPS, 750nits, -20~70°C, 293.66×198.66mm)
ET121WX01-T (1024×768, LVDS, IPS, 500nits, -20~70°C, 260.5×204mm)
P1210XGF1MA00 (1024×768, LVDS, IPS, 1300nits, -30~80°C, 260.5×203mm)
