10 Inch Color E-Ink E-Paper Display 1600×1200 50-Pin SPI 6-Color Black White Red Yellow Blue Electronic Paper Screen

10 Inch Color E-Ink E-Paper Display 1600×1200 50-Pin SPI 6-Color Black White Red Yellow Blue Electronic Paper Screen Overview

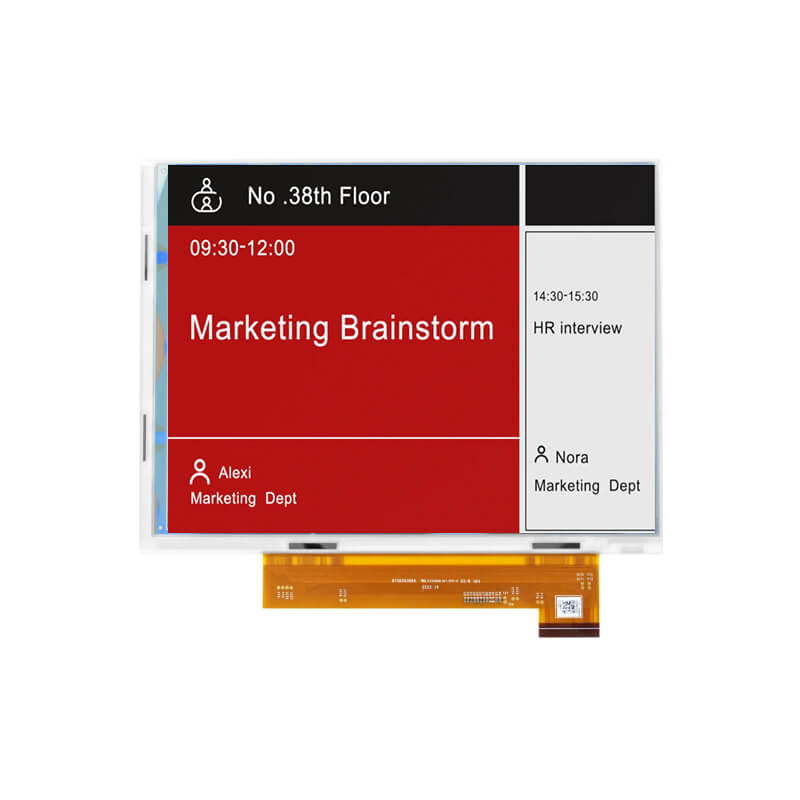

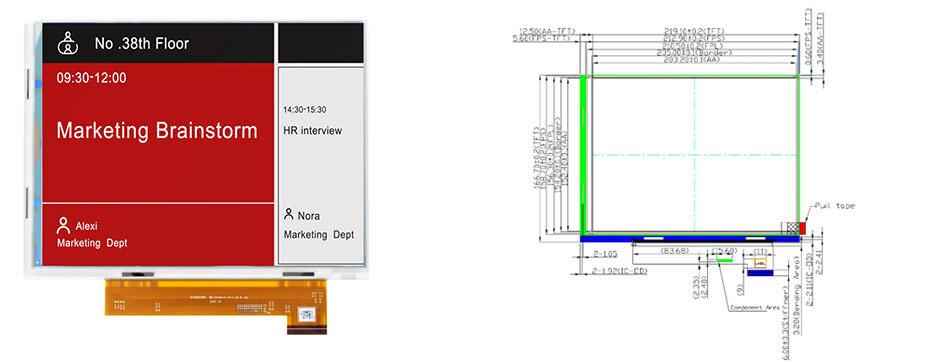

ET100EP01-J is a 10-inch diagonal Color E-Ink E-Paper display module featuring a 1600×1200 resolution and 6-color display capability in Black, White, Red, Yellow, Blue, and Green. It adopts an EPD (Electrophoretic Display) mode and a 50-pin SPI interface for communication. The display features an active area of 203.2(W) × 152.4(H) mm and an outline dimension of 219.1(W) × 166.7(H) × 0.78(D) mm. ET100EP01-J operates at temperatures from 0°C to 50°C and can be stored at temperatures from -25°C to 60°C. The module does not include a touch panel, making it suitable for electronic paper applications requiring high resolution, low power consumption, and multi-color display capabilities.

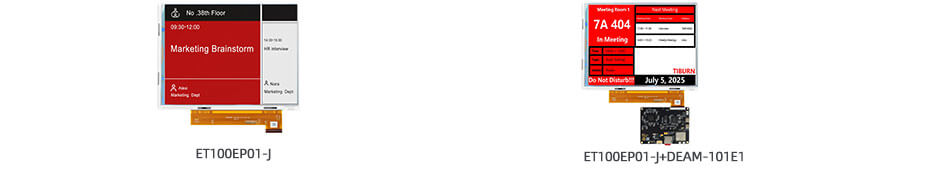

10 Inch E Ink Display Solution For Reference
ET100EP01-J
ET100EP01-J+DEAM-101E1

Features For Youritech E-Paper Display

Full-Color Display
-Rich, vibrant visuals for enhanced communication.
Ultra-Low Power
-Consumes power only during screen updates.
Sunlight Readable
-Clear visibility in bright outdoor environments.
Paper-Like Viewing
-Comfortable, glare-free reading experience.
No Backlight
-Uses ambient light to reduce power consumption.
Always-On Display
-Retains images without continuous power.
Wide Viewing Angle
-Consistent image quality from any direction.
Long Battery Life
-Ideal for battery-powered applications.
Thin & Lightweight
-Easy integration into compact devices.
Multiple Color Options
-Available in B/W/Red, B/W/Yellow, four-color, and full-color versions.

-Electronic Shelf Labels (ESL)
-Retail Digital Signage
-Smart Labels
-Advertising Displays
-Public Information Displays
-Transportation Signage
-Medical Information Displays
-Smart Home Control Panels
-Conference & Event Badges
-Industrial IoT Displays
