14 Inch Wide Temperature LCD Display Overview
The ET140WU01-AS is a 14-inch wide-temperature, high-brightness TFT LCD display module. It features a high resolution of 1600x1200, utilizes an LVDS interface, and provides a brightness of 800 nits. The module supports a wide operating temperature range of -40°C to 85°C, with a storage range of -40°C to 90°C. Its active display area measures 284.16x213.12 mm, housed within an outline dimension of 305.5x230.15 mm. The display provides symmetrical and wide viewing angles of 85/85/85/85 (L/R/U/D) and does not incorporate touch functionality.
More 14 Inch Wide Temperature Displays For Reference

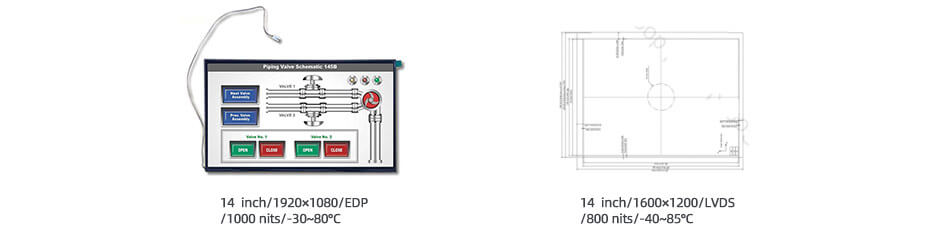

ET140FH01-HG (LCD, 1920×1080, eDP, IPS, 1000nits, -30~80°C, 317.52×186.76mm)
ET140WU01-AS (LCD, 1600×1200, LVDS, IPS, 800nits, -40~85°C, 305.5×230.15mm)
Wide Temperature Displays Technology
