1.02 Inch Flexible E Ink Display 128x80 Ultra-Thin Electronic Paper Display

1.02 Inch Flexible E Ink Display 128x80 Ultra-Thin Electronic Paper Display Overview

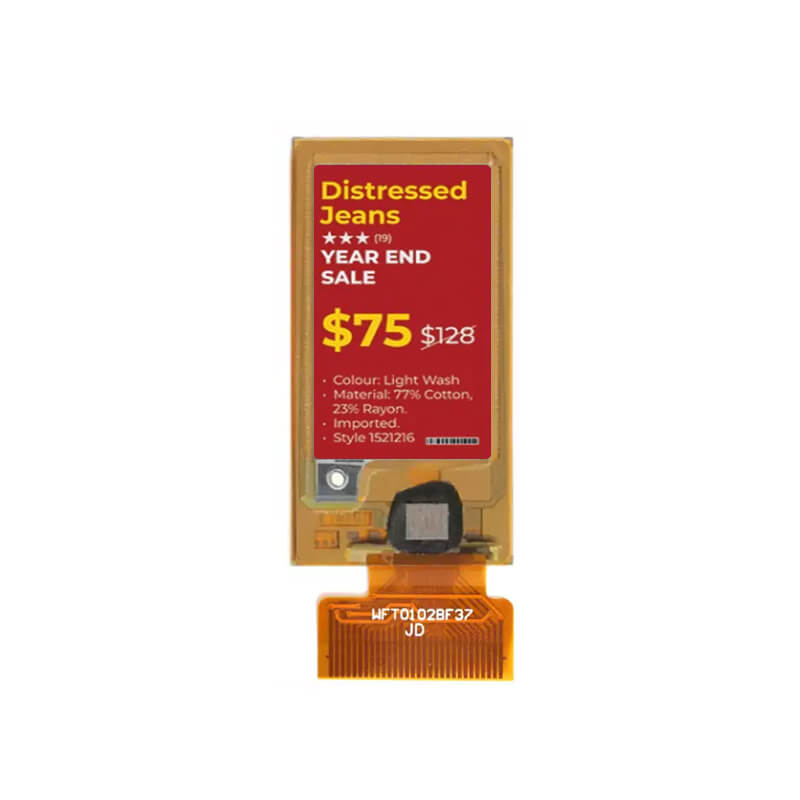

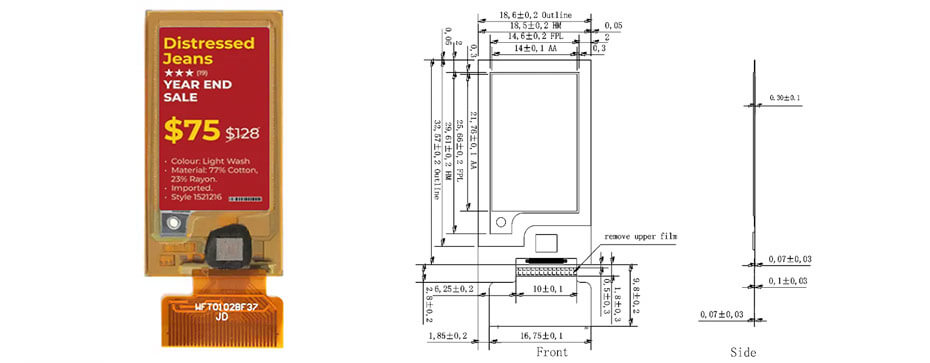

ET010EPFL01-J is a 1.02 inch diagonal flexible E-Ink E-Paper (EPD) display module featuring an ultra-thin design and advanced electronic ink technology for lightweight, low-power display applications. ET010EPFL01-J supports a 128×80 resolution with a compact flexible structure, delivering clear text, icons, symbols, and graphics for applications such as smart labels, wearable devices, IoT products, portable instruments, and electronic tags. The module adopts a 30-pin interface for system integration and reliable communication. It features an active area of 21.76(W) × 14.00(H) mm, an outline dimension of 32.57(W) × 18.6(H) × 0.3(D) mm, and operates reliably within a 0°C to 50°C operating temperature range, with a storage temperature of -25°C to 70°C. Designed without a touch panel, the ET010EPFL01-J provides a paper-like viewing experience with high contrast, wide viewing angle performance, and bistable display characteristics, making it an ideal ultra-thin flexible display solution for battery-powered applications requiring lightweight design, long service life, and minimal power consumption.

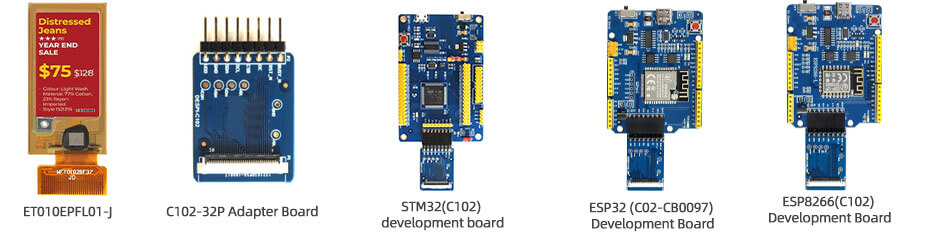

1.02 Inch E Ink Display Solution For Reference
ET010EPFL01-J
C102-32P Adapter Board
STM32(C102) development board
ESP32 (C02-CB0097) Development Board
ESP8266(C102) Development Board

Features For Youritech E-Paper Display

Full-Color Display
-Rich, vibrant visuals for enhanced communication.
Ultra-Low Power
-Consumes power only during screen updates.
Sunlight Readable
-Clear visibility in bright outdoor environments.
Paper-Like Viewing
-Comfortable, glare-free reading experience.
No Backlight
-Uses ambient light to reduce power consumption.
Always-On Display
-Retains images without continuous power.
Wide Viewing Angle
-Consistent image quality from any direction.
Long Battery Life
-Ideal for battery-powered applications.
Thin & Lightweight
-Easy integration into compact devices.
Multiple Color Options
-Available in B/W/Red, B/W/Yellow, four-color, and full-color versions.

-Electronic Shelf Labels (ESL)
-Retail Digital Signage
-Smart Labels
-Advertising Displays
-Public Information Displays
-Transportation Signage
-Medical Information Displays
-Smart Home Control Panels
-Conference & Event Badges
-Industrial IoT Displays
