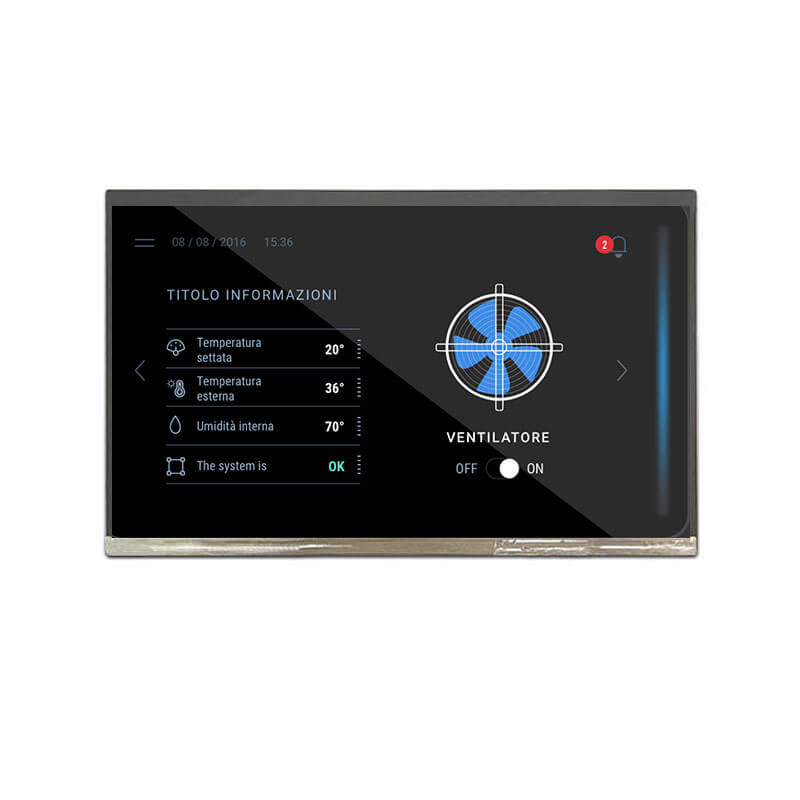

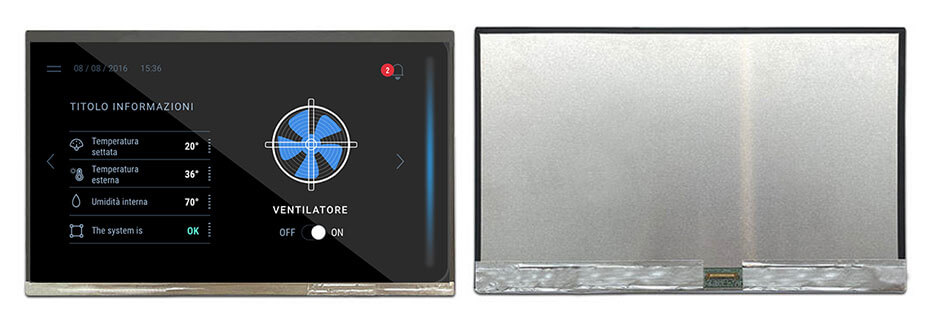

11.6 Inch TFT LCD Display 1920×1080 MIPI High Brightness 950nits LCD Display For Automotive OverviewET116FH02-T is an 11.6-inch diagonal TFT-LCD display product with a transmissive display mode. ET116FH02-T supports a resolution of 1920×1080 (FHD) with an aspect ratio of 16:9 (W:H), delivering sharp and high-definition image performance, and utilizes a MIPI interface for signal transmission. It features an active area of 256.32(W)×144.18(H) mm and an outline size of 267.02(W)×164.12(H) mm. The display provides a high brightness of 950 cd/m², suitable for automotive and high ambient light environments, and adopts IPS technology for wide viewing angles. ET116FH02-T operates within a temperature range of -20 to 70°C and can be stored at -30 to 80°C. This model does not include a touch function.
More 11.6 Inch Automotive Display For Reference

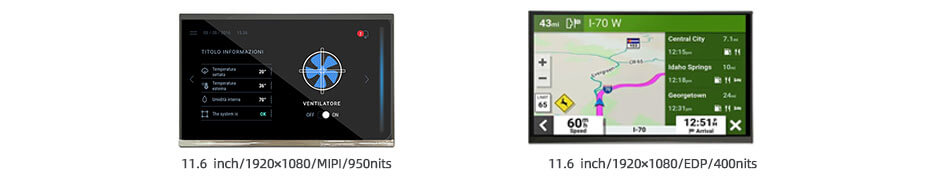

ET116FH02-T (1920×1080, MIPI, IPS, 950nits, -20~70°C, 267.02×164.12mm)
ET116FH01-T (1920×1080, eDP, IPS, 400nits, -20~70°C, 263.6×157.42mm)
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
