10.3 Inch TFT LCD Display 1920×720 LVDS High Brightness 1200nits Wide Temperature LCD Display For Automotive

10.3 Inch Automotive Display Overview

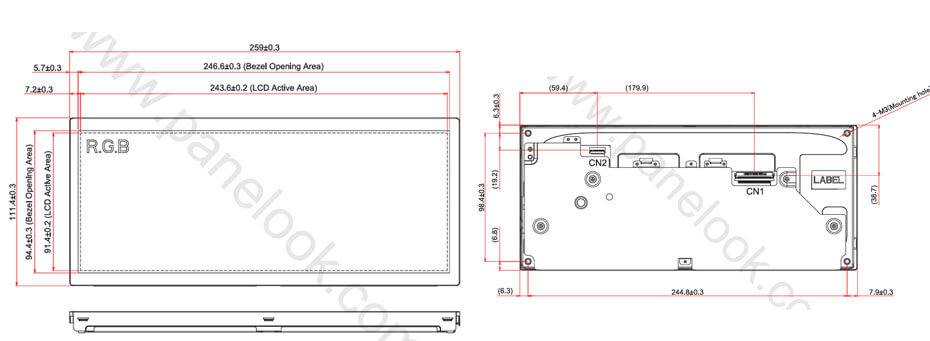

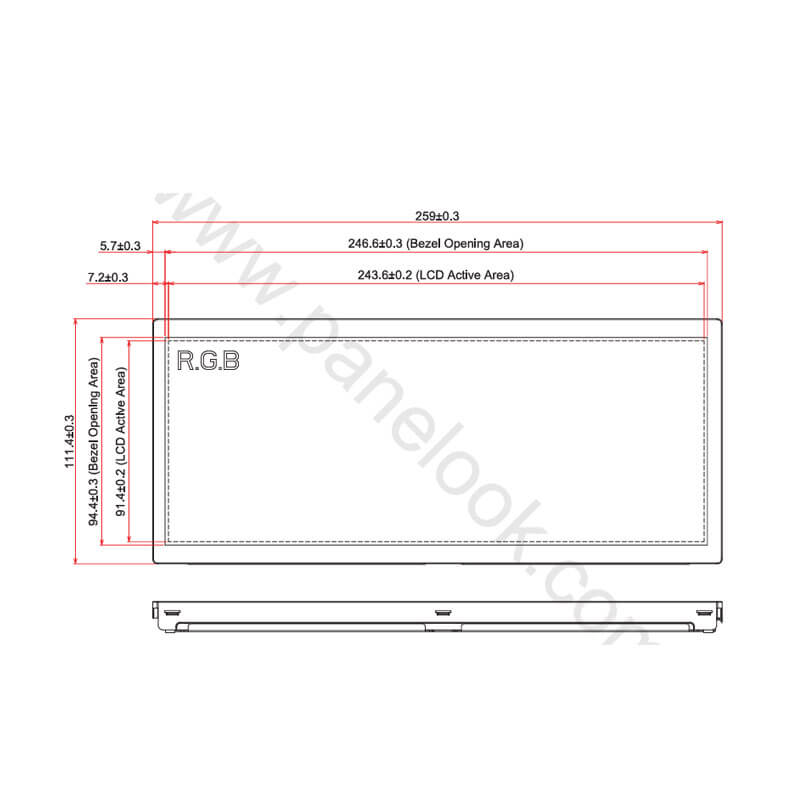

TX26D206VM0BAA is a 10.3 inch diagonal LTPS TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. TX26D206VM0BAA supports display 1920(RGB)×720 with aspect ratio of 8:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 243.648(W)×91.368(H) mm, outline size of 259(W)×111.4(H)×14.7(D) mm, viewing area size of 246.6(W)×94.4(H) mm, net weight of 430g (Typ.). As a IPS, Normally Black, Transmissive LCM product, TX26D206VM0BAA can provides 1200 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 98% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. TX26D206VM0BAA utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 50 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

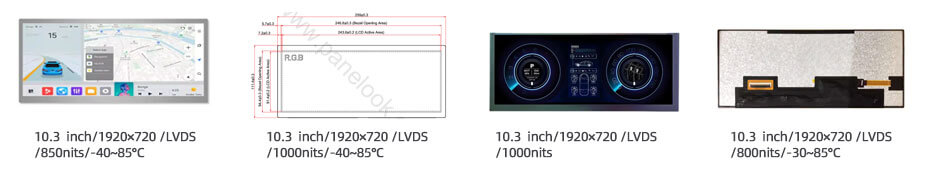

More 10.3 Inch Automotive Display For Reference
HSD103KPW2-A10 (1920×720, LVDS, IPS, 850nits, -30~85°C, 259.8×112mm)
TX26D206VM0BAA (1920×720, LVDS, IPS, 1000nits, -40~85°C, 259×111.4mm)
ET103BA01-T (1920×720, LVDS, IPS, 1000nits, -20~70°C, 258.8×111.1mm)
TM103XDGP01 (1920×720, LVDS, IPS, 800nits, -30~85°C, 262.04×110.3mm)
