10.2 Inch TFT LCD Display 800×480 TTL Wide Temperature LCD Display For Automotive

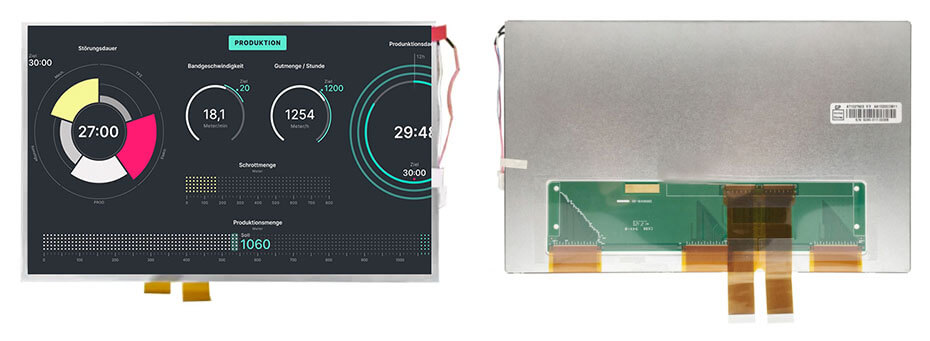

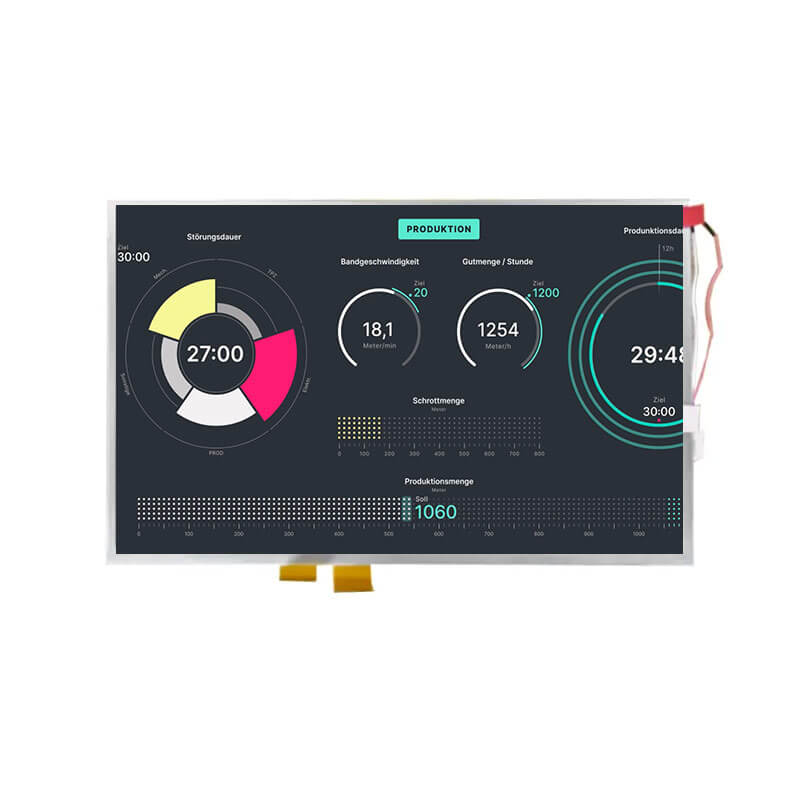

10.2 Inch Automotive Display Overview
AT102TN03 V.8 supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 222(W)×132.48(H) mm, outline size of 235(W)×145.8(H)×6.4(D) mm, viewing area size of 225.3(W)×135.7(H) mm, with surface treament of Antiglare, net weight of 309g (Typ.). As a TN, Normally White, Transmissive LCM product, AT102TN03 V.8 can provides 350 cd/m² display brightness 300:1 transimissive contrast ratio, 65/65/45/65 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15/20 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted 3S10P WLED as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 20K hours, external backlight driver is additionally needed. AT102TN03 V.8 utilizes TTL (1 ch, 6-bit) as it's signal inputting systerm, which connected by 60 pins FPC with power supply voltage of 3.3/9.2/16/-7V (Typ.)(VCC/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.
