0.48"-5" LCD Display (1.89")

1.89 Inch High Brightness Display 1000nits IPS 1600x1200 MIPI TFT LCD Display For Handheld PDA

Part No.:ET019HD01-AM
Size:1.89″ inch
Resolution:1600x1200
Panel Interface:MIPI
Display mode:Transmissive
Outline Dimension:41.2x40.6mm
Active Area:38.4x28.8mm
Viewing Angle L/R/U/D:25/25/35/35
Brightness（cd/m2）:1000(Typ.)
Operation / Storage Temp:-10~55°C / -30~70°C
Touch:no

1.89 Inch High Brightness Display Overview
1.89 Inch High Brightness Display 1000nits IPS 1600x1200 MIPI TFT LCD Display For Handheld PDA.

More 1.9 Inch High Brightness Display For Reference

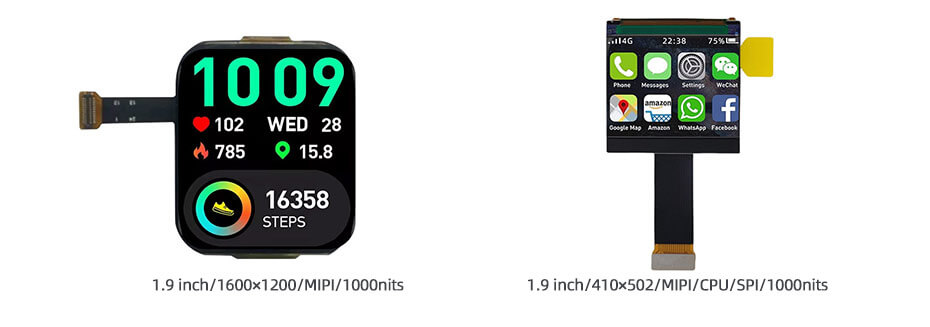

ET019HD01-AM (1600x1200, MIPI, 1000nits, -10~55°C, 41.2x40.6mm)

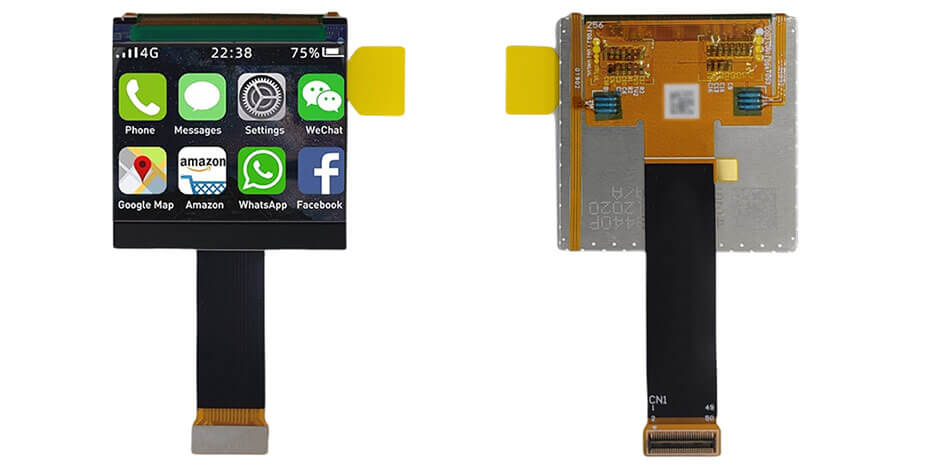

ET019AM01-TT (410x502, MIPI/CPU/SPI, 800nits, -20~70°C, 38.27x45.25mm)

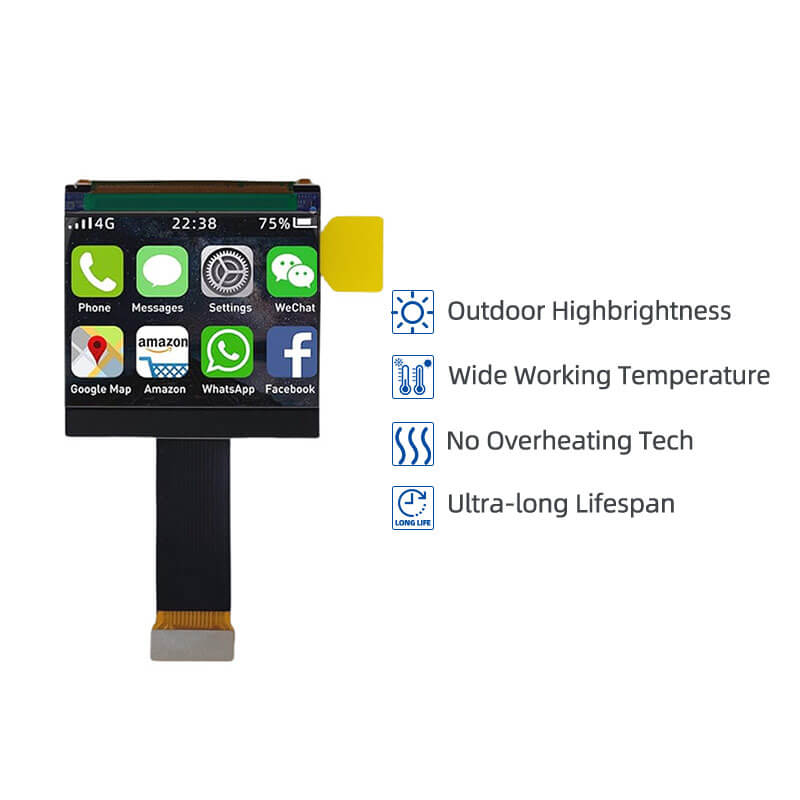

Outdoor Highbrightness Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
