0.48"-5" LCD Display (1.77")

1.77 Inch High Brightness Display 1000nits 128x160 Parallel Data TFT LCD Display For Handheld PDA

Part No.:ET018QE02-SD
Size:1.77″ inch
Resolution:128x160
Panel Interface:Parallel Data
Display mode:Transmissive

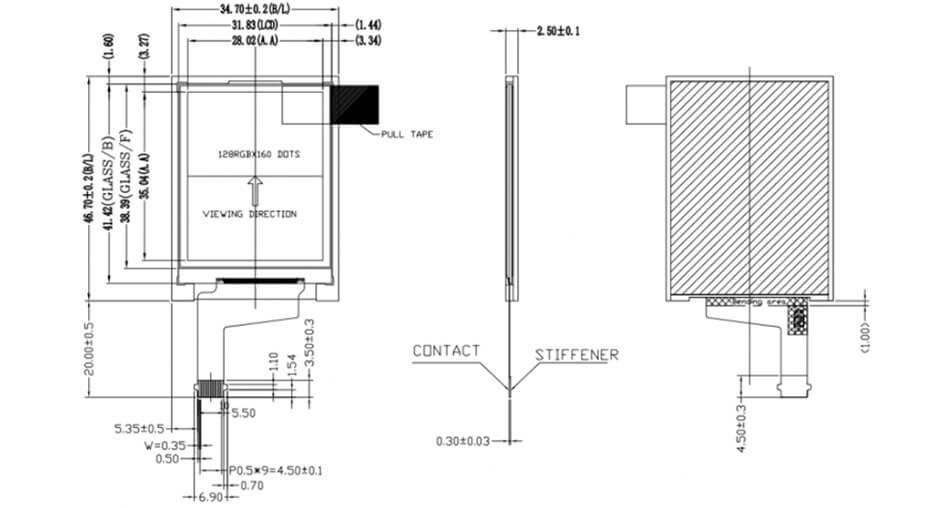

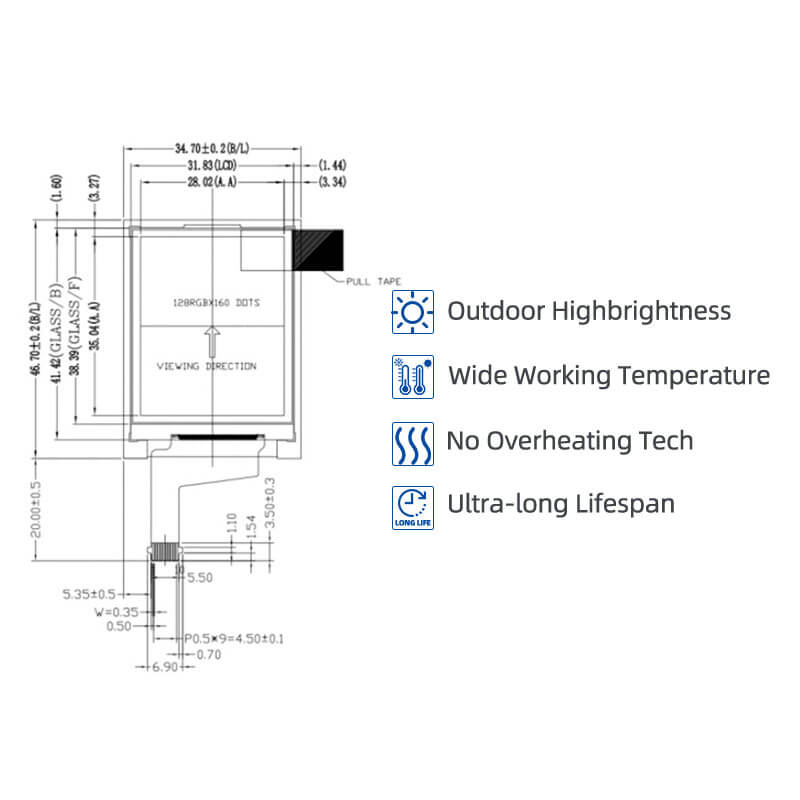

Outline Dimension:34.7x46.7mm
Active Area:28.02x34.7mm
Viewing Angle L/R/U/D:65/60/65/65
Brightness（cd/m2）:1000(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

1.77 Inch High Brightness Display Overview
1.77 Inch High Brightness Display 1000nits 128x160 Parallel Data TFT LCD Display For Handheld PDA.

More 1.77 Inch High Brightness Display For Reference

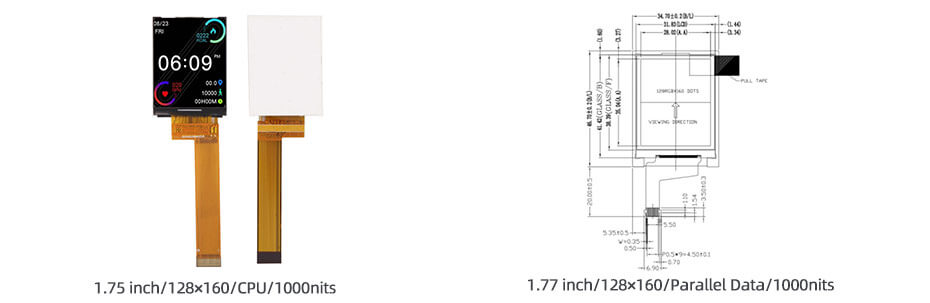

ET018QE01-PV (128x160, CPU, 1000nits, -20~70°C, 31.4x42.9mm)
ET018QE02-SD (128x160, Parallel Data, 1000nits, -20~70°C, 34.7x46.7mm)
