0.48"-5" LCD Display (1.98")

1.98 Inch High Brightness Display 800nits 410x502 MIPI/CPU/SPI AMOLED Display With On-Cell Touch

Part No.:ET019AM01-TT
Size:1.98″ inch
Resolution:410x502
Panel Interface:MIPI/CPU/SPI
Display mode:AM-OLED
Outline Dimension:38.27x45.25mm
Active Area:31.77x38.8mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:800(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

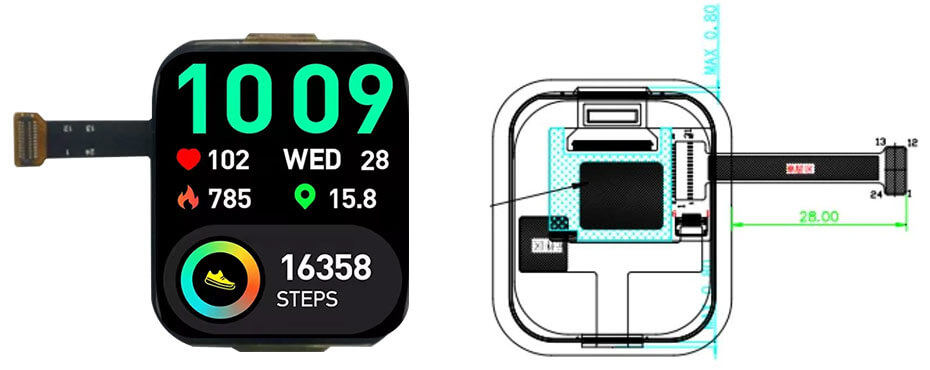

1.98Inch High Brightness Display Overview
1.98 Inch High Brightness Display 800nits 410x502 MIPI/CPU/SPI AMOLED Display With On-Cell Touch.

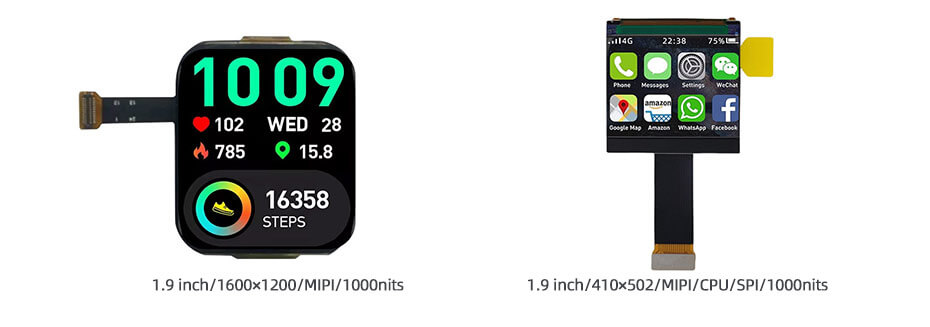

More 1.9 Inch High Brightness Display For Reference
ET019HD01-AM (1600x1200, MIPI, 1000nits, -10~55°C, 41.2x40.6mm)
ET019AM01-TT (410x502, MIPI/CPU/SPI, 800nits, -20~70°C, 38.27x45.25mm)

Outdoor Highbrightness Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Production and Manufacturing
