1.8 Inch Circular Display 360x360 SPI IPS Round LCD Display For Wearable

Part No.:ET018WF01-H
Size:1.8″ inch
Resolution:360x360
Panel Interface:SPI
Display mode:Transmissive

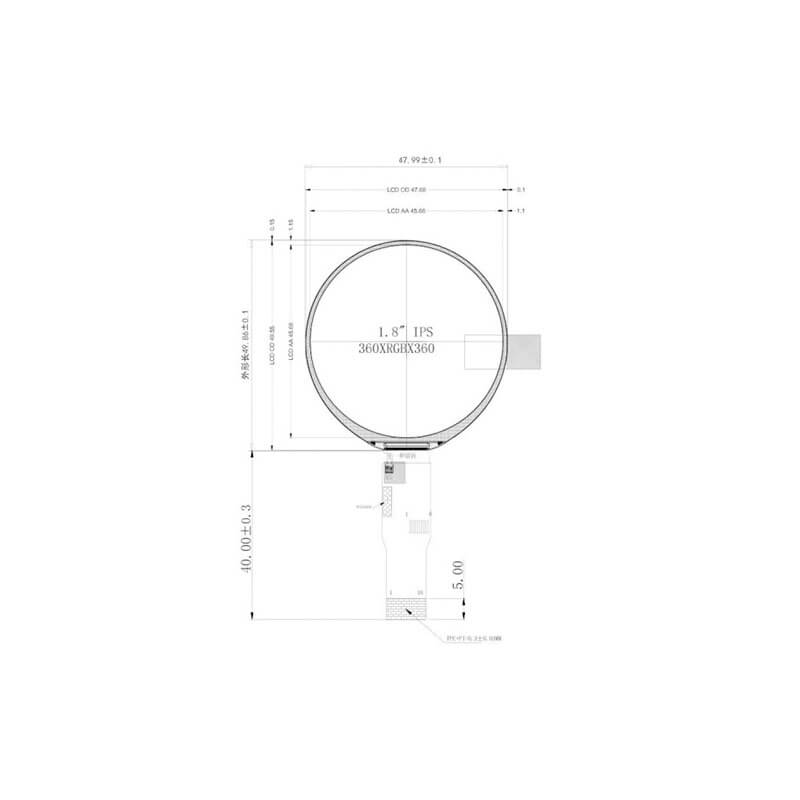

Outline Dimension:47.99x49.86mm
Active Area:45.68x45.68mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:400(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

1.8 Inch Circular Display Overview
ET018WF01-H is a 1.8-inch circular transmissive IPS LCD display designed for wearable applications. It features a 360 × 360 resolution with an SPI interface, providing 400 cd/m² typical brightness within a 45.68 × 45.68 mm active area. The display offers wide 85° viewing angles, a 47.99 × 49.86 mm outline, operates from –20 to 70 °C, supports storage from –30 to 80 °C, and is supplied without touch functionality.

More 1.8 Inch Circular LCD Display For Reference
ET018CR01-R (360x360, MIPI, 480nits, -20~70°C, 58.68x58.68mm, RTP)
ET018CR01-H (360x360, MIPI/CPU/RGB/SPI, 450nits, -20~70°C, 48.08x49.95mm, On-Cell Touch)
ET018WF01-H (360x360, SPI, 400nits, -20~70°C, 47.99x49.86mm)
