0.48"-5" LCD Display (1.85")

1.85 Inch Circular Display 360x360 MIPI/RGB Round LCD Display With Capacitive Touch

Part No.:ET019CR01-TH
Size:1.85″ inch
Resolution:360x360
Panel Interface:MIPI/RGB
Display mode:Transmissive
Outline Dimension:55x55mm
Active Area:45.68x45.68mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:450(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:yes

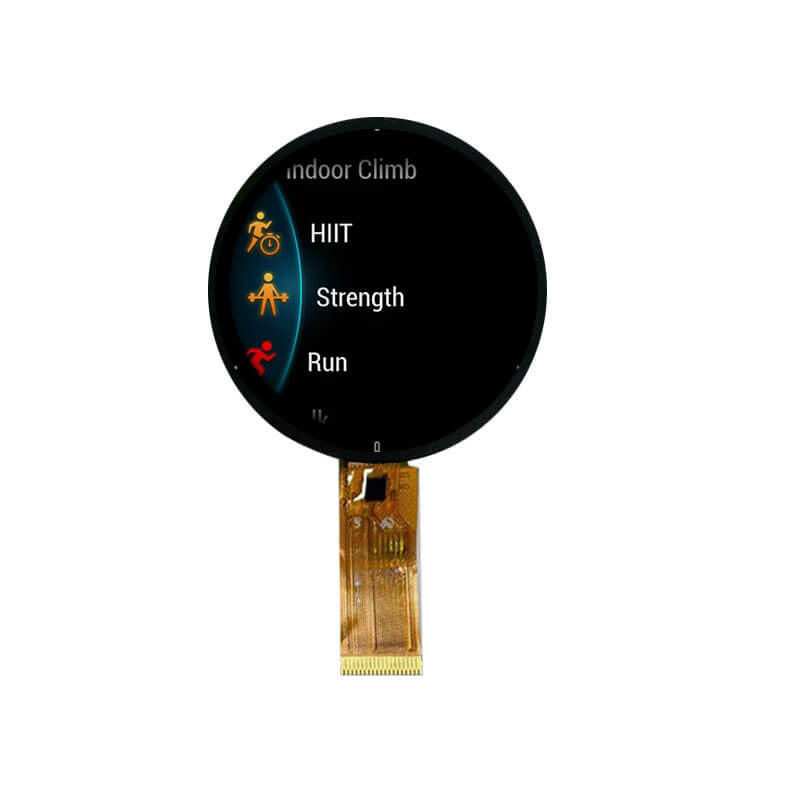

1.85 Inch Circular Display Overview
ET019CR01-TH is a 1.85-inch circular transmissive LCD display designed for wearable applications. It features a 360 × 360 resolution with MIPI and RGB interfaces, providing 450 cd/m² typical brightness within a 45.68 × 45.68 mm active area. The display offers wide 85° viewing angles, a 55 × 55 mm outline, operates from –20 to 70 °C, supports storage from –30 to 80 °C, and includes capacitive touch functionality.
