0.48"-5" LCD Display (1.8")

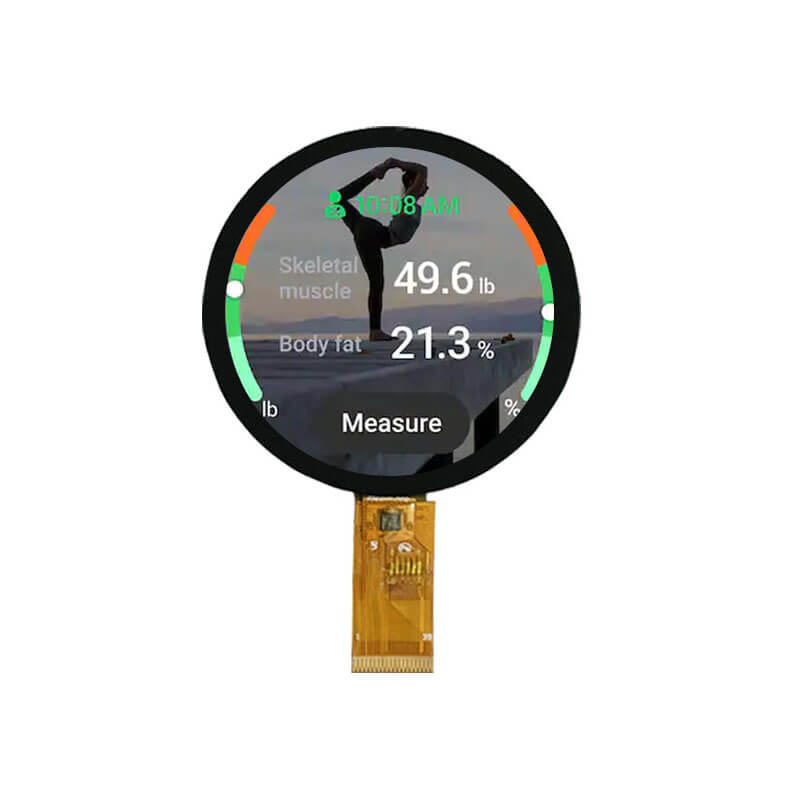

1.8 Inch Circular Display 360x360 MIPI/CPU/RGB/SPI IPS Round LCD Display With On-Cell Touch

Part No.:ET018CR01-H
Size:1.8″ inch
Resolution:360x360
Panel Interface:MIPI/CPU/RGB/SPI
Display mode:Transmissive
Outline Dimension:48.08x49.95mm
Active Area:45.68x45.68mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:450(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:yes

1.8 Inch Circular Display Overview
1.8 Inch Circular Display 360x360 MIPI/CPU/RGB/SPI IPS Round LCD Display With On-Cell Touch.

More 1.8 Inch Circular LCD Display For Reference
ET018CR01-R (360x360, MIPI, 480nits, -20~70°C, 58.68x58.68mm, RTP)
ET018CR01-H (360x360, MIPI/CPU/RGB/SPI, 450nits, -20~70°C, 48.08x49.95mm, On-Cell Touch)
ET018WF01-H (360x360, SPI, 400nits, -20~70°C, 47.99x49.86mm)
