1.77 Inch Wide Temperature LCD Display Overview

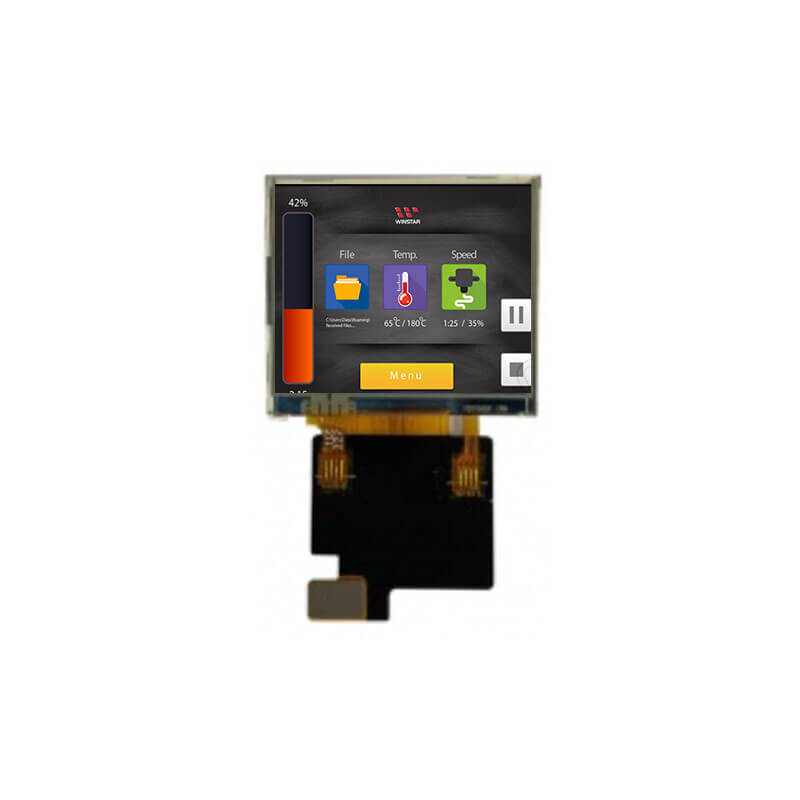

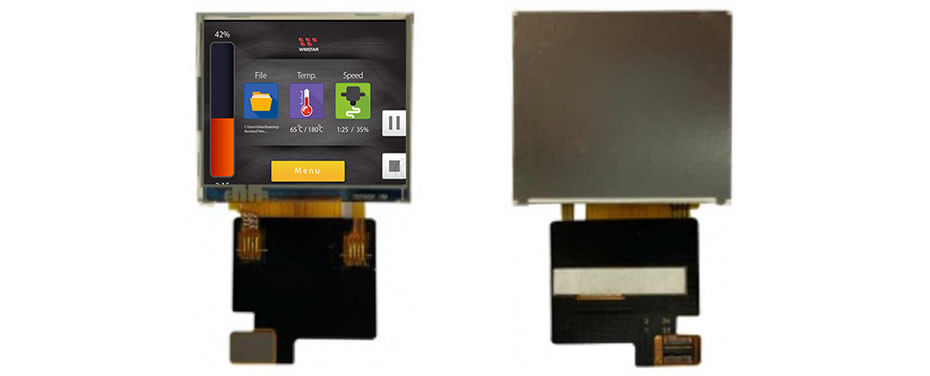

ET018QQ01-RRT is a 1.77 inch diagonal TFT-LCD display screen product. ET018QQ01-RRT supports a display resolution of 240×180, whose pixels are arranged in a standard RGB stripe configuration. It features an active area of 36(W) × 27(H) mm and an outline dimension of 40.77(W) × 36.2(H) mm. The module adopts a transmissive display mode and supports a CPU interface for communication. ET018QQ01-RRT provides a typical display brightness of 210 cd/m² and offers a viewing angle of 50/40/40/50 (L/R/U/D). Designed for reliable operation, it supports an operating temperature range of -30°C to 70°C and a storage temperature range of -40°C to 80°C. This display module does not include a touch panel.
Wide Temperature Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Youritech Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
