1.5 Inch Wide Temperature AMOLED Display Overview

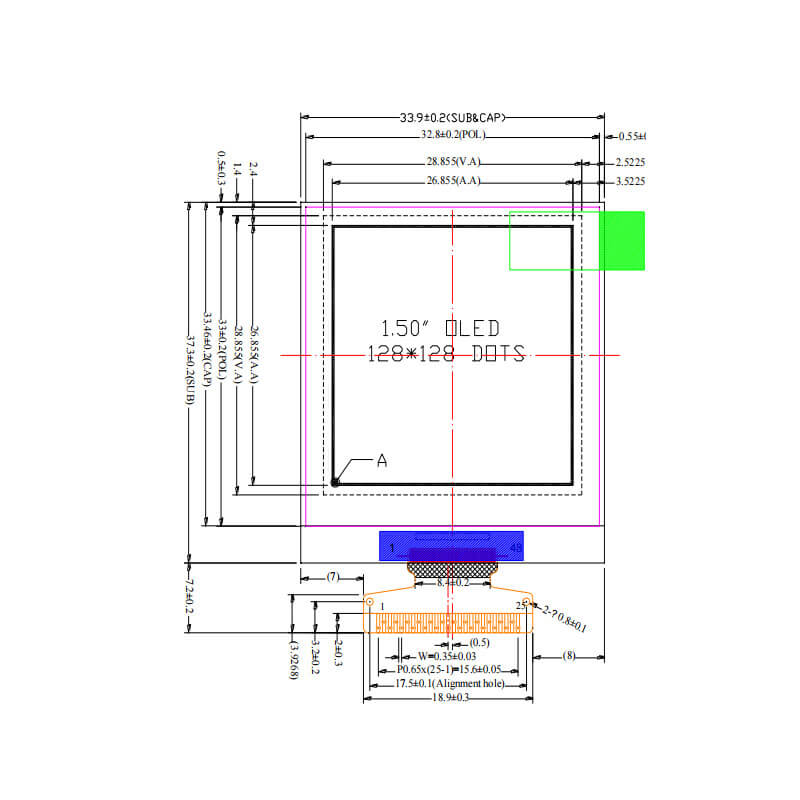

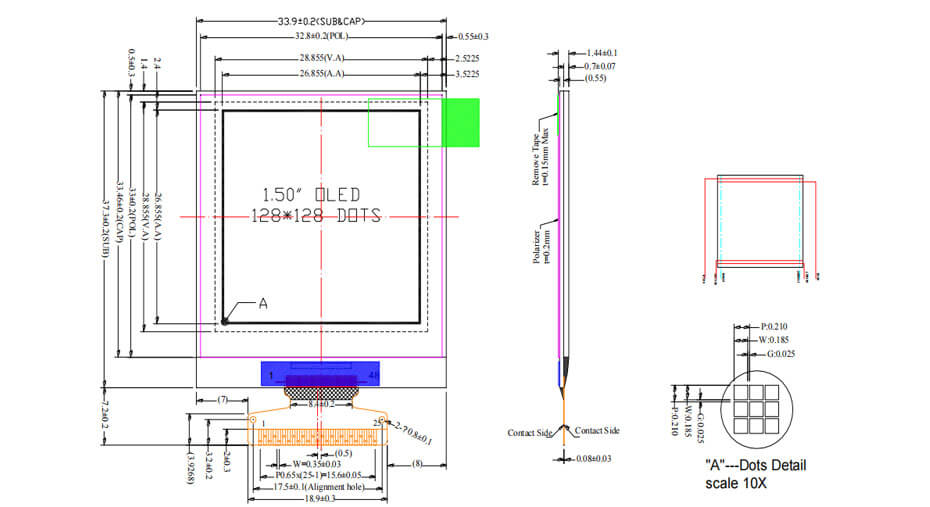

ET015SQ01-OL is a 1.5 inch diagonal AM-OLED display screen product, self-emitting. ET015SQ01-OL supports a display resolution of 128×128 with a square aspect ratio, whose pixels are arranged in an active matrix structure. It features an active area of 26.855(W) × 26.855(H) mm and an outline dimension of 33.9(W) × 37.3(H) mm. The module supports an SPI interface for communication, enabling easy integration with various embedded systems. ET015SQ01-OL provides a typical display brightness of 110 cd/m² and offers a wide viewing angle of 80/80/80/80 (L/R/U/D) for clear visibility from multiple directions. Designed for wide temperature environments, it supports an operating temperature range of -40°C to 70°C and a storage temperature range of -40°C to 85°C. This display module does not include a touch panel.
Wide Temperature Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Youritech Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
