0.48"-5" LCD Display (2.3")

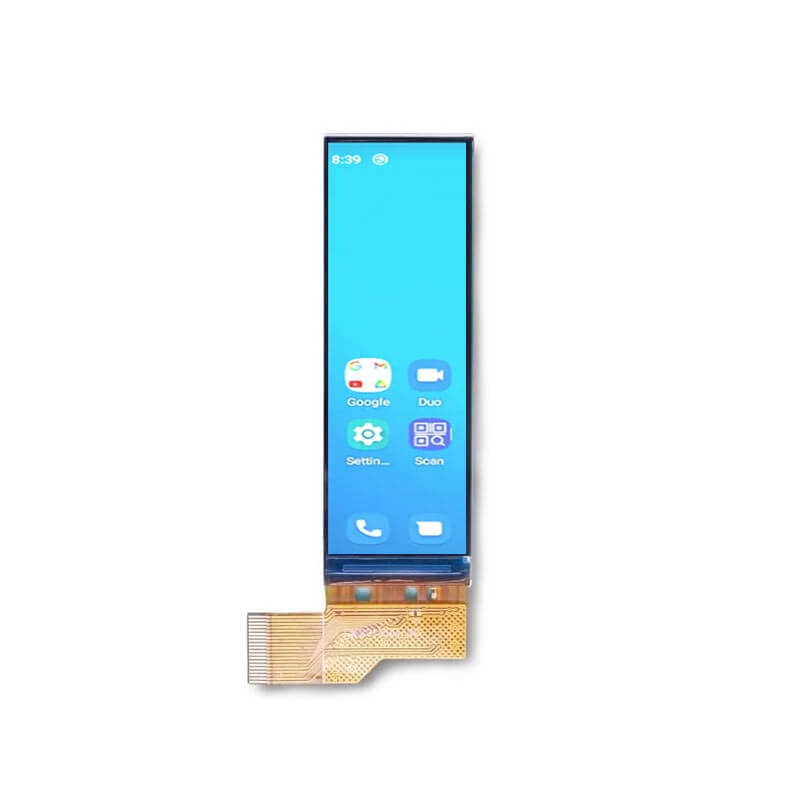

2.3 Inch Stretched Bar Display 100x310 CPU TFT LCD Display

Part No.:ET023BA01-TS
Size:2.3″ inch
Resolution:100x310
Panel Interface:CPU
Display mode:Transmissive

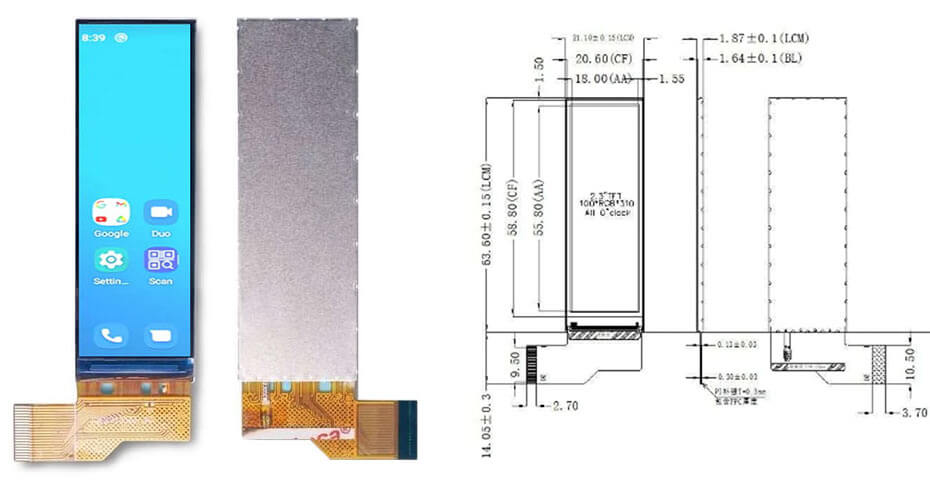

Outline Dimension:21.1x63.6mm
Active Area:18x55.8mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:300(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

2.3 Inch Stretched Bar Display Overview
ET023BA01-TS is a 2.3-inch transmissive TFT LCD stretched bar display with a 100×310 resolution and CPU interface. It offers a wide 80° viewing angle in all directions, 300 cd/m² typical brightness, an active area of 18 × 55.8 mm, and an outline size of 21.1 × 63.6 mm. The display operates from –20 to 70 °C (storage –30 to 80 °C) and does not support touch.
