1.66 Inch Stretched Bar Display 142X428 4SPI NV3007 Wide Viewing Angle TFT LCD Display

Part No.:ET017BA01-H
Size:1.66″ inch
Resolution:142x428
Panel Interface:SPI
Display mode:Transmissive

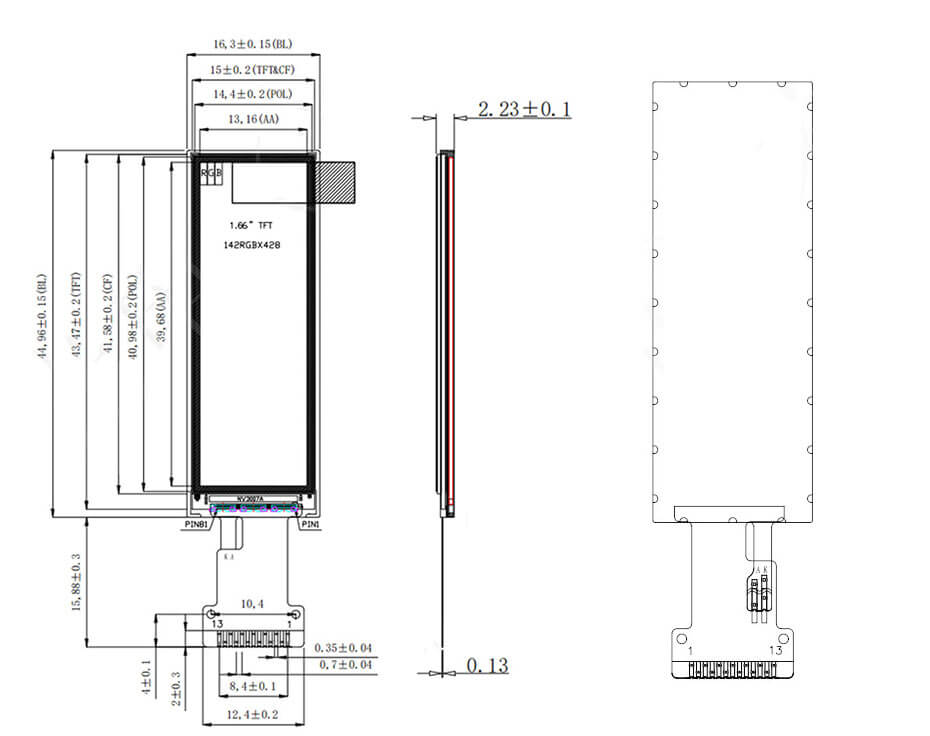

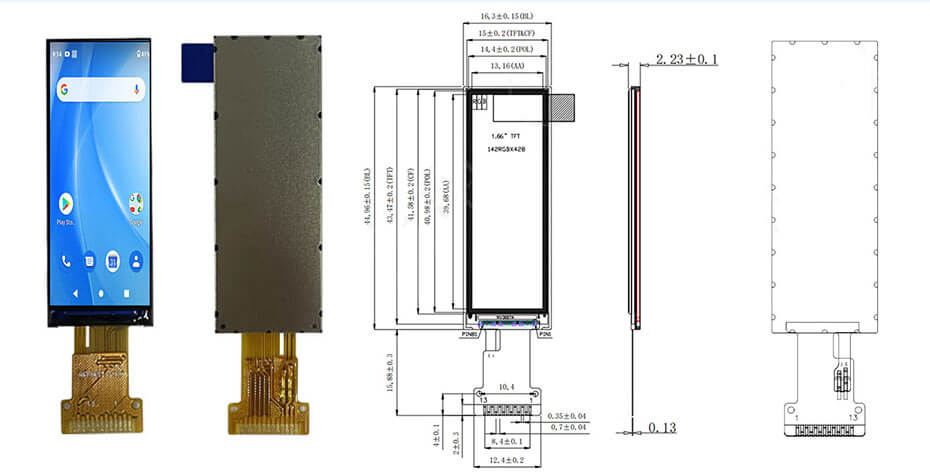

Outline Dimension:16.3x44.96mm
Active Area:13.16x39.68mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:350(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

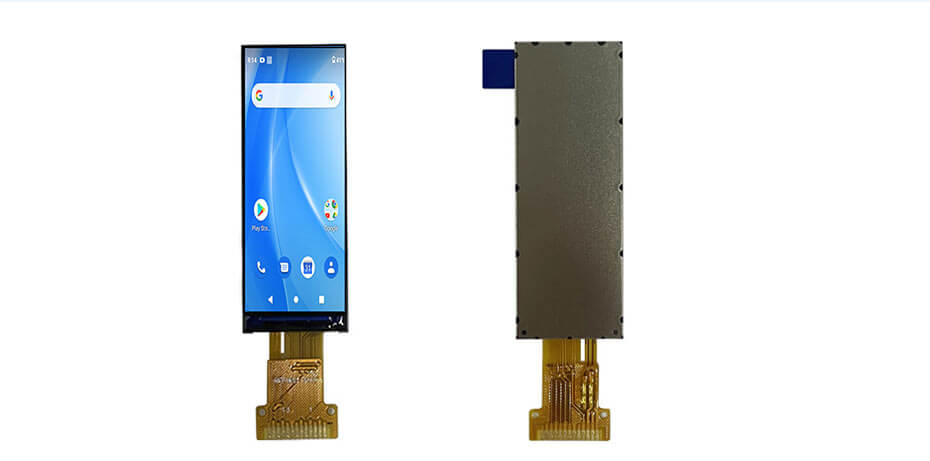

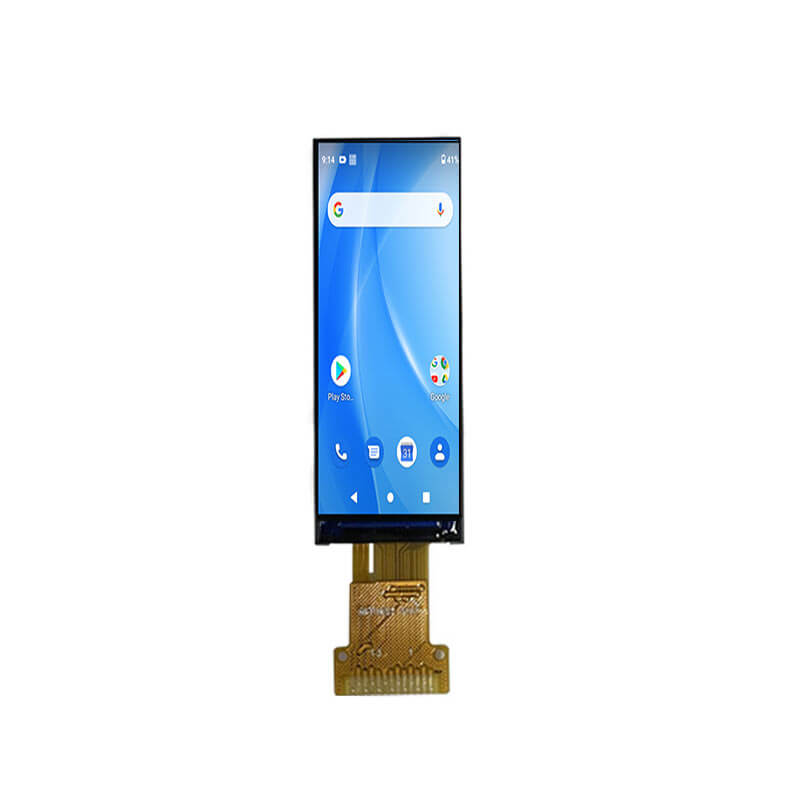

1.66 Inch Stretched Bar Display Overview
ET017BA01-H is a 1.66-inch transmissive TFT LCD stretched bar display with a 142×428 resolution and SPI interface. It offers a wide 80° viewing angle in all directions, 350 cd/m² typical brightness, an active area of 13.16 × 39.68 mm, and an outline size of 16.3 × 44.96 mm. The display operates from –20 to 70 °C (storage –30 to 80 °C) and does not support touch.
