7.1"-10.1" LCD Display (10.1")

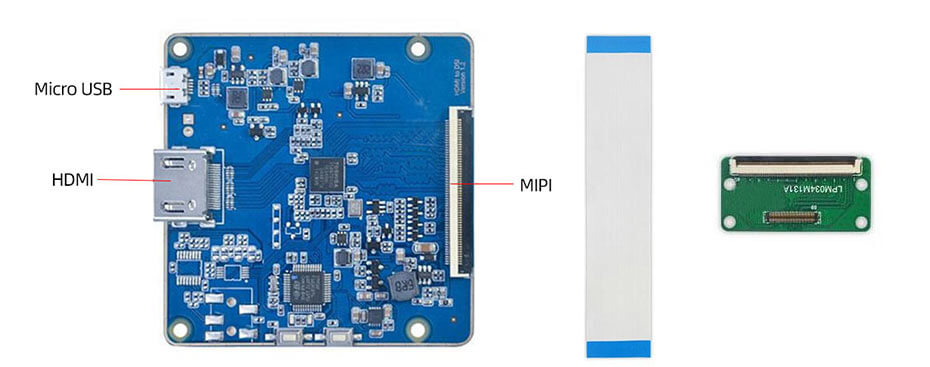

EV101WXM-N10 10.1 Inch TFT LCD Display 1280x800 LVDS LCD Panel With Driver Board

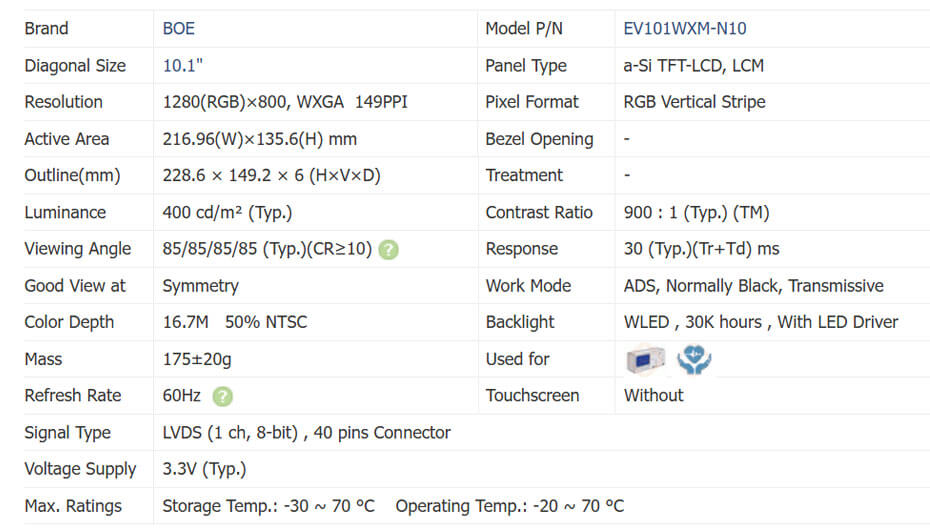

Part No.:EV101WXM-N10
Size:10.1″ inch
Resolution:1280x800
Panel Interface:LVDS (1 ch,8-bit)
Display mode:ADS,Transmissive

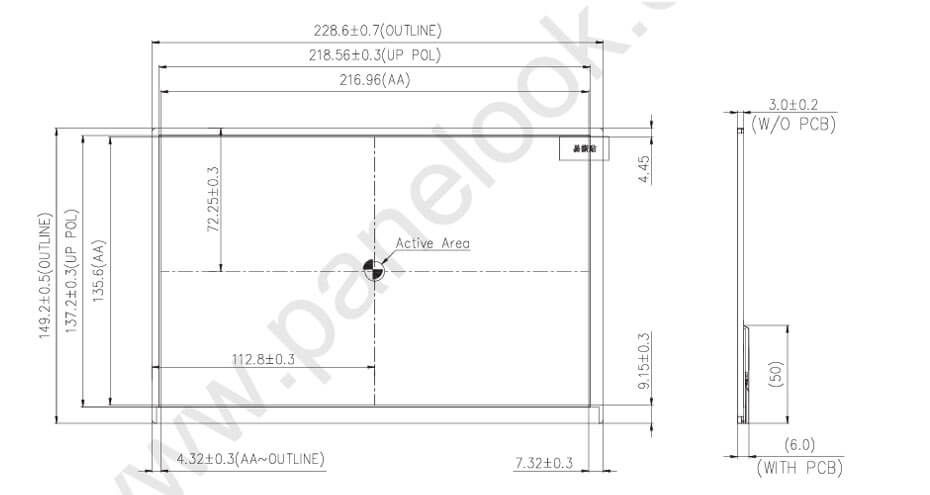

Outline Dimension:228.6x149.2x6mm
Active Area:216.96x135.6mm
Viewing Angle L/R/U/D:85/85/85/85 (Typ.)
Brightness（cd/m2）:400cd/m²(Typ.)
Operation / Storage Temp:-20~70°C / -30~70°C
Touch:no

10.1 Inch LCD Display Overview
The EV101WXM-N10 is a 10.1 inch diagonal a-Si TFT-LCD display panel with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 70°C . It's general features are summarized by Panelook in the following: WLED Backlight, With LED Driver .
