1.38 Inch Circular Display 240x240 SPI IPS Round LCD Display For Wearable

Part No.:ET140CR01-H
Size:1.38″ inch
Resolution:240x240
Panel Interface:SPI
Display mode:Transmissive
Outline Dimension:37.4x39.04mm
Active Area:35.14x35.14mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:400(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

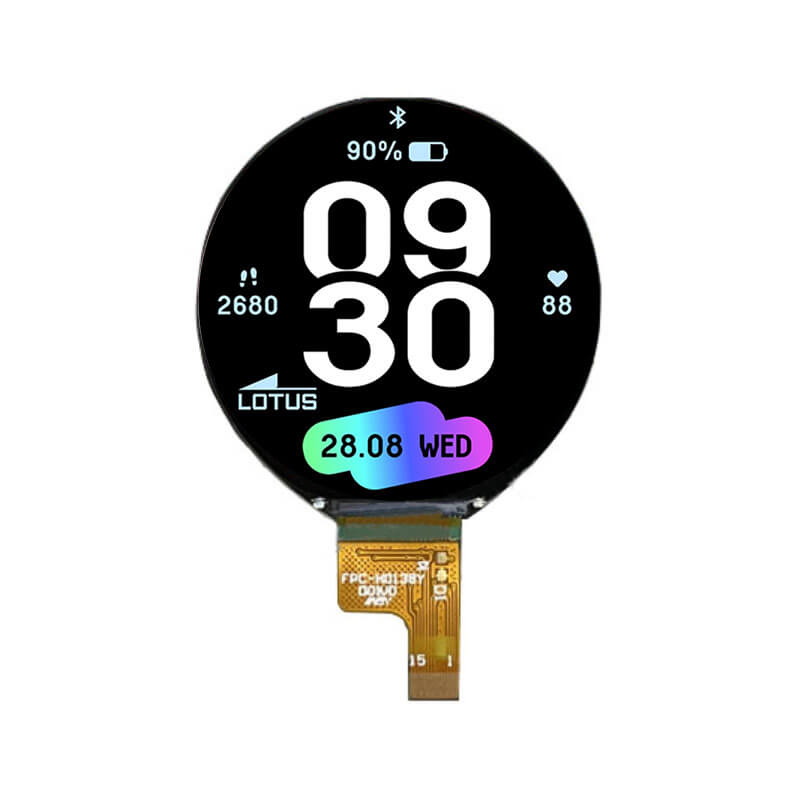

1.38 Inch Circular LCD Display Overview
ET140CR01-H is a 1.38-inch circular transmissive IPS LCD display for wearable applications. It features a 240 × 240 resolution with an SPI interface, delivering 400 cd/m² typical brightness within a 35.14 × 35.14 mm active area. The display offers wide 85° viewing angles, a 37.4 × 39.04 mm outline, operates from –20 to 70 °C, supports storage from –30 to 80 °C, and is supplied without touch functionality.
