0.48"-5" AMOLED

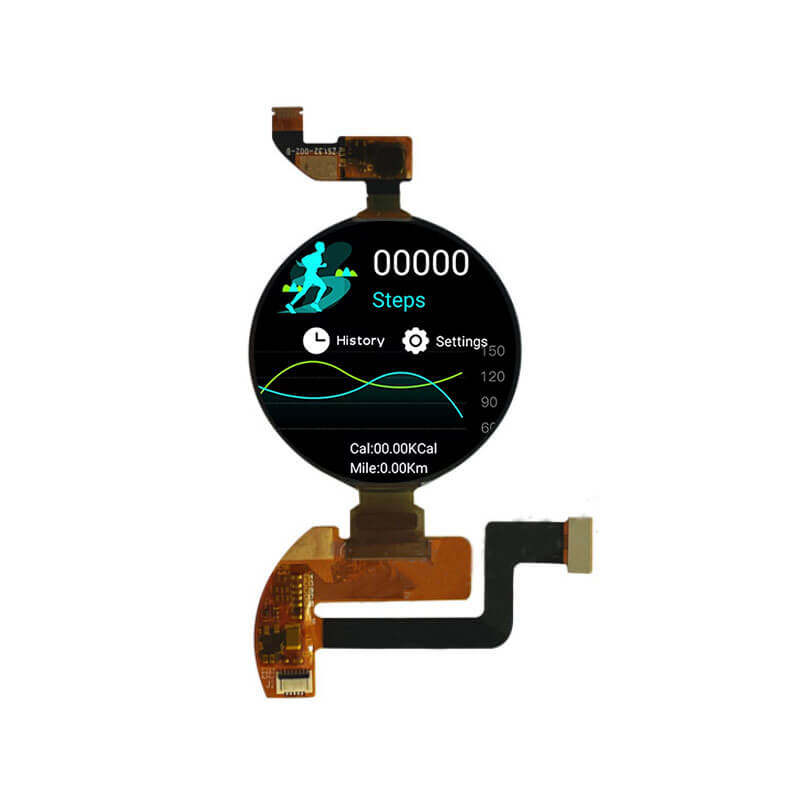

1.32 Inch Circular Display 466x466 MIPI IPS 700nits High Brightness Round AMOLED Display With On-Cell Touch

Part No.:ET013AM01-HT
Size:1.32″ inch
Resolution:466x466
Panel Interface:MIPI
Display mode:AM-OLED
Outline Dimension:36.35x36.35mm
Active Area:33.55x33.55mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:700(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:yes

1.32 Inch Circular Display Overview
ET013AM01-HT is a 1.32-inch circular AM-OLED display designed for wearable applications. It features a 466 × 466 resolution with a MIPI interface, delivering 700 cd/m² typical brightness and vivid self-emissive performance. The display has an active area of 33.55 × 33.55 mm, wide 85° viewing angles, a 36.35 × 36.35 mm outline, operates from –20 to 70 °C, supports storage from –30 to 80 °C, and includes on-cell capacitive touch functionality.

More 1.32 Inch Circular Display For Reference

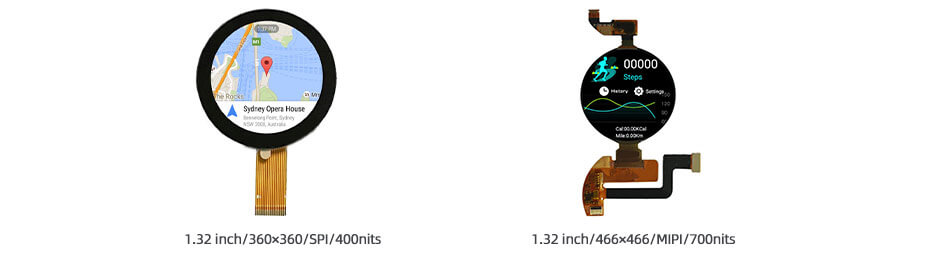

ET013CR02-H (LCD, 360x360, SPI, 400nits, -20~70°C, 35.88x38.44mm)
ET013AM01-HT (OLCD, 466X466, MIPI, 700nits, -20~70°C, 36.35x36.35mm)
