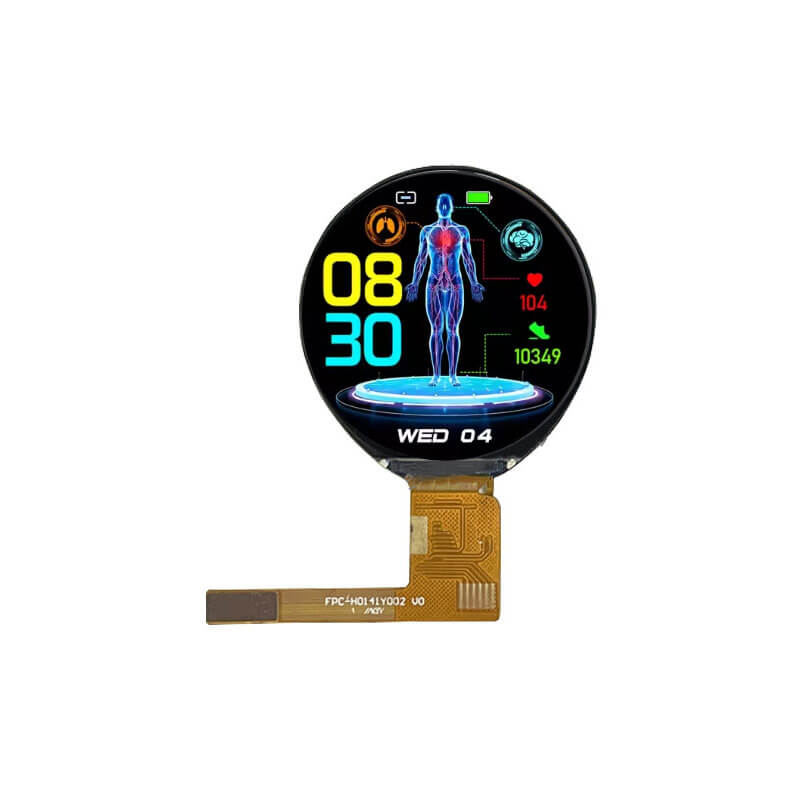

1.39 Inch Circular Display 360x360 SPI IPS Round LCD Display For Wearable

Part No.:ET141CR01-H
Size:1.39″ inch
Resolution:360x360
Panel Interface:SPI
Display mode:Transmissive
Outline Dimension:37.8x39.77mm
Active Area:35.31x35.31mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:400(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

1.39 Inch Circular Display Overview
ET141CR01-H is a 1.39-inch circular transmissive IPS LCD display designed for wearable applications. It features a 360 × 360 resolution with an SPI interface, providing 400 cd/m² typical brightness within a 35.31 × 35.31 mm active area. The display offers wide 85° viewing angles, a 37.8 × 39.77 mm outline, operates from –20 to 70 °C, supports storage from –30 to 80 °C, and is supplied without touch functionality.

More 1.39 Inch Circular Display For Reference
ET141CR01-H (LCD, 360x360, SPI, 400nits, -20~70°C, 37.8x39.77mm)
ET140CR01-AT (OLCD, 454x454, MIPI, 300nits, -20~70°C, 42.8x42.8mm)
