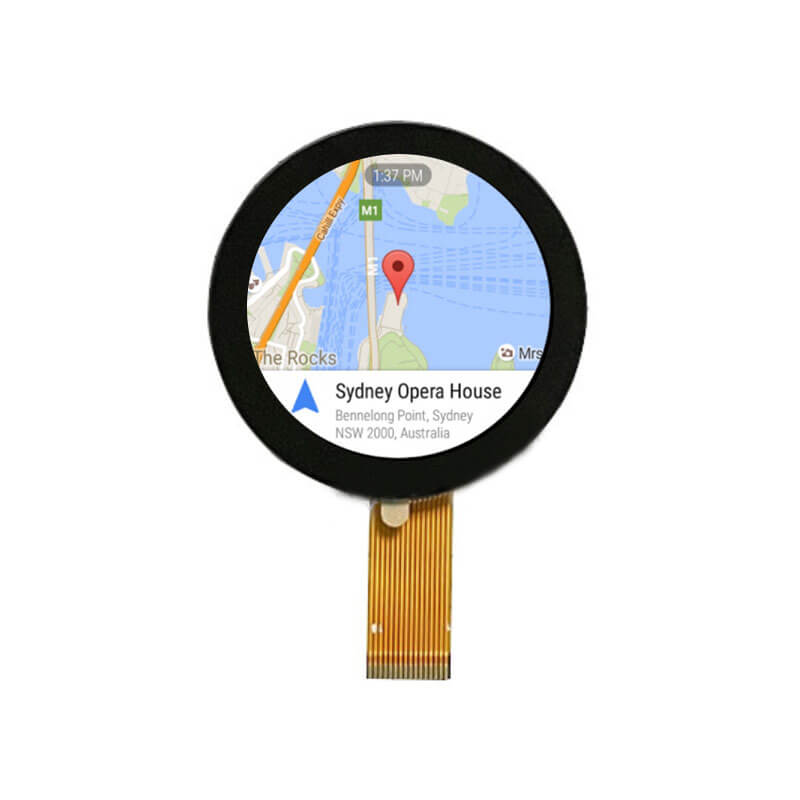

1.32 Inch Circular Display 360x360 SPI IPS Round LCD Display For Wearable

Part No.:ET013CR02-H
Size:1.32″ inch
Resolution:360x360
Panel Interface:SPI
Display mode:Transmissive
Outline Dimension:35.88x38.44mm
Active Area:33.48x33.48mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:400(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

1.32 Inch Circular LCD Display Overview
ET013CR02-H is a 1.32-inch circular transmissive IPS LCD display for wearable applications. It features a 360 × 360 resolution with an SPI interface, delivering 400 cd/m² typical brightness within a 33.48 × 33.48 mm active area. The display offers wide 85° viewing angles, a 35.88 × 38.44 mm outline, operates from –20 to 70 °C, supports storage from –30 to 80 °C, and is supplied without touch functionality.

More 1.32 Inch Circular LCD Display For Reference
ET013CR02-H (LCD, 360x360, SPI, 400nits, -20~70°C, 35.88x38.44mm)
ET013AM01-HT (OLCD, 466X466, MIPI, 700nits, -20~70°C, 36.35x36.35mm)
