0.48"-5" LCD Display (1.3")

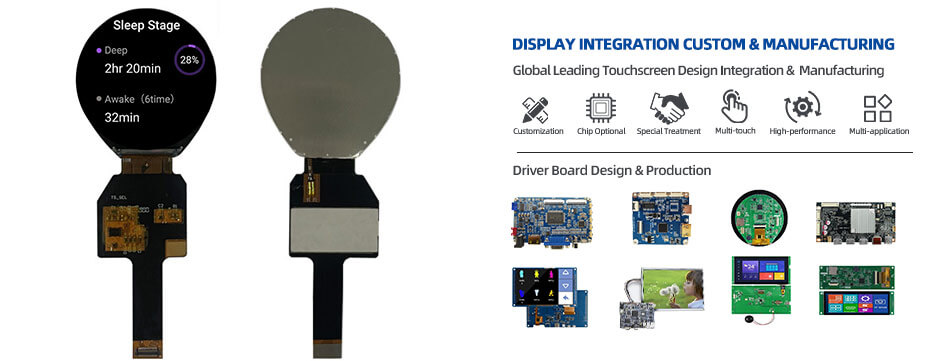

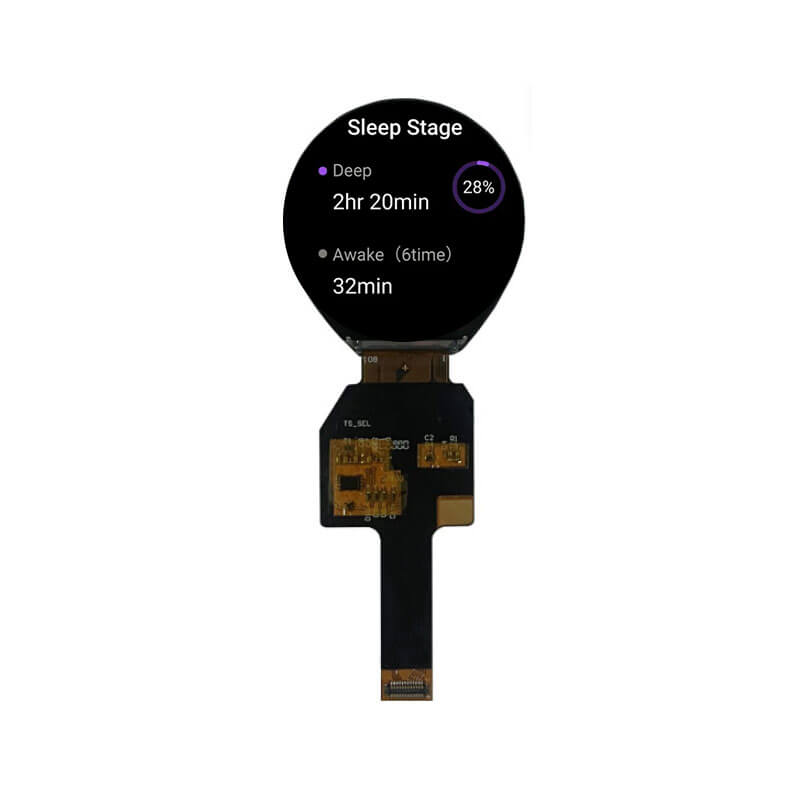

1.3 Inch Circular Display 360x360 SPI IPS Round LCD Display With In-Cell Touch For Wearable

Part No.:ET013CR01-H
Size:1.3″ inch
Resolution:360x360
Panel Interface:SPI
Display mode:Transmissive
Outline Dimension:35.14x35.57mm
Active Area:32.886x32.886mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:400(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:yes

1.3 Inch Circular LCD Display Overview
ET013CR01-H is a 1.3-inch circular transmissive IPS LCD display for wearable applications. It features a 360 × 360 resolution with an SPI interface, providing 400 cd/m² typical brightness within a 32.886 × 32.886 mm active area. The display offers wide 85° viewing angles, a 35.14 × 35.57 mm outline, operates from –20 to 70 °C, supports storage from –30 to 80 °C, and includes in-cell capacitive touch functionality.

More 1.3 Inch Circular LCD Display For Reference
ET013CR01-TV (320x320, MIPI, 350nits, -20~70°C, 36.07x39.16mm)
ET013QV03-TT (240x240, SPI, 450nits, -10~60°C, 35.6x37.74mm)
ET013CR01-H (360x360, SPI, 400nits, -20~70°C, 35.14x35.57mm, In-Cell Touch)
