0.48"-5" LCD Display (1.3")

1.3 Inch Square Display 240x240 IPS SPI TFT LCD Display

Part No.:ET013QV01-Z
Size:1.3″ inch
Resolution:240x240
Panel Interface:SPI
Display mode:Transmissive

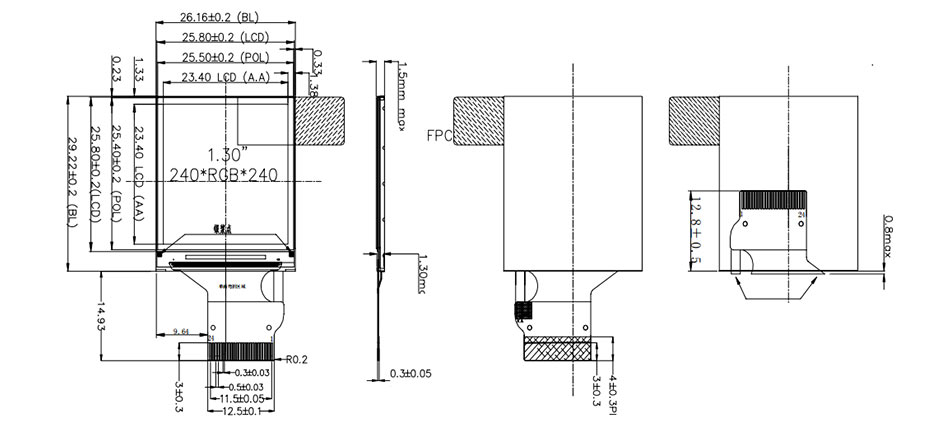

Outline Dimension:26.16x29.22mm
Active Area:23.4x23.4mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:250(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

1.3 Inch Square Display Overview
1.3 Inch Square Display 240x240 IPS SPI TFT LCD Display.

More 1.3 Inch Square Display For Reference
ET013QV05-T (240x240, CPU/SPI, IPS, 450nits, -20~70°C, 26.2x29.22mm)
ET013SQ01-R (128x128, CPU/RGB, IPS, 800nits, -20~70°C, 26x29.15mm)
ET013QV01-Z (240x240,SPI, IPS, 250nits, -20~70°C, 26.16x29.22mm)
