0.48"-5" LCD Display (1.28”)

1.28 Inch Circular Display 240x240 SPI IPS 500nits High Brightness Round LCD Display With Capacitive Touch

Part No.:ET013CR11-TT
Size:1.28″ inch
Resolution:240x240
Panel Interface:SPI
Display mode:Transmissive
Outline Dimension:44x44mm
Active Area:32.4x32.4mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:500(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:yes

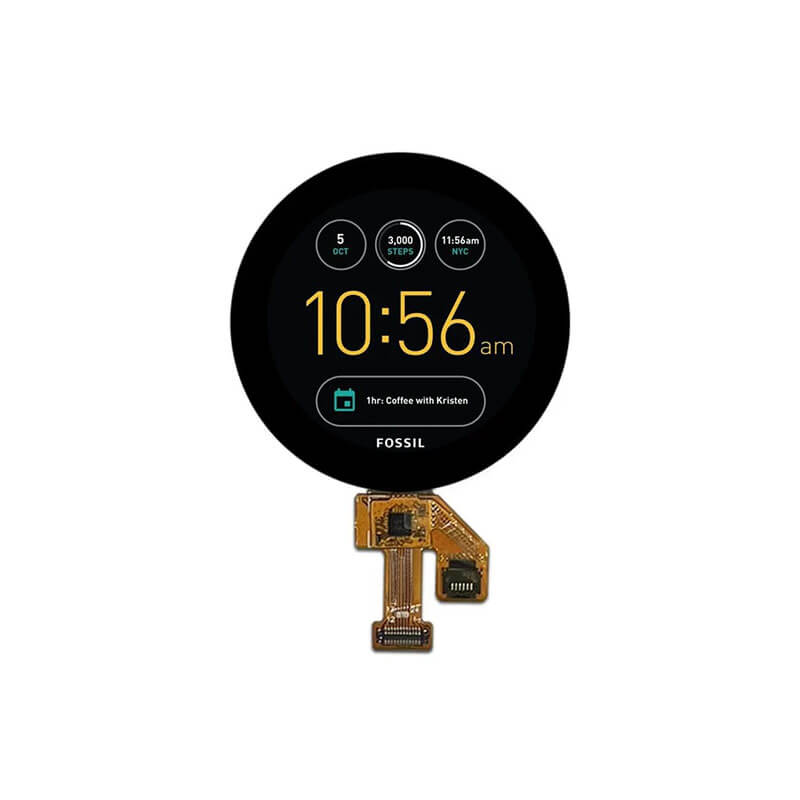

1.28 Inch Circular LCD Display Overview
ET013CR11-TT is a 1.28-inch circular transmissive IPS LCD display designed for wearable devices. It features a 240 × 240 resolution with an SPI interface, delivering 500 cd/m² typical brightness and wide 85° viewing angles. The display has an active area of 32.4 × 32.4 mm, a 44 × 44 mm outline, operates from –20 to 70 °C, supports storage from –30 to 80 °C, and includes capacitive touch functionality.

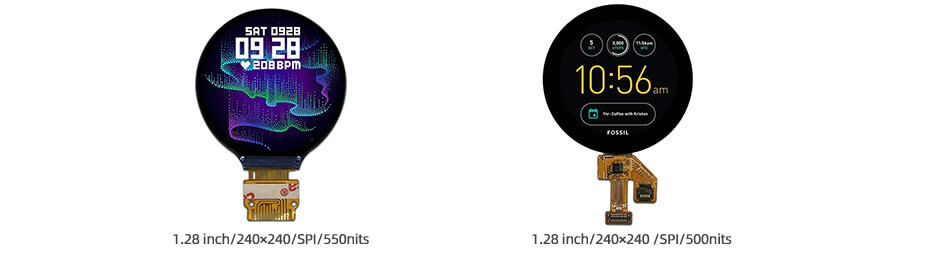

More 1.28 Inch Circular LCD Display For Reference
ET013CR10-T (240x240, SPI, 550nits, -20~70°C, 35.6x38.1mm)
ET013CR11-TT (240x240, SPI, 500nits, -20~70°C, 44x44mm, CTP)
