1.28 Inch Square Display Overview

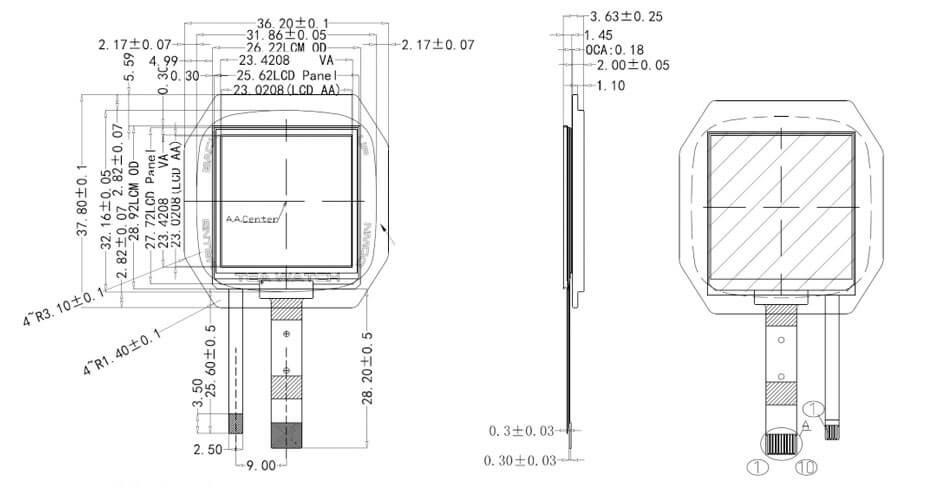

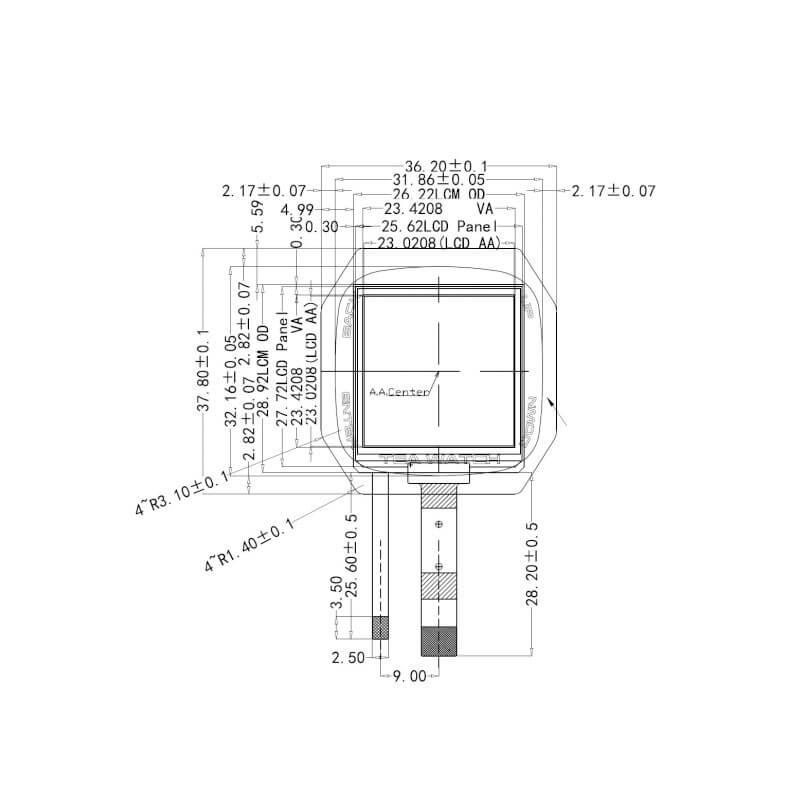

ET013QCI-OL is a 1.28-inch diagonal square TFT LCD display with a 176×176 resolution, featuring an IPS panel and an SPI interface. The display operates in transmissive mode and provides an active area of 23.0208(W)×23.0208(H) mm, with an outline dimension of 36.2(W)×37.8(H) mm. It offers a viewing angle of 80° in all directions (L/R/U/D). ET013QCI-OL is designed for reliable operation over a wide temperature range of –20 °C to 70 °C and supports storage from –30 °C to 80 °C. This model does not include touch functionality.
