1.2 Inch Square Display 240x240 IPS CPU TFT LCD Display

1.2 Inch Square Display Overview

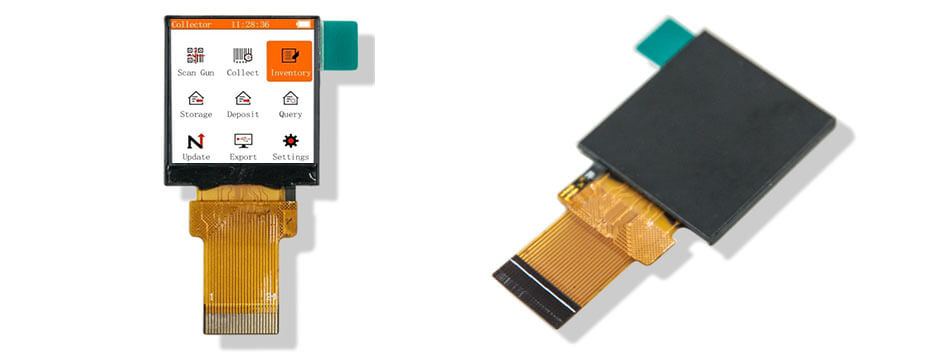

ET012SQ02-TV is a 1.2-inch diagonal square TFT LCD display featuring a 240×240 resolution, with pixels arranged in an IPS structure and supporting a CPU interface. The display operates in transmissive mode and provides an active area of 21.96(W)×21.96(H) mm, with an outline dimension of 25.76(W)×28.16(H) mm. ET012SQ02-TV delivers a typical brightness of 150 cd/m² and offers a viewing angle of 80° in all directions (L/R/U/D). It is designed for reliable operation over a wide temperature range of –20 °C to 70 °C and storage from –30 °C to 80 °C. This model does not include touch functionality.

More 1.2 Inch Square Display For Reference
ET012SQ01-TV (240x240, SPI, IPS, 150nits, -10~60°C, 25.76x28.16mm)
ET012SQ02-TV (240x240, CPU, IPS, 150nits, -20~70°C, 25.76x28.16mm)
