0.48"-5" LCD Display (2")

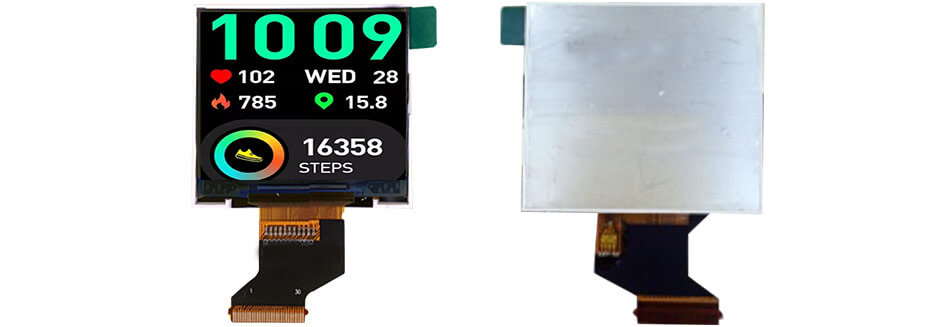

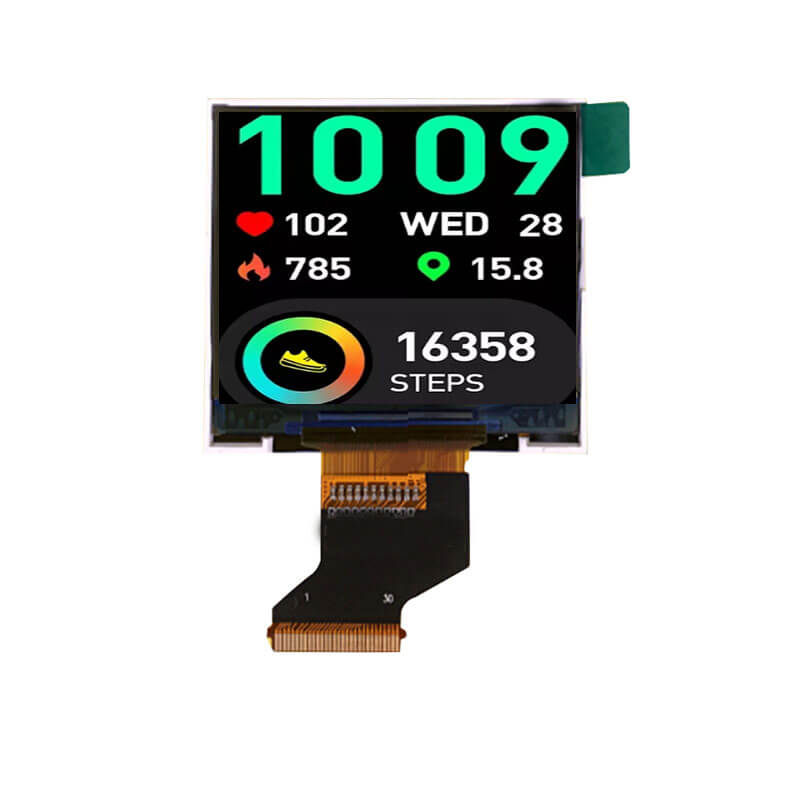

2 Inch Transflective Display IPS 320x240 CPU Sunlight Readable LCD Display For Handheld PDA

Part No.:ET020TR02-R
Size:2″ inch
Resolution:320x240
Panel Interface:CPU
Display mode:Transflective
Outline Dimension:46.1x40.96mm
Active Area:40.8x30.6mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:150(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

2 Inch Transflective LCD Display Overview
The ET020TR02-R is a 2-inch transflective IPS LCD display designed for handheld PDAs, featuring a 320×240 resolution and CPU interface. It has a transmissive/reflective panel with an active area of 40.8×30.6 mm and overall dimensions of 46.1×40.96 mm. The display provides 150 cd/m² brightness, 80° viewing angles in all directions, operates between –20–70 °C, can be stored from –30–80 °C, and does not support touch functionality.

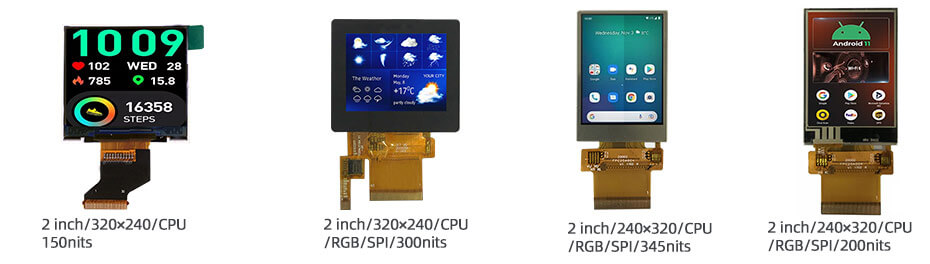

More 2 Inch Transflective LCD Display For Reference
ET020TR02-R (320x240, CPU, 150nits, -20~70°C, 46.1x40.96mm)
ET020TR01-KT (320x240, CPU/RGB/SPI, 300nits, -20~70°C, 54.5x47.56mm, CTP)
ET020TR02-K (320x240,CPU/RGB/SPI, 345nits, -20~70°C, 35.8x52.1mm)
ET020TR02-KRT (320x240, CPU/RGB/SPI, 200nits, -20~70°C, 35.8x52.1mm, 4w-RTP)
COM20H2R04OLC (320x240, CPU, 10nits, -20~70°C)
