0.85 Inch Square Display Overview

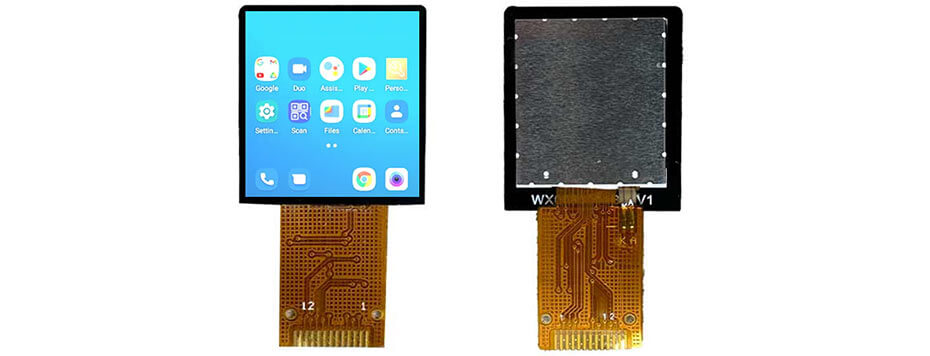

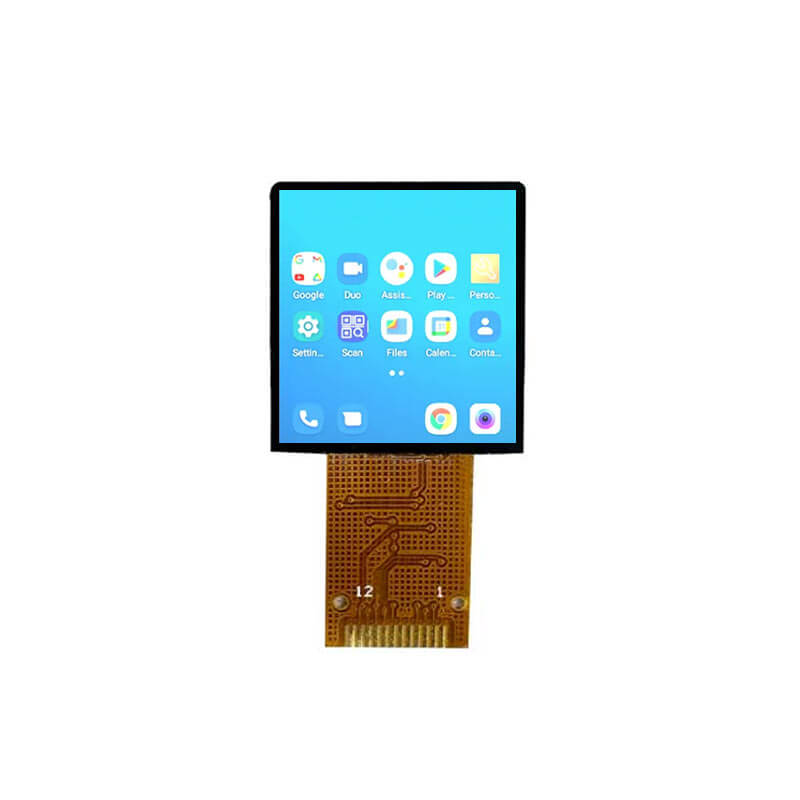

ET085SQ01-R is a 0.85-inch diagonal square IPS TFT-LCD display with a transmissive panel. It supports a resolution of 128 × 128 pixels, featuring an active area of 15.21 × 15.21 mm and an outline dimension of 21.3 × 25.75 mm. The display offers a typical brightness of 450 cd/m² and viewing angles of 85°/85°/85°/85° (L/R/U/D). ET085SQ01-R does not include touch functionality and operates within –10 °C to 60 °C, with a storage temperature range of –20 °C to 70 °C, making it suitable for compact, high-visibility display applications.
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
