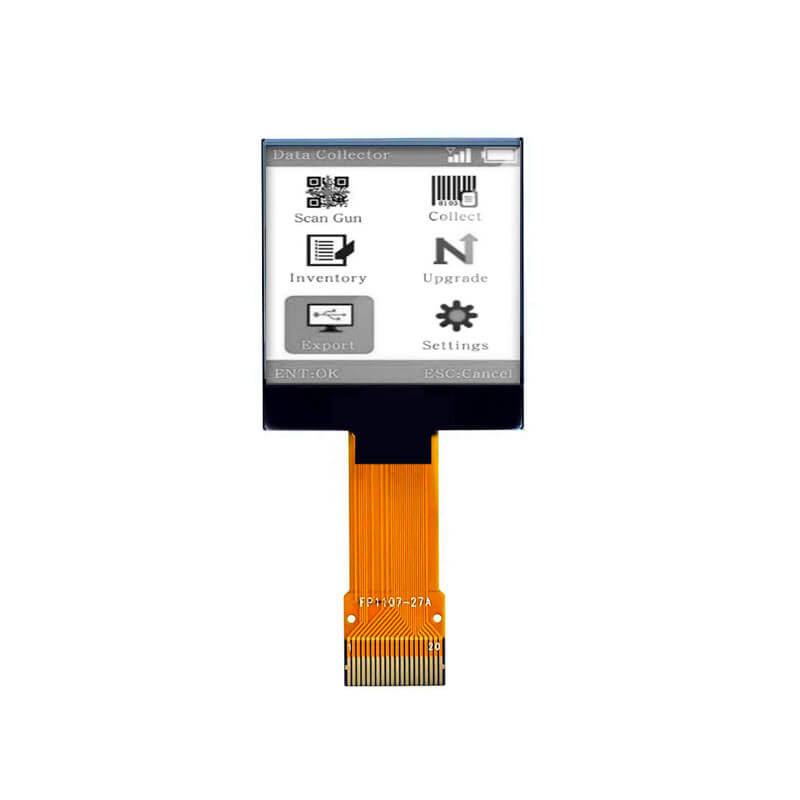

1.12 Inch Square Display 128x128 CPU/RGB/SPI Wide Temperature AMOLED Display

Part No.:ET011SQ01-R
Size:1.12″ inch
Resolution:128x128
Panel Interface:CPU/RGB/SPI
Display mode:Mono(White)
Outline Dimension:25.9x41.2mm
Active Area:20.076x20.076mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:200(Typ.)
Operation / Storage Temp:-40~70°C / -40~85°C
Touch:no

1.12 Inch Square Display Overview
ET011SQ01-R is a 1.12-inch diagonal square AMOLED display with a monochrome (white) transmissive panel. It supports a resolution of 128 × 128 pixels, featuring an active area of 20.076 × 20.076 mm and an outline dimension of 25.9 × 41.2 mm. The display offers a typical brightness of 200 cd/m² and viewing angles of 80°/80°/80°/80° (L/R/U/D). ET011SQ01-R supports CPU, RGB, and SPI interfaces, does not include touch functionality, and operates across a wide temperature range of –40 °C to 70 °C, with a storage range of –40 °C to 85 °C, making it suitable for rugged or industrial applications.
