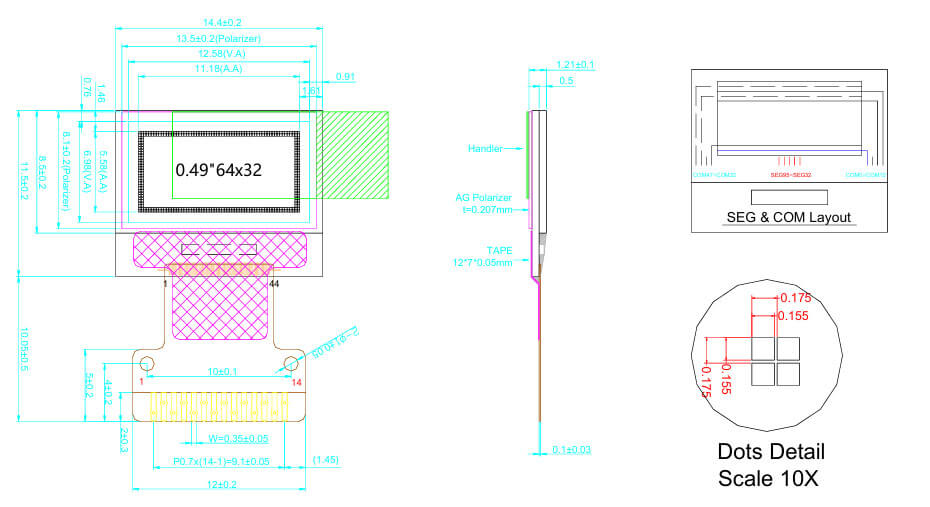

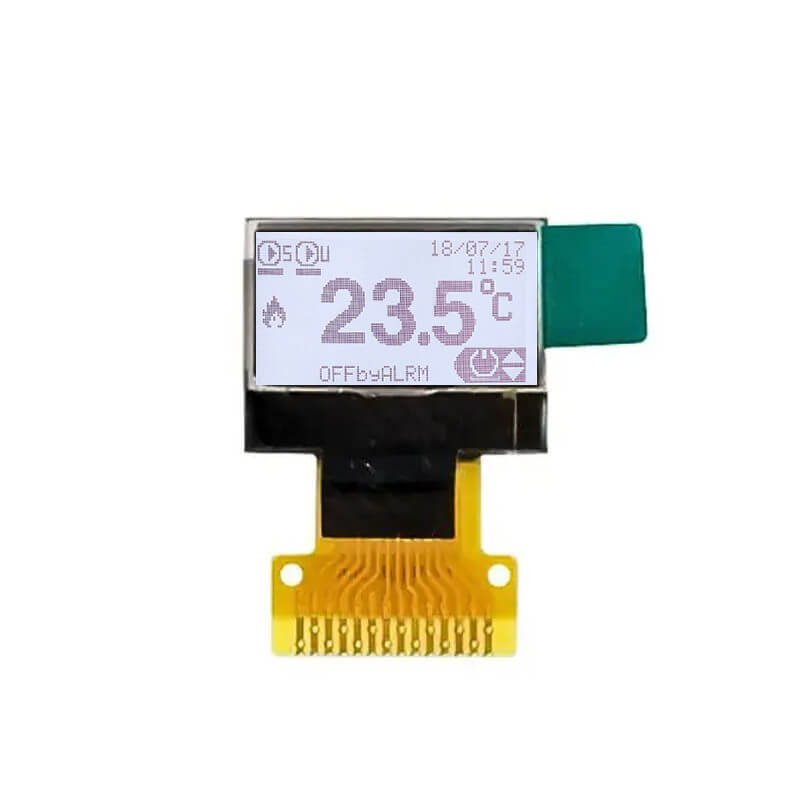

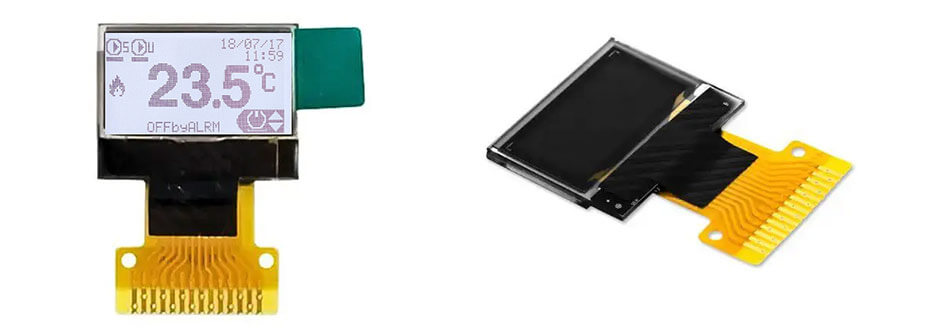

ET049PM01-TO is a 0.49-inch diagonal PMOLED display product featuring a monochrome OLED panel with self-emissive technology. ET049PM01-TO supports a 64 × 32 resolution and communicates via an I²C interface, making it ideal for compact embedded and healthcare applications. It features an active area of 11.18(W) × 5.58(H) mm and an outline dimension of 14.5(W) × 11.6(H) mm. The display delivers a typical brightness of 180 cd/m² and offers a wide viewing angle of 80° (Left/Right/Up/Down) for clear image visibility from multiple directions. Designed for demanding environments, ET049PM01-TO supports an operating temperature range of -40°C to +70°C and a storage temperature range of -40°C to +85°C, ensuring reliable performance in industrial and healthcare applications. This module is supplied without a touch panel.
More 0.49 Inch Healthcare & Medical Display Solution For Reference
ET049PM01-TO (OLED, 64×32, I²C, -40~70°C, 14.5×11.6mm)
SY049LDM01(OLED, 1920×1080, MIPI, -20~70°C, 52.13×9.09mm)
High Image Quality
–Sharp, accurate images for medical diagnostics.
High Brightness
–Excellent visibility in various lighting conditions.
Wide Viewing Angle
–IPS technology ensures clear viewing from any angle.
24/7 Reliable Operation
–Stable performance for continuous medical use.
Wide Temperature Range
–Reliable in demanding healthcare environments.
PCAP Touch Support
–Smooth, accurate touch with glove compatibility.
Low Power Consumption
–Energy-efficient for portable medical devices.
Long-Term Supply
–Stable lifecycle for medical equipment projects.
Custom Design Support
–Brightness, touch, interface, and optical bonding customization.
OEM & ODM Service
–End-to-end display solutions for healthcare applications.
Patient Monitoring Systems
Medical Imaging Equipment
Diagnostic Medical Equipment
Portable Ultrasound Devices
Ventilators & Respiratory Devices
Laboratory & Clinical Analyzers
Home Healthcare Devices
Medical Tablets & Mobile Healthcare Devices
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
