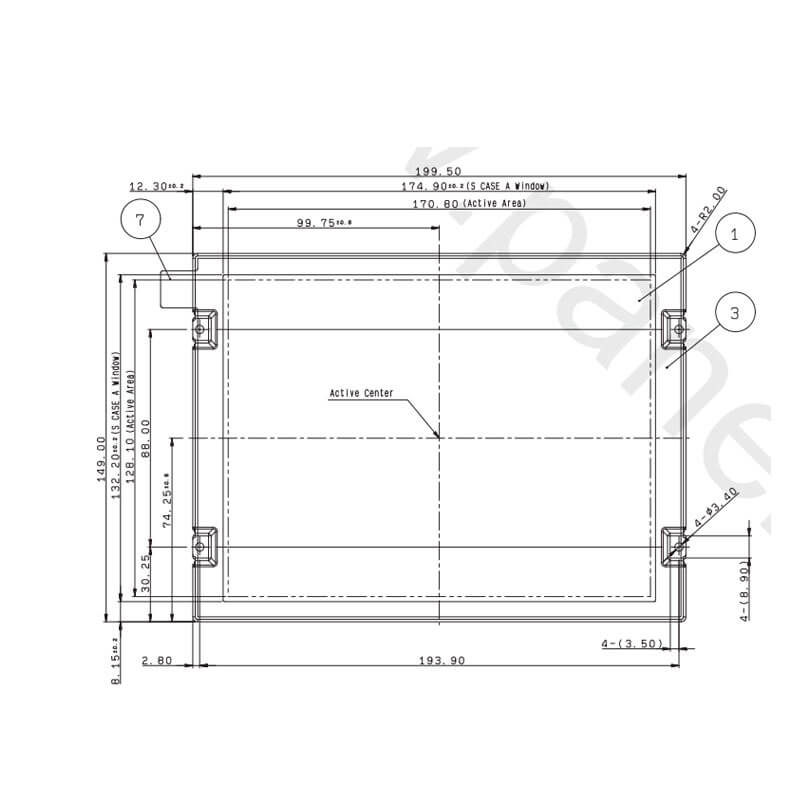

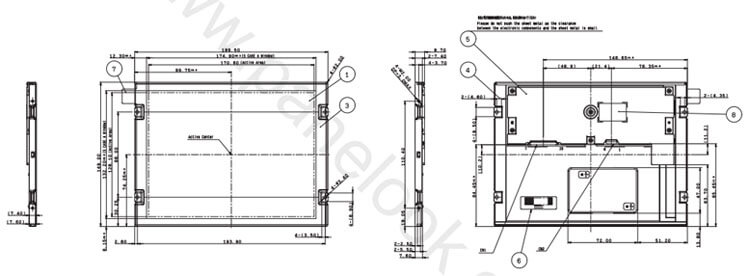

COM84T8M02SSS is a 8.4 inch diagonal a-Si TFT-LCD display screen product from Ortustech, with a built-in WLED backlight, without touch screen.COM84T8M02SSS supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.8(W)×128.1(H) mm, outline size of 199.5(W)×149(H)×10.2(D) mm, viewing area size of 174.9(W)×132.2(H) mm, net weight of 310g (Typ.). As a FFS, Normally Black, Transmissive LCM product, COM84T8M02SSS can provides 600 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 40 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 61% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours. COM84T8M02SSS utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
-Sunlight Readable Low PowerConsumption
-Supply Long-term Stable
-High-Mix/Low-Volume Production
-Customer-oriented Support System
-Customized Product Support
