0.48"-5" LCD Display (5")

ZS050YMM-J40 5 Inch Circular Display 1080x1080 MIPI Round LCD Display with Touch & HDMI Driver Board

Part No.:ZS050YMM-J40
Size:5″ inch
Resolution:1080x1080
Panel Interface:MIPI (4 data lanes)
Display mode:Transmissive
Outline Dimension:136.531x132.208mm
Active Area:127.008x127.008mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:350cd/m²
Operation / Storage Temp:-20~60°C / -30~75°C
Touch:no

ZS050YMM-J40 5 Inch Circular Display 1080x1080 MIPI Round LCD Display with Touch & HDMI Driver Board Overview
ZS050YMM-J40 is a 5.0-inch circular LTPS TFT-LCD display featuring a 1080×1080 resolution, 350 cd/m² brightness, 1300:1 contrast ratio, and 80/80/80/80 wide viewing angle. With a 50-pin MIPI 4-lane interface, 60Hz refresh rate, 16.7M colors, and approximately 70% NTSC color gamut, this high-resolution round display delivers clear and vivid images for embedded devices, instruments, smart home appliances, and other customized display applications. Touchscreen and driver board solutions are also available.
ZS050YMM-J40 5 Inch Circular Display 1080x1080 MIPI Round LCD Display with Touch & HDMI Driver Board

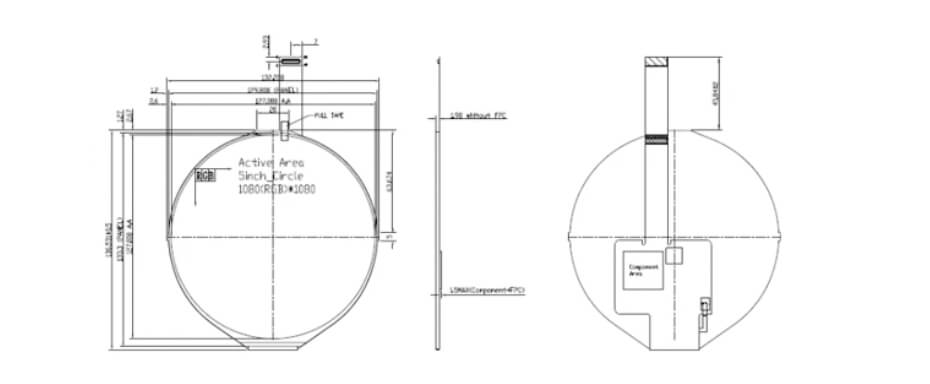

5 Inch Circular Display Drawing

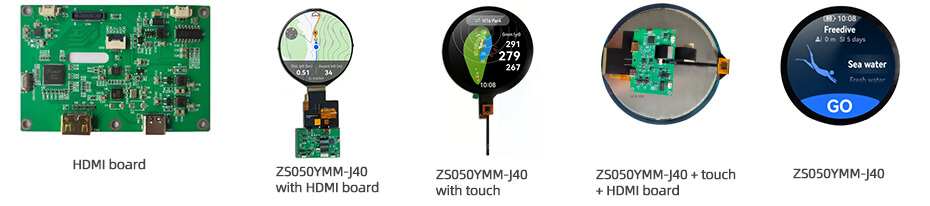

More 5 Inch Circular Display Solution For Reference
ZS050YMM-J40
HDMI board
ZS050YMM-J40 with HDMI board
ZS050YMM-J40 with touch
ZS050YMM-J40 + touch + HDMI board
