TX38D25VM0CAA 14.9 Inch TFT LCD Display 1280x242 LVDS Stretched Bar Display With Driver Board

14.9 Inch LCD Display Overview

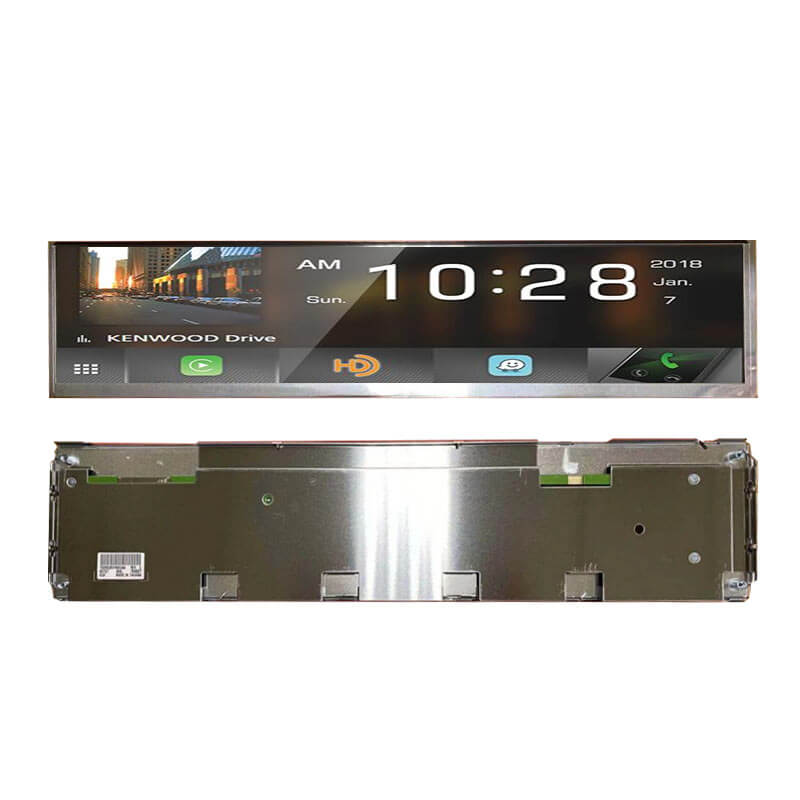

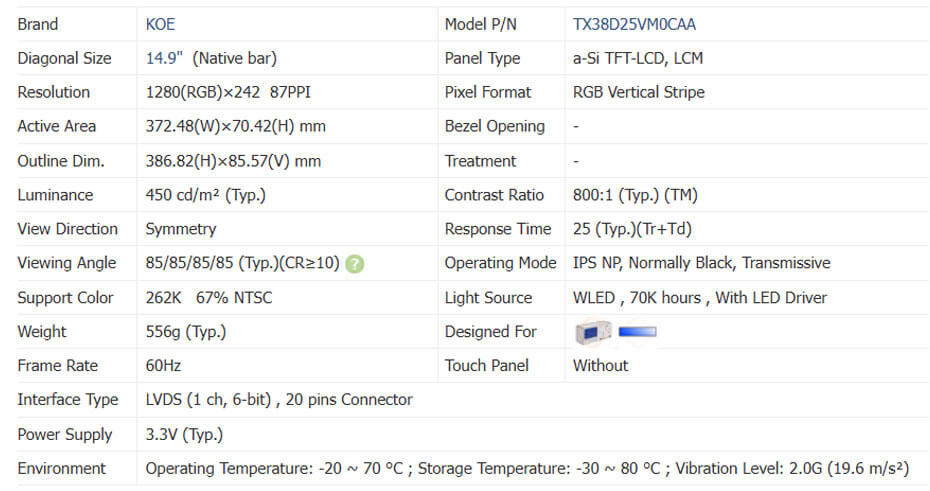

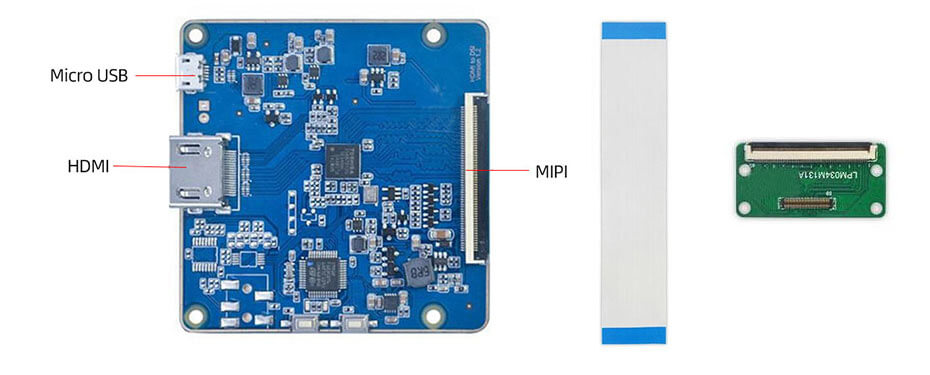

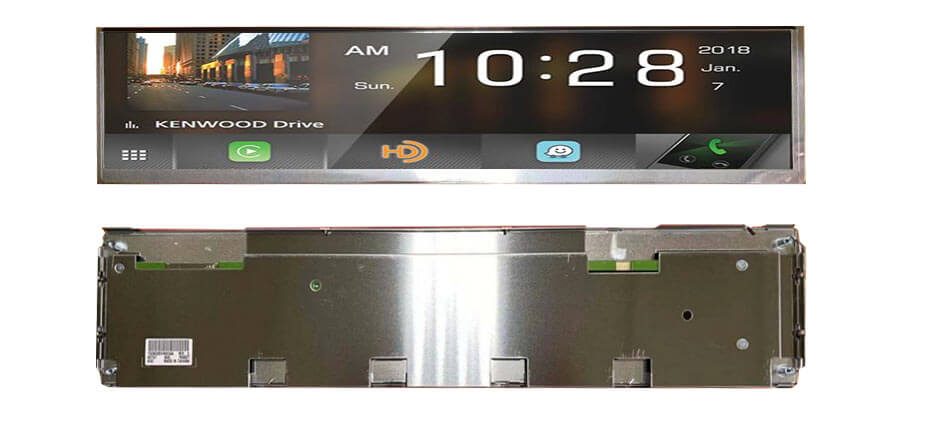

TX38D25VM0CAA supports display 1280(RGB)×242 with aspect ratio of >3:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 372.48(W)×70.42(H) mm, outline size of 386.82(W)×85.57(H) mm, net weight of 556g (Typ.). As a IPS NP, Normally Black, Transmissive LCM product, TX38D25VM0CAA can provides 450 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 67% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, With LED Driver. TX38D25VM0CAA utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

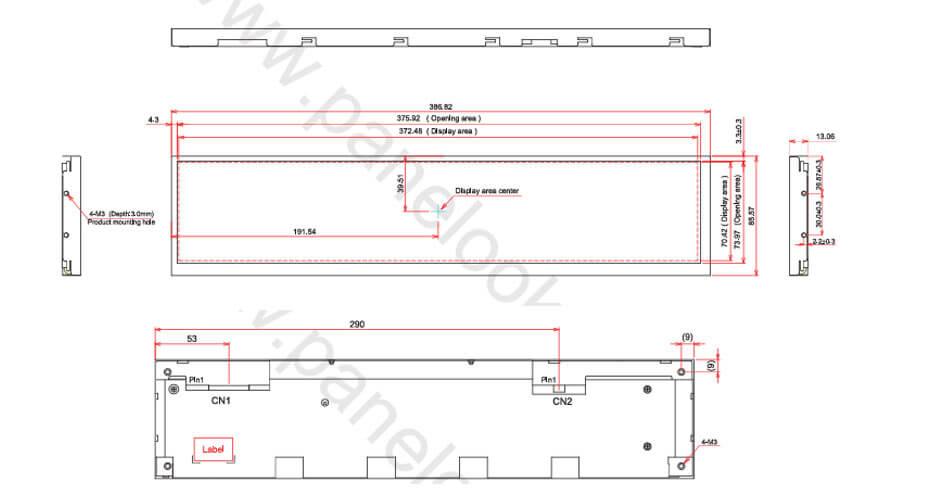

14.9 Inch LCD Display Drawing
