10.2"-17.3" LCD Display (15")

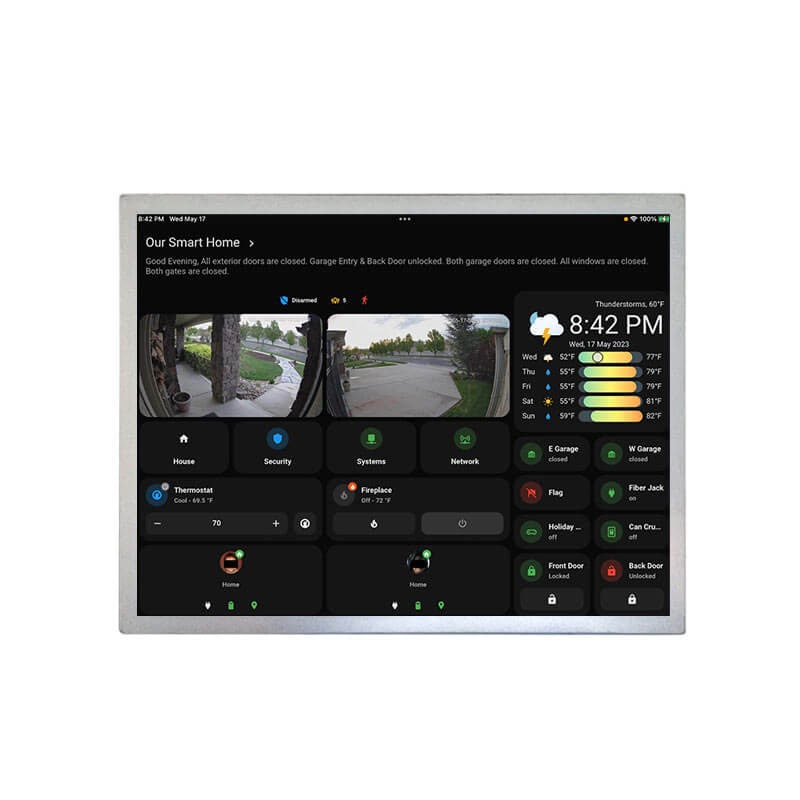

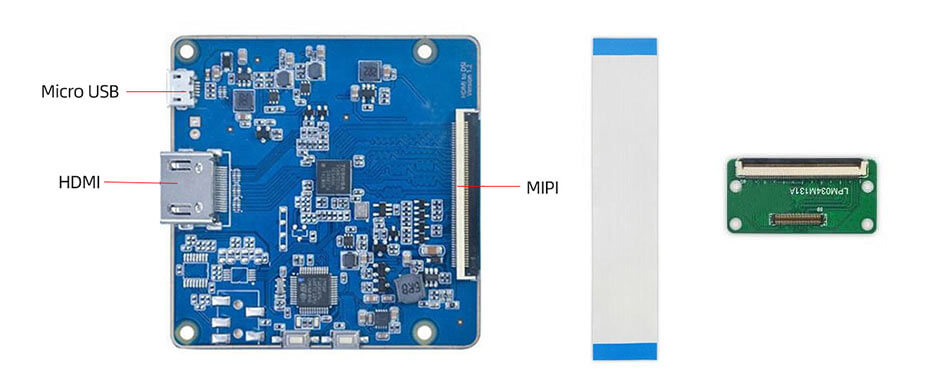

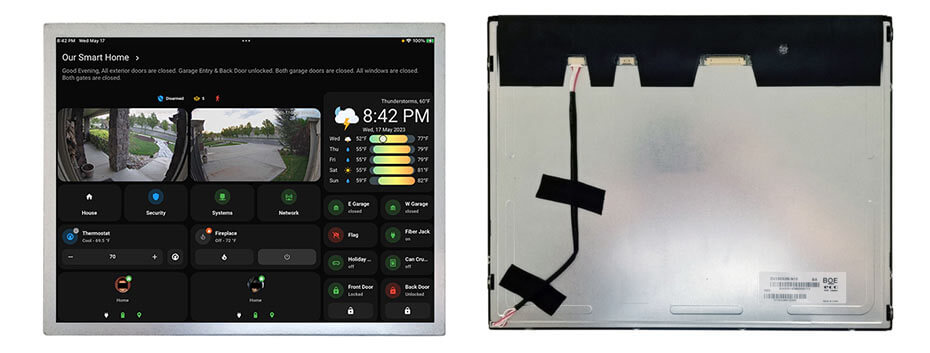

DV150X0M-N10 BOE 15 Inch TFT LCD Display 1024x768 LVDS LCD Panel With Driver Board

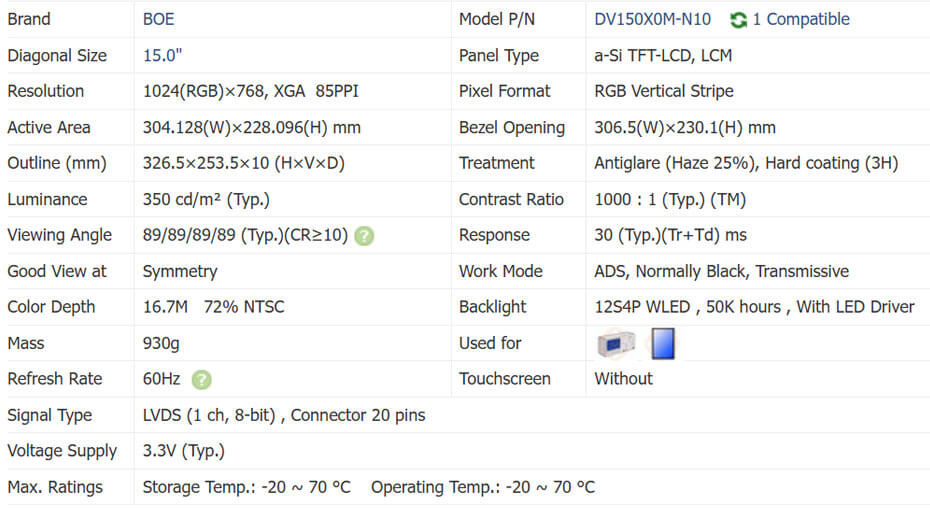

Part No.:DV150X0M-N10
Size:15″ inch
Resolution:1024x768
Panel Interface:LVDS (1 ch,8-bit)
Display mode:ADS,Transmissive
Outline Dimension:326.5x253.5x10mm
Active Area:304.128x228.096mm
Viewing Angle L/R/U/D:89/89/89/89 (Typ.)
Brightness（cd/m2）:350cd/m²
Operation / Storage Temp:-20~70°C / -20~70°C
Touch:no

15 Inch LCD Display Overview
DV150X0M-N10 is a 15.0 inch diagonal a-Si TFT-LCD display panel with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -20 ~ 70°C , and the maximal vibration level of 1.2G (11.76 m/s²). It's general features are summarized by Panelook in the following: Landscape / Portrait, WLED Backlight, Life ≥ 50K hours, With LED Driver, Matte , 7x24hrs usage support.
