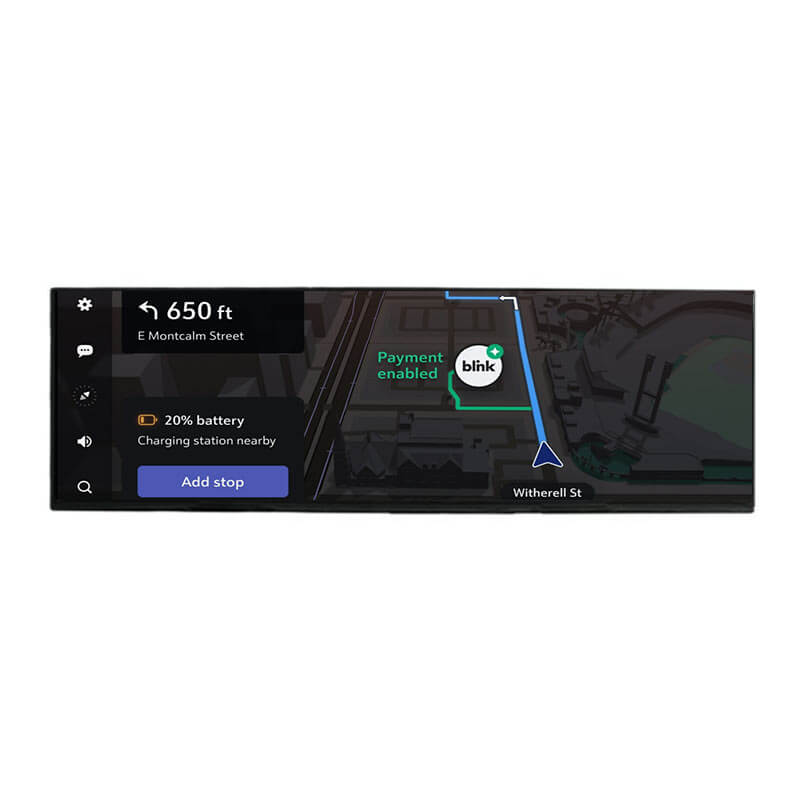

C145HAX01.1 AUO 14.5 Inch TFT LCD Display 2560x720 High Brightness 900nits Wide Temperature LCD Display With Driver Board

14.5 Inch LCD Display Overview
C145HAX01.1 supports display 2560(RGB)×720 with aspect ratio of >3:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 354.816(W)×99.792(H) mm, outline size of 362.42(W)×112.41(H)×28.35(D) mm, with surface treament of Anti Fingerprint + Antiglare, Hard coating (3H), Antireflection, net weight of 650±65g. As a AHVA, Normally Black, Transmissive LCM product, C145HAX01.1 can provides 900 cd/m² display brightness 1500:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, With LED Driver. It's typical vertical frame rate (Fv) is 60Hz.

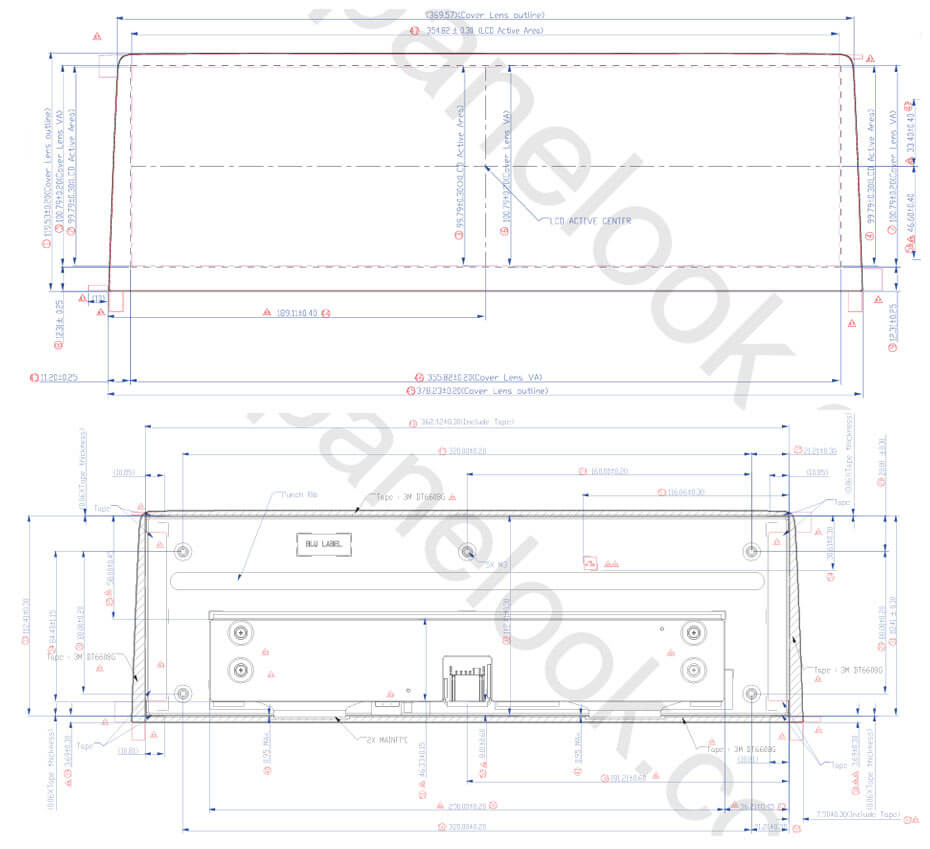

14.5 Inch LCD Display Drawing
