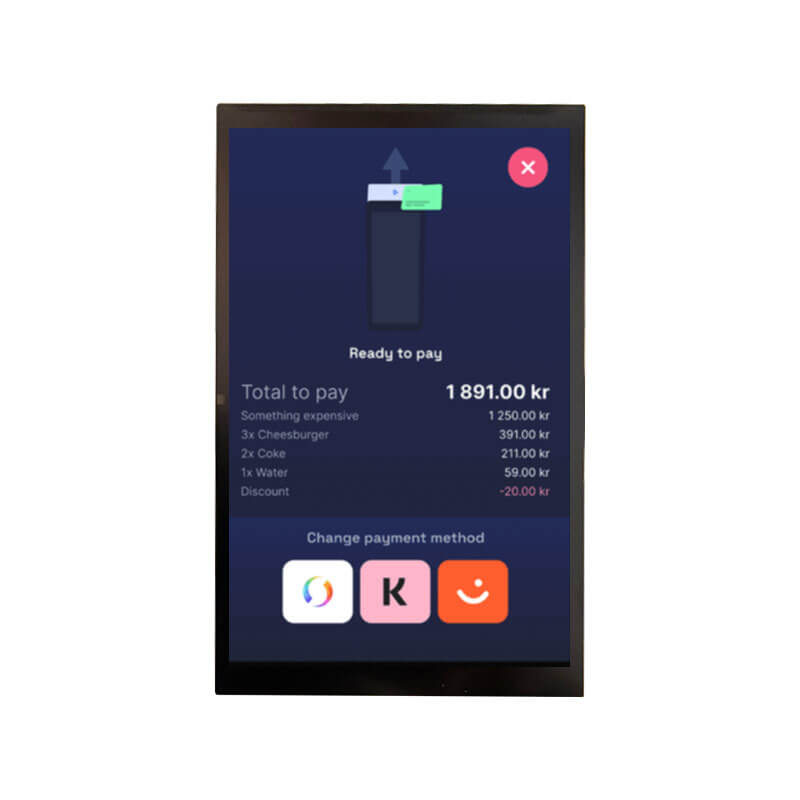

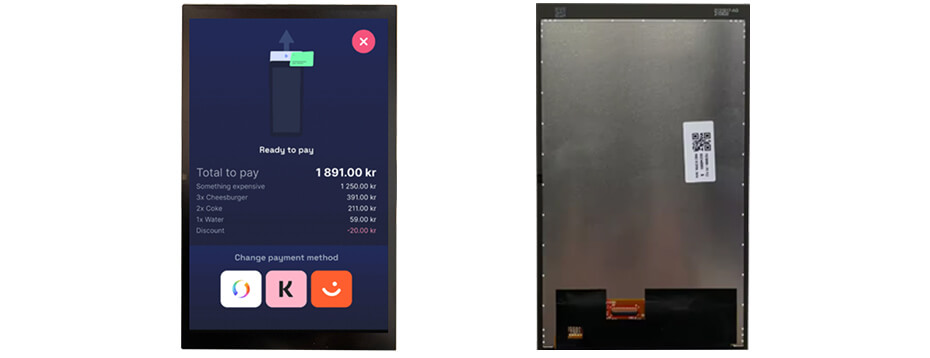

TV070WXM-TV1 supports display 800(RGB)×1280 (WXGA) with aspect ratio of 10:16 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 94.2(W)×150.72(H) mm, outline size of 106.66(W)×173.66(H)×5.2(D) mm, with surface treament of Anti Fingerprint, net weight of 130g (Max.). As a ADS, Normally Black, Transmissive Assembly product, TV070WXM-TV1 can provides 400 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. TV070WXM-TV1 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 39 pins Connector with power supply voltage of 1.8/3.3V (Typ.)(IOVCC/VDD). It's typical vertical frame rate (Fv) is 60Hz.
7 Inch Display With On-Cell For Reference
ET070WS02-BT(Assembly, 1024×600, LVDS, 300nits, -10~60°C, 165×100mm,On-Cell)
TV070WXM-TV1(Assembly, 800×1280, MIPI, 400nits, -20~50°C, 106.66×173.66mm,On-Cell)
ET070AM01-HJT(OLED, 1920×1080, LVDS, 700nits, -35~85°C, 160×94mm,On-Cell)
