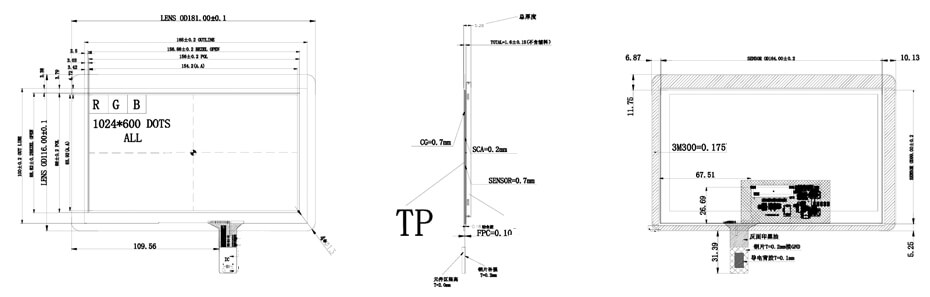

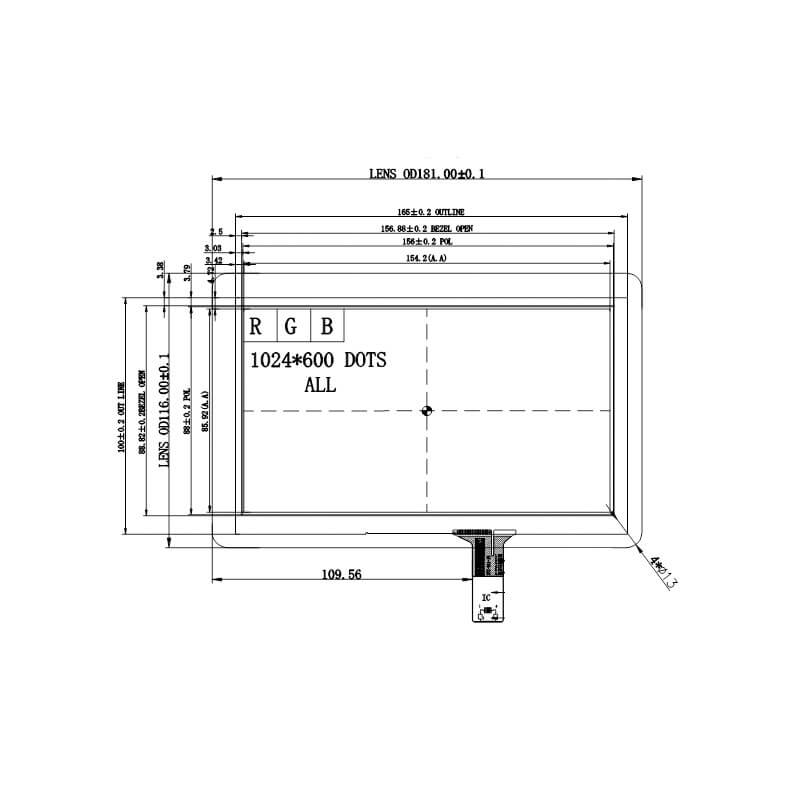

ET070WS02-BT is a 7.0 inch diagonal TFT LCD display product featuring a transmissive display mode. It supports a resolution of 1024×600 with an LVDS interface, delivering clear and stable image performance for embedded and industrial applications. The display features an active area of 154.21(W)×85.92(H) mm, with an outline dimension of 165(W)×100(H) mm. ET070WS02-BT provides a brightness of 300 cd/m² (Typ.) and a wide viewing angle of 85/85/85/85 degrees (L/R/U/D), ensuring good visibility from multiple directions. It supports an operating temperature range from -10°C to 60°C and a storage temperature range from -20°C to 65°C. The module integrates On-Cell Touch functionality, providing an interactive display solution for industrial control panels, HMI systems, and smart devices.
7 Inch Display With On-Cell For Reference
ET070WS02-BT(Assembly, 1024×600, LVDS, 300nits, -10~60°C, 165×100mm,On-Cell)
TV070WXM-TV1(Assembly, 800×1280, MIPI, 400nits, -20~50°C, 106.66×173.66mm,On-Cell)
ET070AM01-HJT(OLED, 1920×1080, LVDS, 700nits, -35~85°C, 160×94mm,On-Cell)
Ultra-Thin Structure
-Integrated touch layer reduces overall module thickness and weight for slimmer device designs.
High Optical Clarity
-Fewer layers improve light transmittance, delivering brighter images and better contrast.
Fast & Accurate Touch Response
-Direct sensor integration ensures smooth, precise multi-touch performance.
Enhanced Durability
-Fewer laminated layers improve structural reliability and reduce failure points.
Lower Power Consumption
-Improved display efficiency helps optimize battery life in portable devices.
Cost-Effective Integration
-Simplified assembly lowers manufacturing complexity and system cost.
Wide Application Compatibility
-Ideal for wearables, industrial control, medical devices, automotive displays, and smart home interfaces.
Custom Cover Glass Support
-Flexible for different shapes, coatings, and industrial design requirements.
Smart Wearables
-Smartwatches, fitness trackers, and AR/VR devices requiring ultra-thin and lightweight touch displays.
Industrial Control Systems
-HMI panels, control terminals, and factory automation equipment demanding reliable touch interaction.
Medical Devices
-Portable monitors, diagnostic equipment, and handheld medical instruments with precise touch control.
Automotive Displays
-Instrument clusters, infotainment systems, and EV charging interfaces with durable touch integration.
Smart Home Devices
-Smart thermostats, security panels, and home control hubs requiring sleek integrated displays.
Consumer Electronics
-Smartphones, handheld gaming devices, and portable multimedia products.
Point-of-Sale (POS) Systems
-Compact payment terminals and self-service kiosks with responsive touch functionality.
Portable Communication Devices
-Rugged handheld radios, GPS terminals, and field service equipment
Bulky Design
-On-Cell integration reduces thickness and weight.
Poor Visibility
-High transmittance with AG/AR improves outdoor readability.
Slow Touch Response
-Fast, accurate, and stable multi-touch performance.
Low Durability
-Rugged design for vibration, impact, and harsh environments.
Complex Integration
-Complete display + touch + board solutions simplify development.
Limited Customization
-Flexible size, shape, brightness, and interface options.
High Power Consumption
-Optimized low-power design for portable devices.
Supply Chain Risks
-In-house R&D and manufacturing ensure stable quality and delivery.
In-House Touch Integration
-Full On-Cell touch design, tuning, and bonding capabilities.
Custom Display Development
-Flexible customization for size, shape, brightness, interface, and cover glass.
Optical Bonding Expertise
-Enhanced durability, visibility, and touch performance.
Embedded Board Design
-Complete display + touch + controller board solutions.
Ruggedization Capability
-Wide-temperature, anti-glare, anti-reflective, and waterproof solutions.
Strict Quality Control
-Reliable testing for touch accuracy, durability, and display consistency.
Mass Production Support
-Stable supply chain with scalable manufacturing capacity.
Application Engineering
-Fast technical support for industrial, medical, automotive, and smart device integration.
